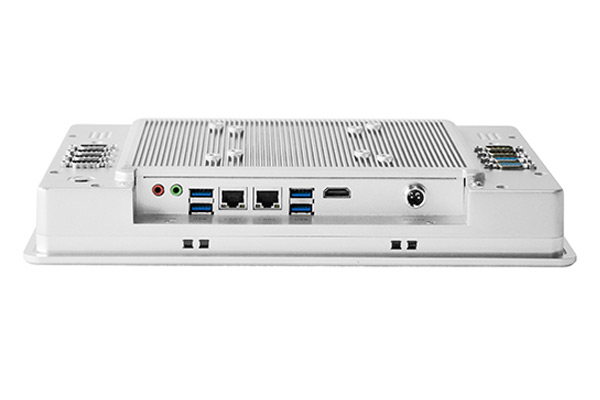

capacitive touch panel pc
12 panel pc

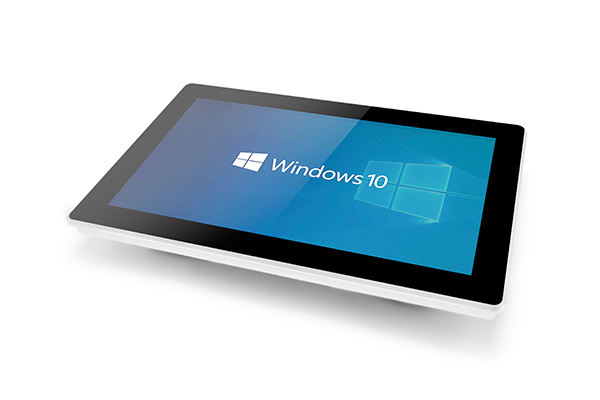

12 inch j1900 core i3 i5 i7 capacitive panel pc5

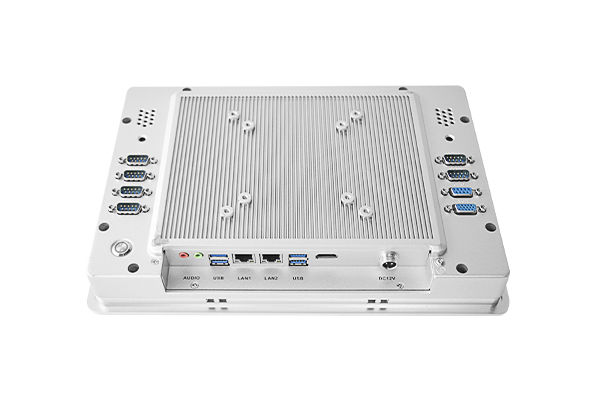

12 inch j1900 core i3 i5 i7 capacitive panel pc4

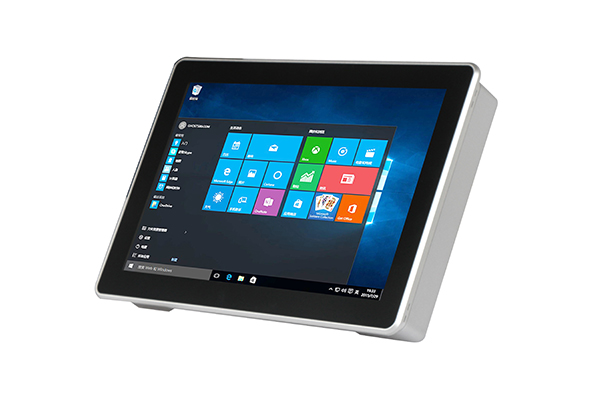

12 inch j1900 core i3 i5 i7 capacitive panel pc3
capacitive touch panel pc details 1
capacitive touch panel pc details 2
capacitive touch panel pc details 3
capacitive touch panel pc
12 panel pc
12 inch j1900 core i3 i5 i7 capacitive panel pc5
12 inch j1900 core i3 i5 i7 capacitive panel pc4
12 inch j1900 core i3 i5 i7 capacitive panel pc3
capacitive touch panel pc details 1
capacitive touch panel pc details 2
capacitive touch panel pc details 3

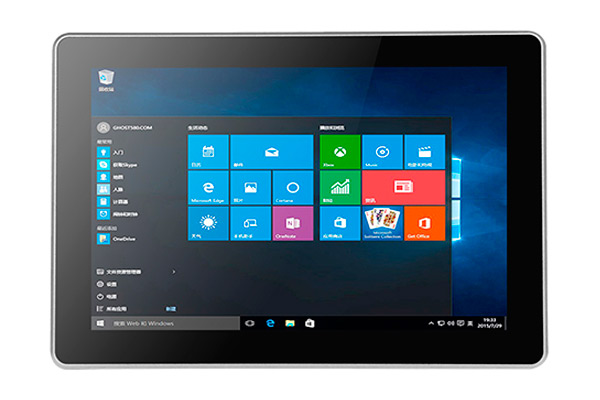

12 Inch J1900 Core I3/I5/I7 Capacitive Panel PC

TQ12

Industrial Grade CPU Gen 6th CPU J1900/3855/3865/Core I3/I5/I7;

PCAP Multi-touch IPS Rugged 12.1" Projective Capacitive Widescreen Display;

4*USB+6*COM with Other Various Ports;

IP65 Rated Front Panel with Fanless Design.


Get A Quote
Video Spec Download
Specification
Dimension
Accessories

Specification of 12 inch J1900 Core I3/I5/I7 Capacitive Touch Panel PC

System Hardware
CPUSupport intel J1900/J3855/3865/Core I (6/7 th Gen.) series processor
Chipset/
MemoryUp to 8GB
StorageUp to 512GB
Watchdog255 timer levels, setup by software
Display
LCD Type12.1" TFT-LCD
Max. Resolution1280*800
Luminance350 cd/m2
Viewing Angle160°(H)*145°(V)
Contrast Ratio800:1
Backlight Life-Time50000 hr(min.)
Touchscreen
Touchscreen TypeMulti-touch projected capacitive
Light Transmission>85%
Hardness6H
OS
OSWindows 7, Windows 10, Linux
I/O Ports
USB3*USB 2.0 + 1*USB3.0 (Celeron J1900)
4*USB 3.0 (J3855U/3865U/Core i(6/7th Gen)
Serial port6*RS232 (1*RS422/RS485 optional )
LAN2* RJ45 Gigabit Ethernet (Intel I211-AT)
Audio1*Line-out, 1*Mic-in
Video1*HDMI, 1*VGA
GPIO4In/4Out
Expansion Slot1*Mini PCIe (Wifi/BT/3G/4G optional)
Power
Power Input9~24V DC Input (9~36V DC optional), 12V/5A power adapter
Power Consumption/
Environment
Operating Temp.0℃~50℃, with airflow
Storage Temp.-30℃~70℃
Humidity95% @40℃, non-condensing
IP RatingFront panel IP65
Shock Protectionacceleration 10G/11ms
Vibration Protection5-19Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration
Certificate
Certificate/
Mechanical
Dimension (W x H x D)308.6*210.8*52.5mm
Weight2.12kg
ColorSilver
MountingVESA mounting: 100*100mm
Panel mounting: 213*132mm
Dimensions

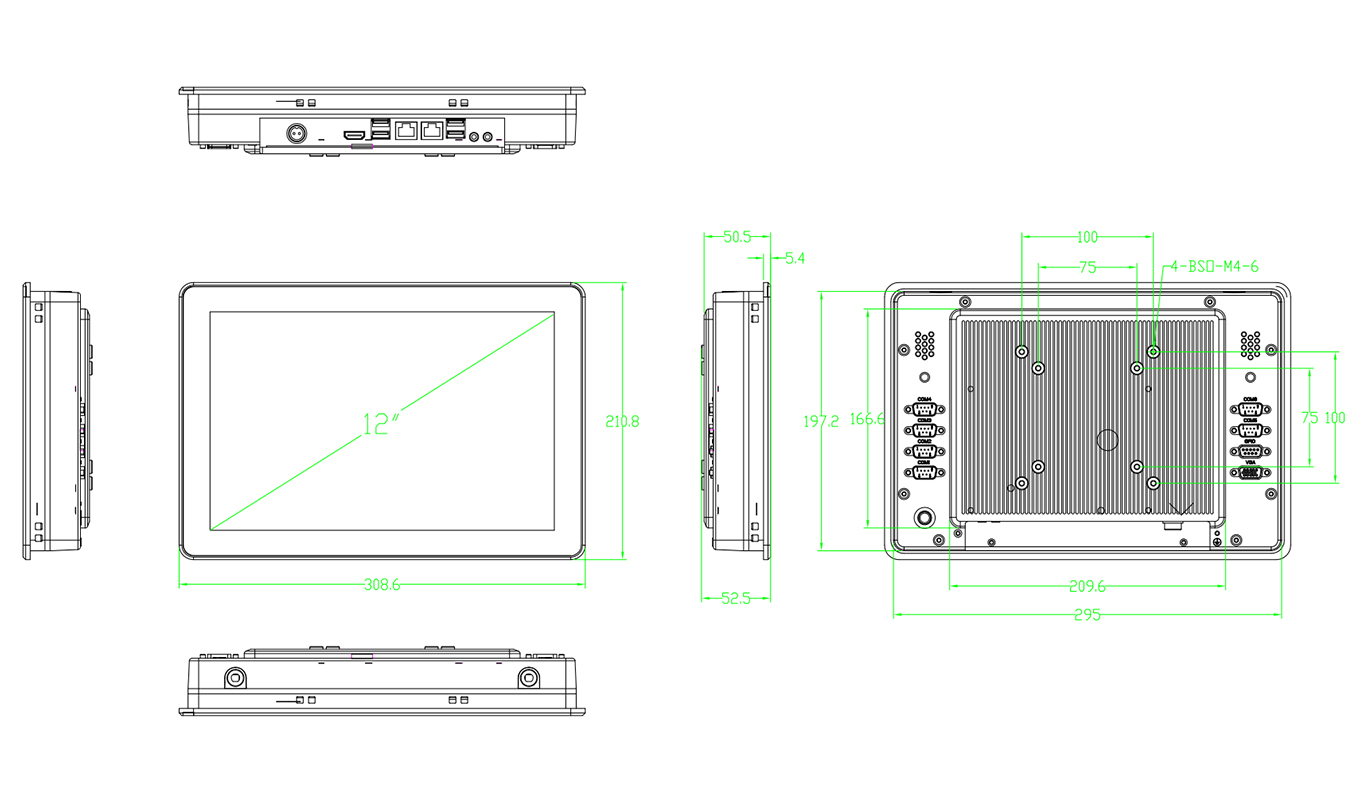

Dimension of 12 inch J1900 Core I3/I5/I7 Capacitive Touch Panel PC

Dimension of 12 inch J1900 Core I3/I5/I7 Capacitive Touch Panel PC

Accessories of 12 inch J1900 Core I3/I5/I7 Capacitive Touch Panel PC

Packing List

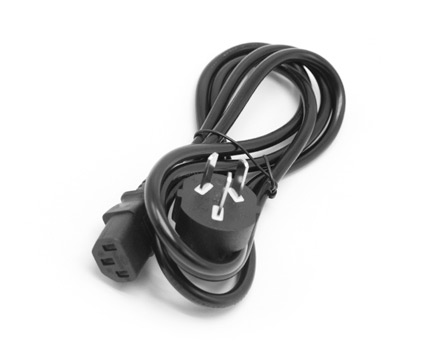

power supply of capacitive touch screen pc
power supply of capacitive touch screen pc

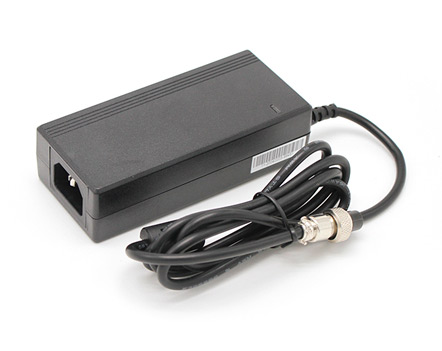

power adapter of 12 panel pc
power adapter of 12 panel pc

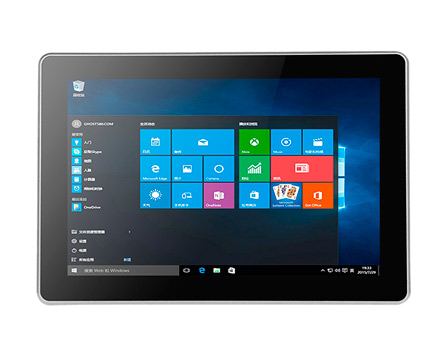

device of 12 panel pc
device of 12 panel pc
