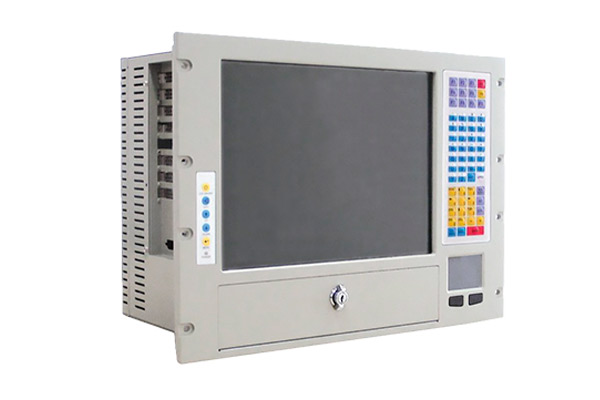

19-inch, 8U standard rack integrated workstation, high-strength aluminum alloy structure;
15" TFT high-brightness LCD liquid crystal display;
custom rackmount pc can be assembled with PICMG1.0 and PICMG1.3 standard backplanes and full-length cards;
One 5.25" CD-ROM drive space, two 3.5" hard disk space;
Built-in touch mouse and membrane keyboard; There are 2 standard USB ports on the front of the box;
It can be installed in a standard 19" industrial cabinet;
System control: the reset button and power switch are located in the small door on the front panel;
Status indication: There are hard disk and power LED lights in the small door on the front panel.

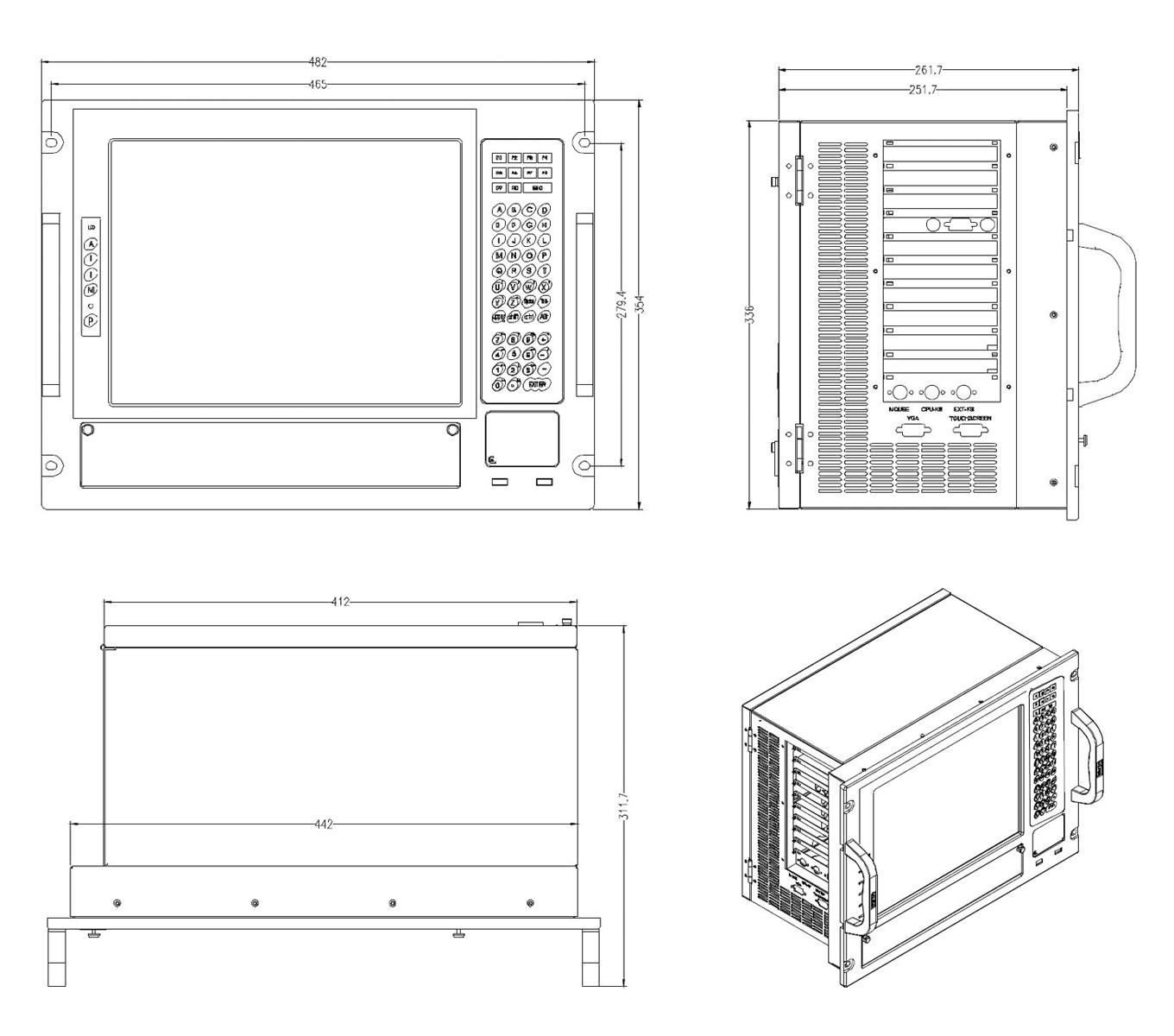

Dimensions (height x width x depth) 482 mm × 354 mm × 262 mm show
Screen: 15-inch high-brightness LCD screen
Resolution: 1024*768 @60HZ
Touch screen: Optional USB or RS232 touch screen
Operability: The panel is equipped with a touch mouse and membrane keyboard, with 59 input keys, including 10 definable function keys.
Color: industrial white or industrial gray
Can be assembled with: PICMG1.0 and PICMG1.3 standard backplanes and standard full-length cards
Material: 10mm thick high-strength aluminum alloy panel, surface drawing oxidation treatment
Storage: One 5.25" CD-ROM space, two 3.5" mechanical hard disk space
Power supply: with standard industrial ATX/AT power supply
Anti-vibration: 5-17Hz, 0.1" double peak displacement; 17-640Hz, 1.5G peak-to-peak acceleration
Shock resistance: 10G peak-to-peak acceleration, lasting 11ms in the X, Y, and Z-axis directions
Working environment: 0℃~50℃; 5%~90% (non-condensing state)
Storage environment: -20℃~60℃; 5%~90% (non-condensing state)
Dimensions (height x width x depth) | 482 mm × 354 mm × 262 mm |
show | |
Screen | 15-inch high-brightness LCD screen |
Resolution | 1024*768 @60HZ |
Touch screen | Optional USB or RS232 touch screen |
Operability | The panel is equipped with a touch mouse and membrane keyboard, with 59 input keys, including 10 definable function keys. |
Color | industrial white or industrial gray |
Can be assembled with | PICMG1.0 and PICMG1.3 standard backplanes and standard full-length cards |
Material | 10mm thick high-strength aluminum alloy panel, surface drawing oxidation treatment |
Storage | One 5.25" CD-ROM space, two 3.5" mechanical hard disk space |
Power supply | with standard industrial ATX/AT power supply |
Anti-vibration | 5-17Hz, 0.1" double peak displacement; 17-640Hz, 1.5G peak-to-peak acceleration |
Shock resistance | 10G peak-to-peak acceleration, lasting 11ms in the X, Y, and Z-axis directions |
Working environment | 0℃~50℃; 5%~90% (non-condensing state) |
Storage environment | -20℃~60℃; 5%~90% (non-condensing state) |
