RK3399 SOC Cortex dual-core A72 2.0GHz + quad-core A53 1.6GHz quad-core processor.

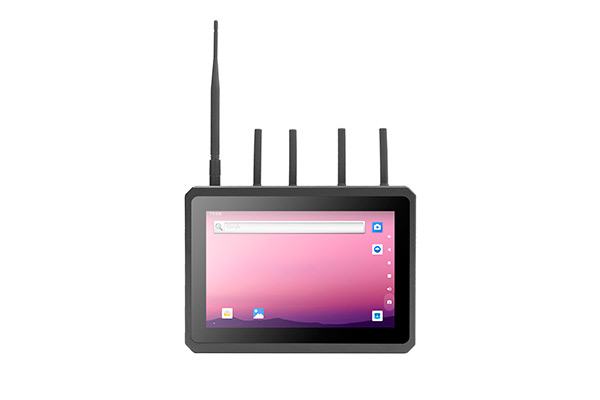

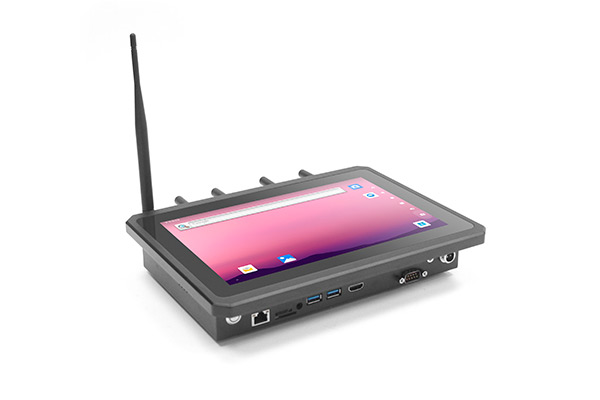

Industrial display, capacitive touch panel PC
4GB LPDDR3 memory.
USB3.0*2/RS232*4.
RK3399 SOC Cortex dual-core A72 2.0GHz + quad-core A53 1.6GHz quad-core processor.
Industrial display, capacitive touch screen and other industrial computer products from Geshem panel PC manufacturer.
4GB LPDDR3 memory.
USB3.0*2/RS232*4.
HD*1/Gigabit LAN*1.
Full Netcom 5G communication, dual-band WIFI+BT.
Fanless Design.
System Hardware | |
Chipset | RK3399 Dual Core A72 2.0GHz + Quad Core A53 1.6GHz Processor |
Memory | 4GB DDR3L |
Storage | 16GB EMMC (optional 32GB/64GB) |
Display | |
LCD Type | 10.1″ LCD |
Luminance | 350 cd/m2 |
Touch screen Type | Capacitive multi-touch screen |
Max. Resoltuion | 1280*800 |
Contrast Ratio | 800:1 |
OS. | |
OS. | Android 9 OS. |

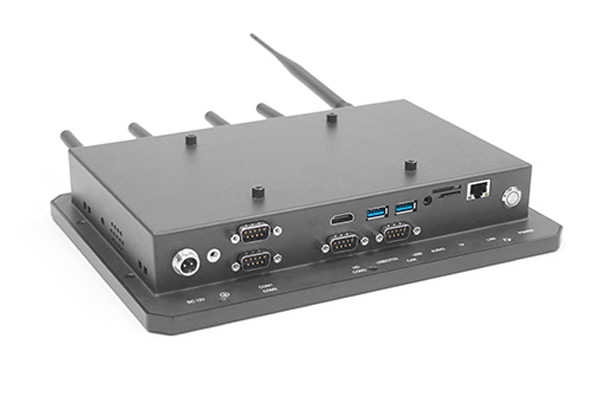

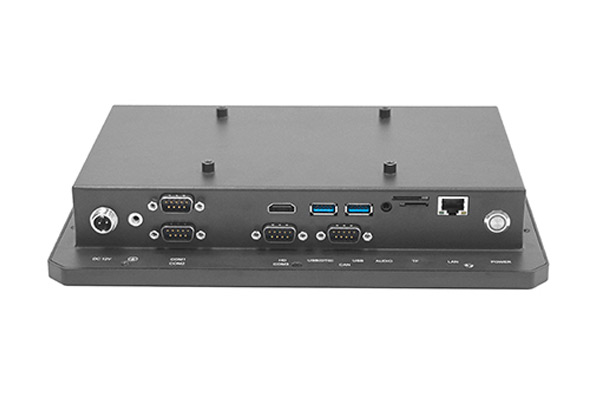

I/O Interface | |
USB | 2*USB 3.0 |
Serial port | 4*RS232 (1-2*RS485 optional) |
LAN | 1*1000M network interface |
Audio: | 1*2in1 Audio, 8 ohm 3W speakers*2 (optional) |
Video: | 1*HD |
Expand | 1*Mini PCIe |
SIM Card | Support 5G communication, with SIM card |
Power | |
Power | 12V DC aviation head input (9~36V wide voltage module optional) |
Environment | |
Operating Temperature | -10℃~60℃ Surface air flow |
Storage Temperature | -20℃~70℃ |
IP Rating | Front panel IP65 |
Humidity | 95% @40℃, non-condensing |
Shock Protection | 10g acceleration, 11ms cycle time |
Vibration Protection | 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration |
Reliability | MTBF≥30000h; MTTR≤0.5h |
Mechanical | |

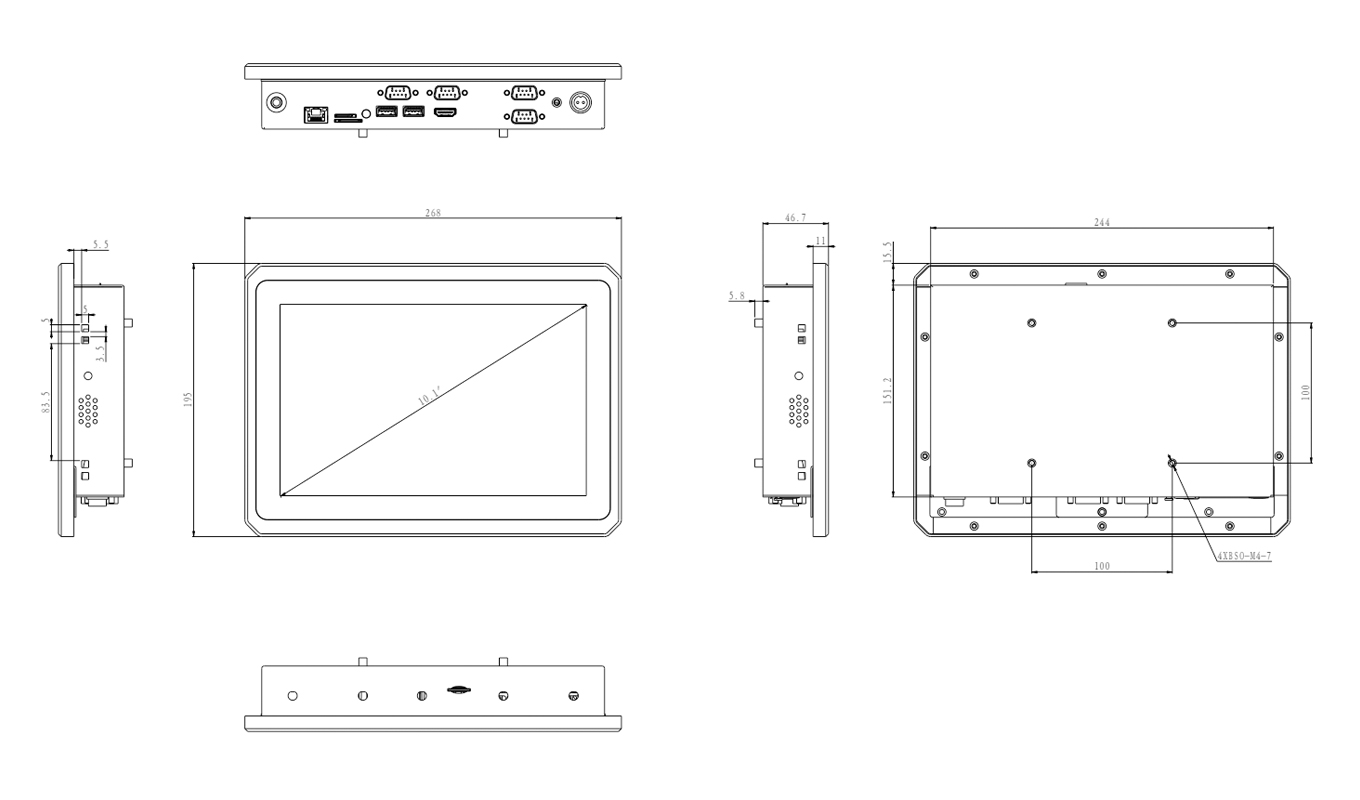

Dimension (W x H x D) | 268mm*195mm*46.7mm |
Weight | 2.14kg/2.9kg(N.W./G.W.) |
Material | All metal fanless design |
Color | Black |
Mounting | VESA installation: 100mm*100mm Embedded installation: 244mm*151.2mm |
