Intel® Celeron® CPU i5-8265U (optional i3/i7)
Industrial display, capacitive touch screen
Memory 8G + hard disk 128G

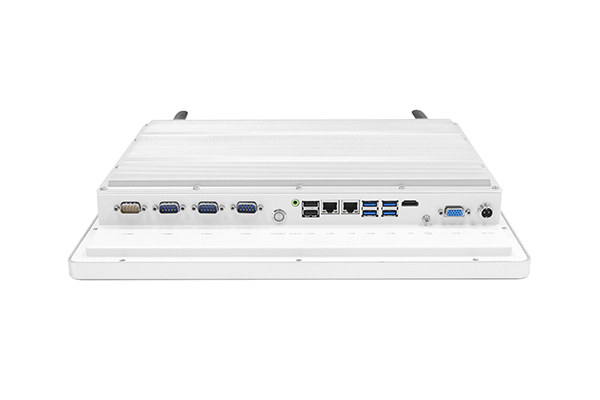

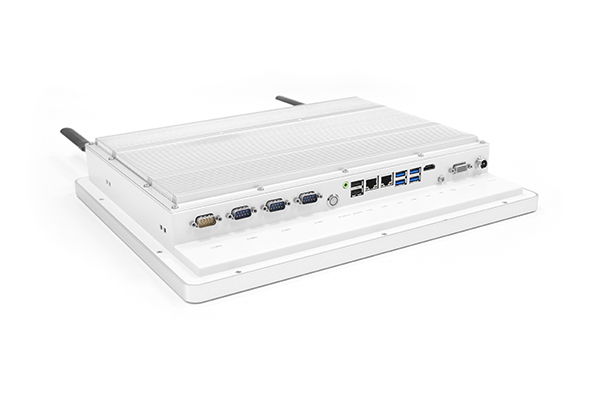

USB2.0*2/USB3.0*4/RS232*3/RS485*1
HD*1/VGA81/1000M LAN*2/Audio*1
Dual-band WIFI+BT
Fanless Design
Equipped with win10 professional system
Capacitive multi-touch screen from the panel PC manufacturer
USB2.0*2/USB3.0*4/RS232*3/RS485*1
HD*1/VGA81/1000M LAN*2/Audio*1
1*Mini PCIE(WIFI/BT)
| System Hardware | |
| CPU | Intel® Celeron® CPU i5-8265U 1.60 GHz-3.9GHz (i3/i7 optional) |
| Memory | 8G (optional 16GB) |
| Storage | 128G (optional 64/256/512GB/1TB) |
| Display | |
| LCD Type | 17.0″ LCD |
| Touchscreen | 17.0″ capacitive multi-touch screen |
| Max. Resoltuion | 1280*1024 |
| Luminance | 250 cd/m2 |
| OS | |
| OS | win10 Professional Edition X64 |
| I/O Interface | |
| Serial port | 3*RS232/1*RS485 with isolation |
| Expand | 1*Mini PCIE(WIFI/BT) |
| USB | 2*USB2.0/4*USB3.0 |
| LAN | 2*1000M network interface |
| GPIO | Optional 4IN/4OUT (occupies a COM port) |
| Video | 1*HD/1*VGA |
| Audio | 1*Line out |
| Power | |
| Power Input | Standard 12V/5A aviation plug adapter (optional wide voltage 9-36V DC input) |
| Environment | |
| IP Rating | Front panel IP65 |
| Operating Temp. | -10℃～60℃, with air flow |
| Storage Temp. | -20℃～70℃ |
| Vibration Protection | 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration |
| Shock Protection | 10g acceleration, 11ms period |
| Reliability | MTBF≥30000h; MTTR≤0.5h |
| Mechanical | |
| Material | All metal fanless design |

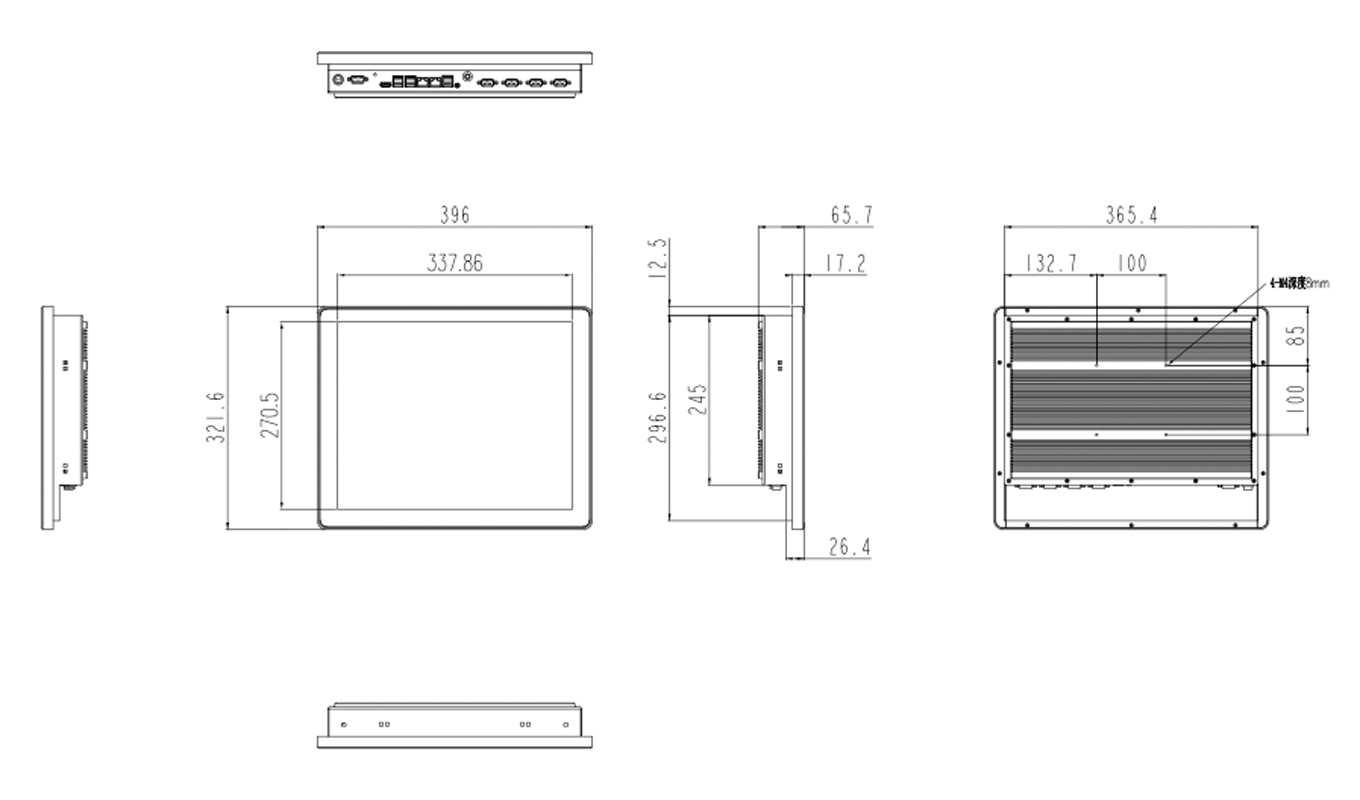

| Dimension (W x H x D) | 396mm*321.6mm*65.7mm |
| Weight | 6.25kg/6.75kg(N.W/G.W) |
| Color | black/silver |
| Optional Accessory | |
| Mounting | VESA installation: 100*100mm Embedded installation: 365.4mm*296.6mm |
