Intel® ElkhartLake J6412 Processor
Industrial display, capacitive touch screen
No front frame design
4GB DDR4+64GB SSD
2*USB3.0, 2*Gigabit LAN
1*DC power supply
Fanless Design
Capacitive multi-touch screen from panel PC manufacturers
2*USB3.0, 2*Gigabit LAN
2*1000M network interface
1*Mini PCIe (Wifi/BT/3G/4G optional)
Windows 10, Linux
| System Hardware | |
| CPU | Intel® ElkhartLake J6412 2.0GHz |
| Memory | 4GB DDR4 (8GB/16GB optional) |
| Storage | MSATA: 64GB, up to 512GB |
| Watchdog | Support hardware reset function (256 levels, 0~255 seconds) |
| Display | |
| LCD Type | 15.6″ LCD |
| Touchscreen | 15.6" capacitive multi-touch screen |
| Max. Resoltuion | 1366*768 |
| Luminance | 400 cd/m2 |
| OS | |
| OS | Windows 10, Linux |
| I/O Interface | |
| Serial port | |
| Expansion Slot | 1*Mini PCIe (Wifi/BT/3G/4G optional) |
| USB | 2*USB 3.0 |
| LAN | 2*1000M network interface |
| Power | |
| Power Input | 12V DC input, used with 6pin plug-in terminal line (9~36V wide voltage module optional) |
| Environment | |
| IP Rating | IP54 |
| Operating Temp. | -10℃～60℃ Surface air flow |
| Storage Temp. | -20℃～70℃ |
| Vibration Protection | 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration |
| Shock Protection | 10g acceleration, 11ms period |
| Reliability | MTBF≥30000h; MTTR≤0.5h |
| Certificate | |
| Certificate | CE, RHOS |
| Mechanical | |
| Material | Full metal fanless design without front frame |
| Dimension (W x H x D) | 392.2*241.5*48.6mm (without bracket) |
| Weight | 4.53kg/5.35kg (N.W./G.W.) |
| Color | black+silver grey |
| Optional Accessory | |

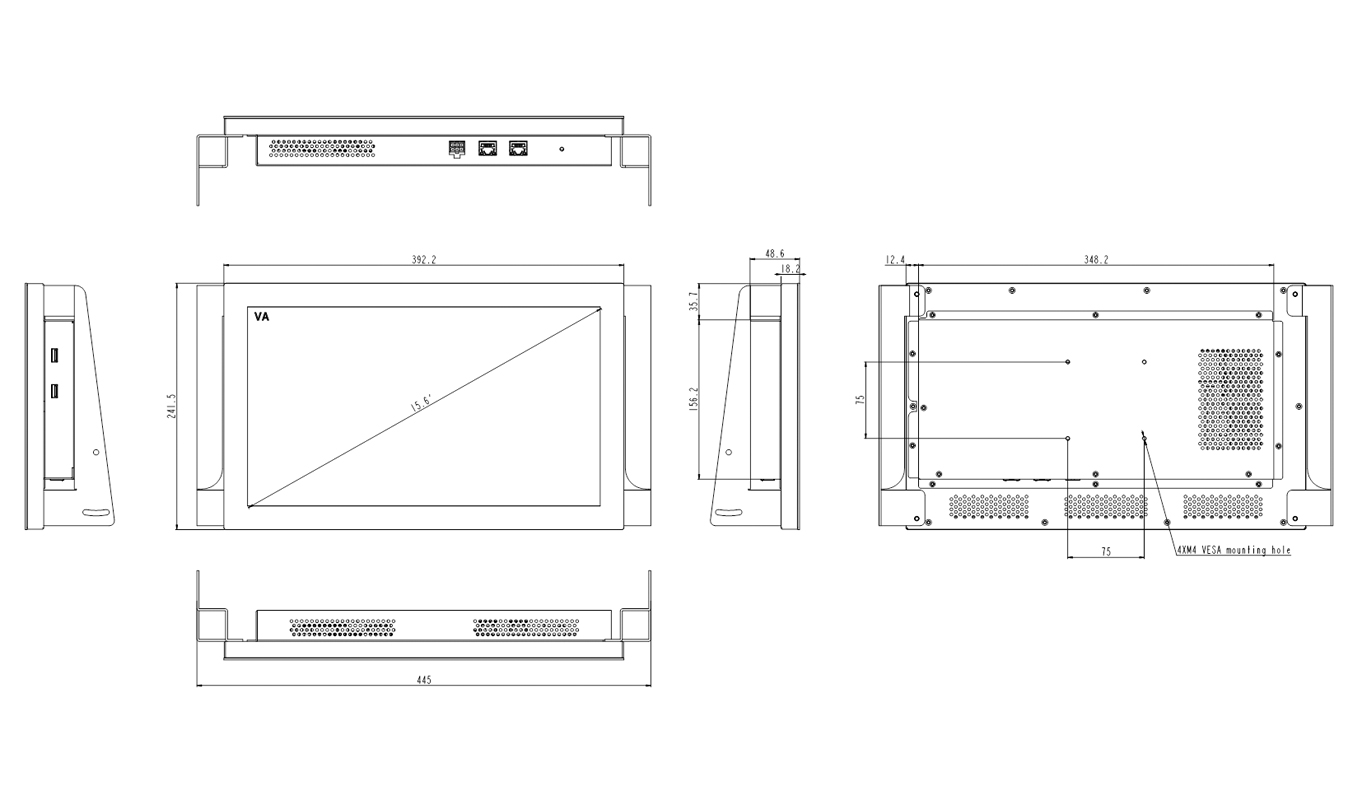

| Mounting | VESA installation: 100*100mm Bracket installation: (see dimension drawing) |
