Intel® Core™ 8th i3/i5/i7 processor
Industrial display, multi -point capacitor touch screen
Onboard 8GB LPDDR3 memory
Fanless design
Panel protection level can reach IP65
Intel® Core™ 8th i3/i5/i7 processor
Industrial display, multi -point capacitor touch screen
Onboard 8GB LPDDR3 memory
3*USB3.0, 1*USB2.0, 4*RS232
1*HD 1.4A, support 1080P@60Hz output, 1*VGA
2* Intel® Gigabit LAN, 1 of which supports Wake-on-LAN
Fanless design
Panel protection level can reach IP65
System Hardware | |
CPU | Intel® Core™ i5-8265u (optional i3-8145U /i7-8565U) |
Memory | Board 8GB LPDDR3 memory |
Storage | M.2, 128GB, up to 512GB |
Watchdog | Support hardware reset function (256 levels, 0~255 seconds) |
Display | |
LCD Type | 19″ LCD |
Touchscreen Type | Capacitive touch screen |
Max. Resoltuion | 1440*900 |
Luminance | 250 cd/m2 |
Contrast Ratio | 1000: 1 |
OS | |
OS | Windows10、Linux |

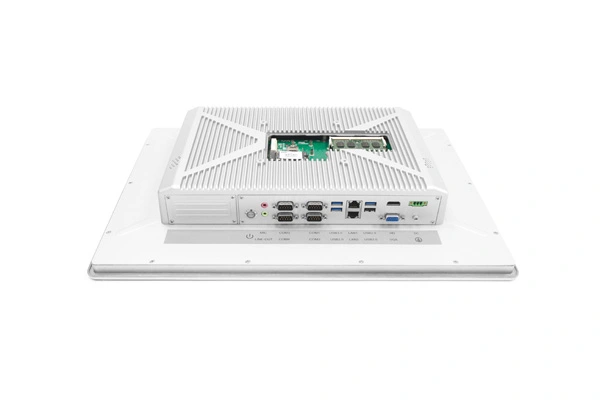

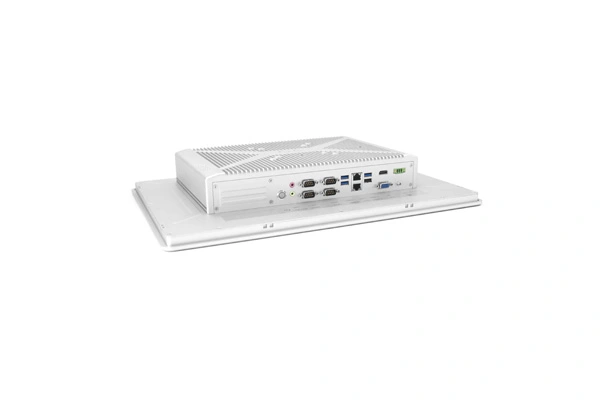

I/O Ports | |
USB | 3*USB3.0 +1*USB2.0 |
Serial Port | 4*RS232 (2*RS485 optional) |
Network Port | 2* RJ45 Gigabit network interface |
Audio | 1*Line-out+1*Mic-in |
Video | 1*HD+1*VGA |
DC Port | Phoenix terminal 3pin |
Mini PCIe | 1*Mini PCIe (4G/5G optional) |
SIM card | 1* Built-in SIM card holder |
M.2 | 1* M.2 NVME/SATA 2280/2242 SLOT |
WIFI | WIFI 802.11ac 2x2 1.73 Mbps |
BT | Bluetooth 5.0 |
Expansion port | PCIEX1/SMBUS/USB2.0X1/UART X2 |
Power | |
Power | 12V~ 28V wide pressure input (1*3pin phoenix terminal), standard 19V/4.74A adapter (extended POE module optional adapter) |
Environment | |
Vibration Protection | 5-17Hz/1.0mm amplitude; 17-200Hz/1.0g acceleration |
Shock Protection | 10g acceleration, 11ms cycle |
IP Rating | Front panel IP65 |
Operating Temp. | ‘-10℃~50℃ Surface air flow |
Storage Temp. | -20℃~70℃ |
Humidity | 95% @40℃, non-condensing |
Mechanical | |

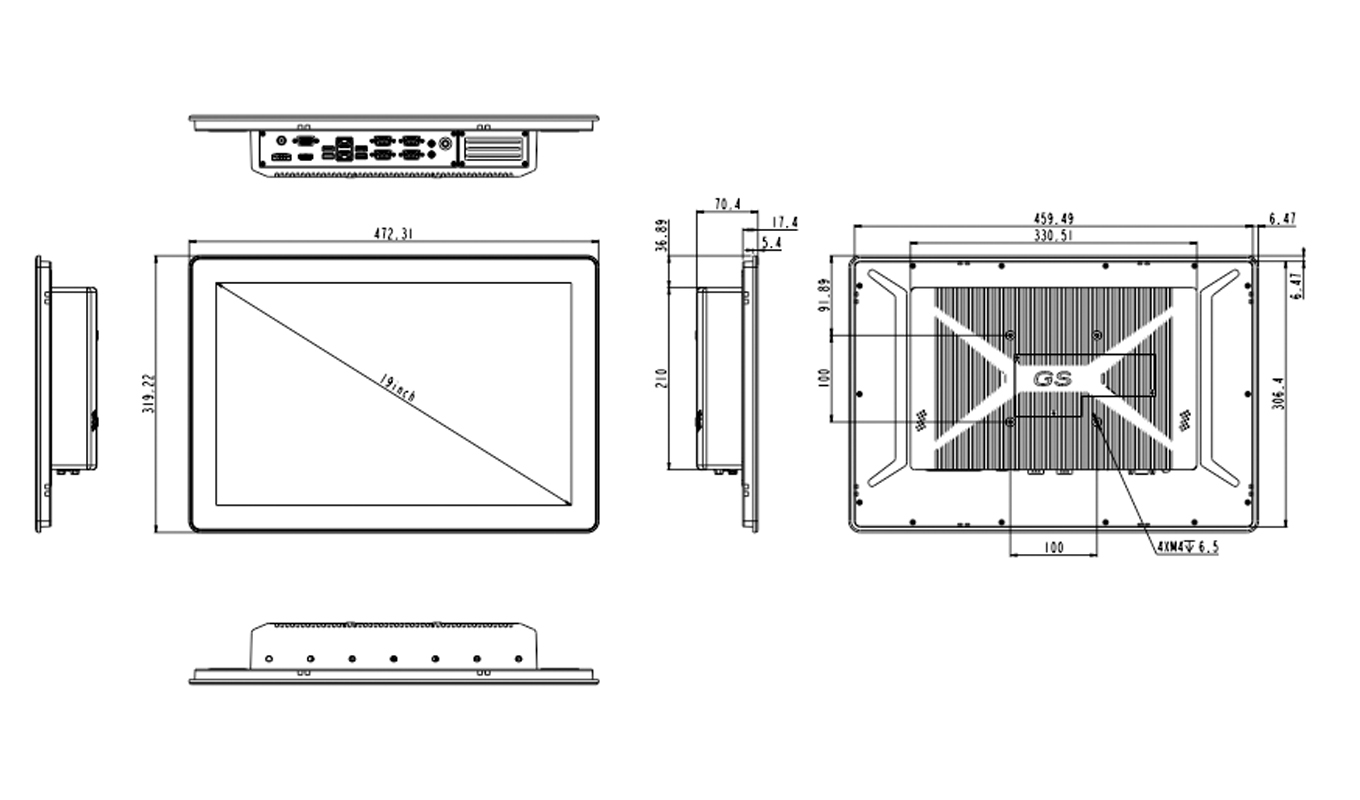

Dimension (W x H x D) | 472*320*70mm |
Weight | 6kg |
Color | Silver |
Material | Aluminum alloy |
Mounting | VESA mounting: 100*100mm Embedded installation: 459.49*306.4mm |
