RK3399 quad-core A53 1.8GHz processor.
Multi-touch and industrial grade display.
Onboard 4GB DDR3 memory.
RK3399 SOC Cortex dual-core A72 2.0GHz + quad-core A53 1.8GHz processor.
Multi-touch industrial grade capacitive touch screen from the industrial panel pc hersteller.
Onboard 4GB DDR3 memory.
IP65 protection level of the whole machine.
Reserve 8 M4 mounting holes.
Anti-Explosive panel PC China made type.
| System Hardware | |
| Chipset | RK3399 SOC Cortex dual-core A72 2.0GHz + quad-core A53 1.8GHz |
| Memory | 4GB LPDDR3 Onboard |
| Storage | 32G EMMC FLASH |
| Display | |
| LCD Type | 10.1″ LCD |
| Luminance | 350 cd/m2 |
| Touch screen Type | Industrial grade multi-point capacitive touch screen |
| Max. Resoltuion | 1280*800 |
| OS. | |
| OS. | Android7.1 |
| I/O Interface | |
| USB | 1*USB 2.0 with dust plug |
| Speaker | 1*External speaker |
| LAN | 1* RJ45 100M LAN port |
| Audio | 1*Mic input |
| Power | |
| Power | 10~36V external wide voltage module to DC 12V input, with 16m aerial plug power cord |
| Environment | |
| Operating Temperature | -10℃～60℃ Surface air flow |
| Storage Temperature | -20℃～70℃ |
| IP Rating | The whole machine is IP65 |
| Vibration Protection | 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration |
| Humidity | 95% @40℃, non-condensing |
| Shock Protection | 10g acceleration, 11ms cycle time |
| Reliability | MTBF≥30000h; MTTR≤0.5h |
| Mechanical | |

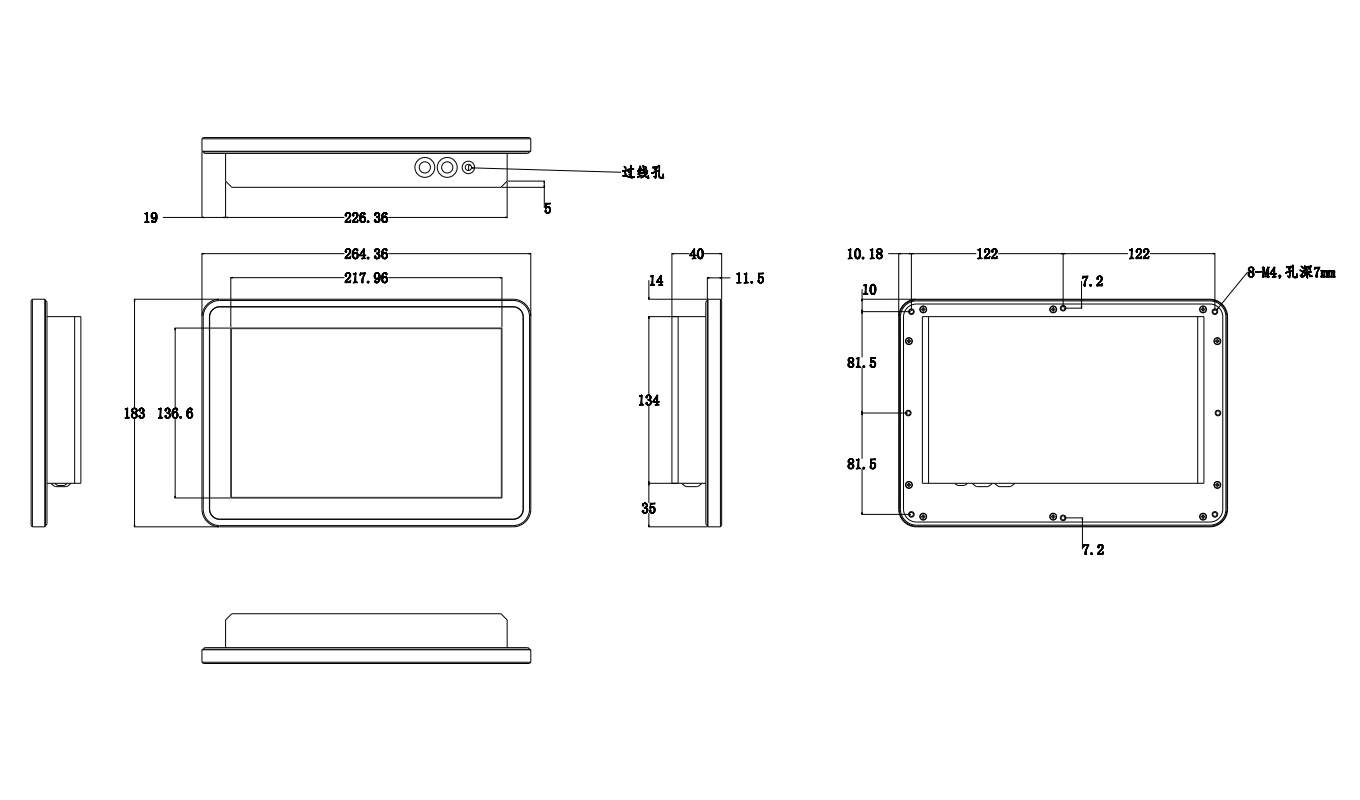

| Dimension (W x H x D) | 264*183*40mm |
| Weight | 1.5kg/2.5kg(N.W/G.W) |
| Material | All-metal aluminum alloy fanless design |
| Color | Front panel stainless steel primary color |
