Intel® Elkhart Lake™ 11th Celeron J6412
Industrial display, multi-point capacitive
touch screen
1*DDR4 SO-DIMM，up to 16GB
4*USB3.0、4*RS232(One of them
RS232/422/485 optional，default RS232）
Intel® Elkhart Lake™ 11th Celeron J6412
Industrial display, multi-point capacitive touch screen from panel PC manufacturers
1*DDR4 SO-DIMM，up to 16GB
4*USB3.0、4*RS232(One of them RS232/422/485 optional，default RS232）
1*HDMI、1*VGA(Internal pin)
2* Intel® Gigabit LAN, 1 of which supports Wake-on-LAN

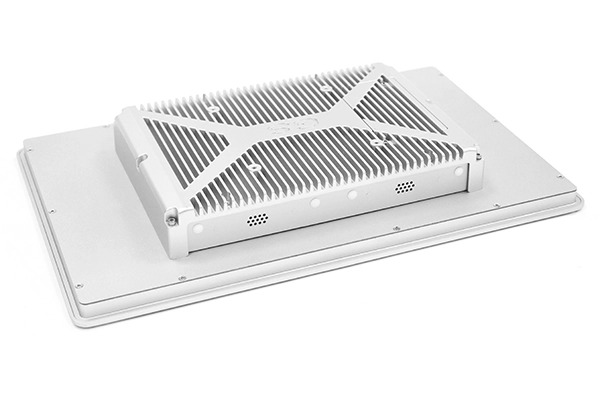

Fanless design
Panel protection level can reach IP65
| System Hardware | |
| CPU | Intel® Elkhart Lake™ 11th Celeron J6412 |
| Storage | 1*M.2 NVME SLOT(2280)（support PCIeX1）1*SATA HDD（7pin） |
| Memory | 1*DDR4 SO-DIMM，up to 16GB |
| Watchdog | Support hardware reset function (256 levels, 0~255 seconds) |

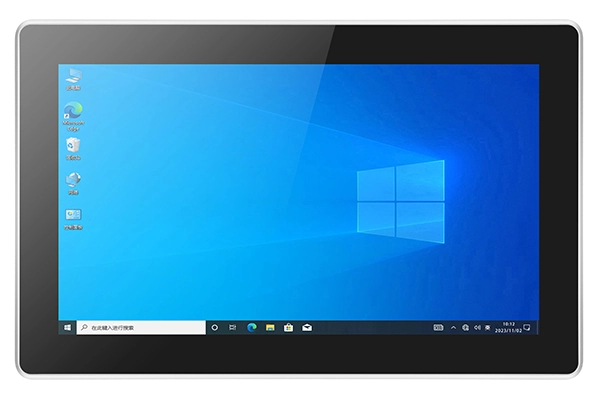

| Display | |
| LCD Type | 15.6″ LCD |
| Touchscreen Type | Capacitive touch screen |
| Max. Resolution | 1920*1080 |
| Luminance | 450 cd/m2 |
| Contrast Ratio | 800: 1 |
| OS | |
| OS | Windows10/11、Linux |

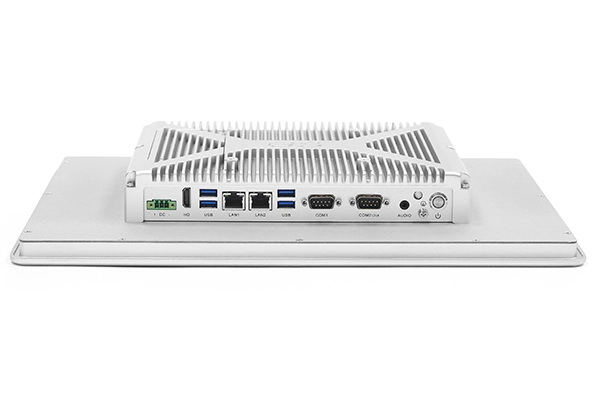

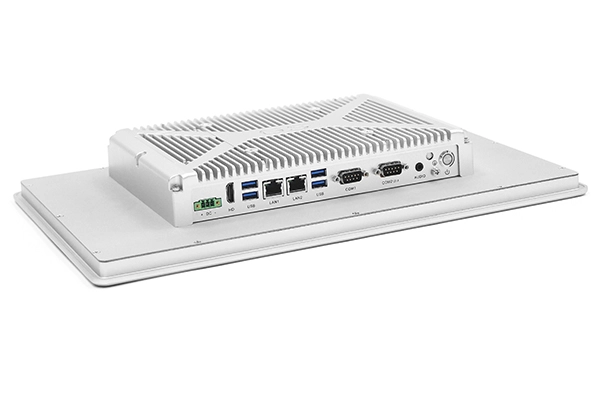

| I/O Ports | |
| USB | 4*USB3.0（4*USB2.0 built-in）(USB3.0-3、4 support 1.5A，1、2 support 0.9A) |
| COM | 1*RS232/422/485 Optional jumpers（default RS232）、3*RS232/485 Optional jumpers（default RS232）、（2*RS232built-in） |
| LAN | 2*1000M LAN port |
| Audio | 1*Line-out+1*Mic-in |
| Vedio | 1*HD，1*VGA Pin optional lead out |
| DC Port | Phoenix terminal 3pin |
| Mini PCIe | 1*Mini PCIe(WiFi+BT/4G/5G Optional，One out of three) |
| SIM Card | 1* Built-in SIM card holder |
| GPIO | NA |
| Power | |
| Power | 9V~32V wide voltage input, standard 12V/5A adapter |
| Environment | |
| Vibration Protection | 5-17Hz/1.0mm amplitude; 17-200Hz/1.0g acceleration |
| Shock Protection | 10g acceleration, 11ms cycle |
| IP Rating | Front panel IP65 |
| Operating Temp. | -10℃～50℃ Surface air flow |
| Storage Temp. | -20℃～70℃ |
| Humidity | 95% @40℃, non-condensing |

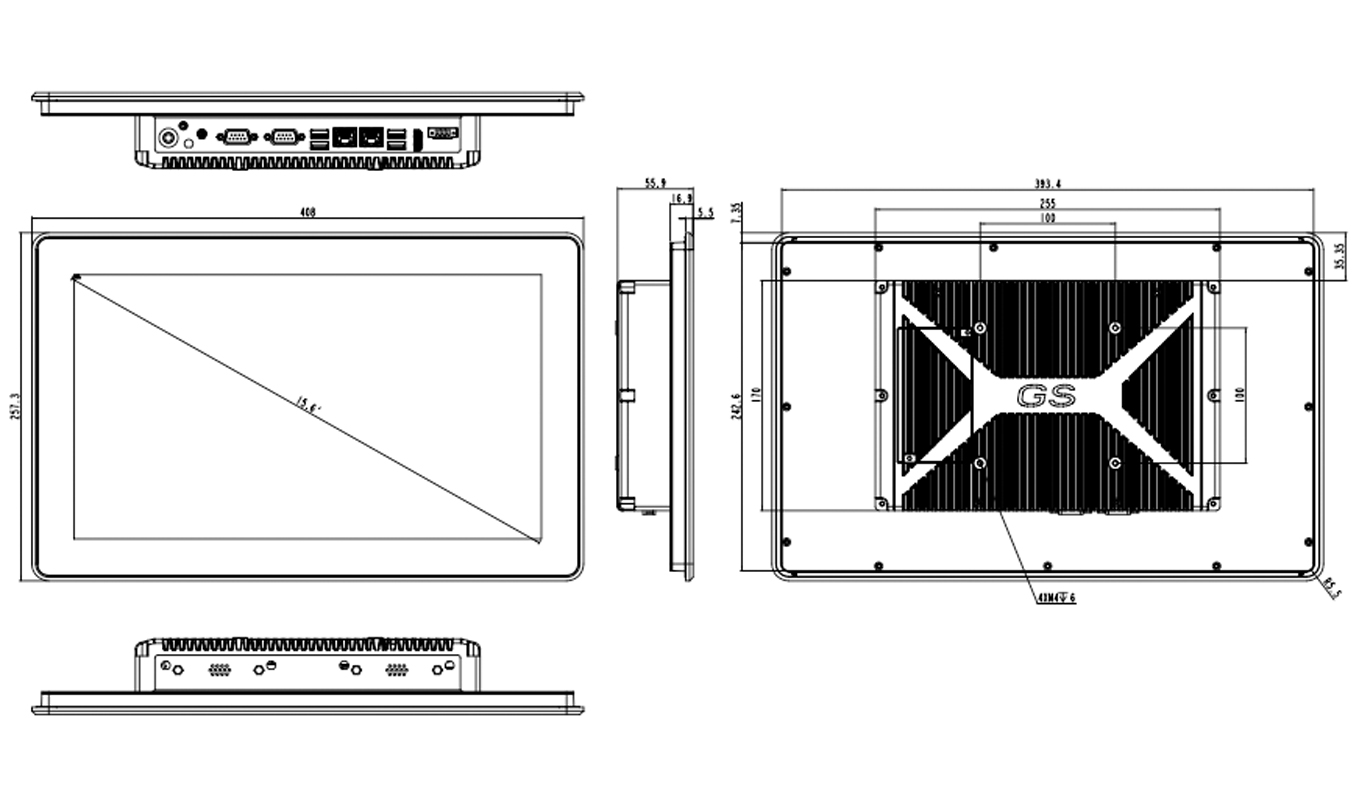

| Mechanical | |
| Dimension (WxHxD) | 408*257.3*55.9mm |
| Weight | 4.09Kg |
| Color | Silver |
| Material | Aluminum alloy |
| Mounting | VESA mounting: 100*100mm Embedded installation: 393.4*242.6mm |
