Intel® Elkhart Lake™ 11th Celeron J6412
Industrial display, multi-point capacitive touch screen
1*DDR4 SO-DIMM,up to 16GB
4*USB3.0、4*RS232(One of them
RS232/422/485 optional,default RS232)
Intel® Elkhart Lake™ 11th Celeron J6412
Industrial display, multi-point capacitive touch screen from industrial panel PC manufacturers
1*DDR4 SO-DIMM,up to 16GB
4*USB3.0、4*RS232(One of them RS232/422/485 optional,default RS232)
1*HDMI、1*VGA(Internal pin)
2* Intel® Gigabit LAN, 1 of which supports Wake-on-LAN

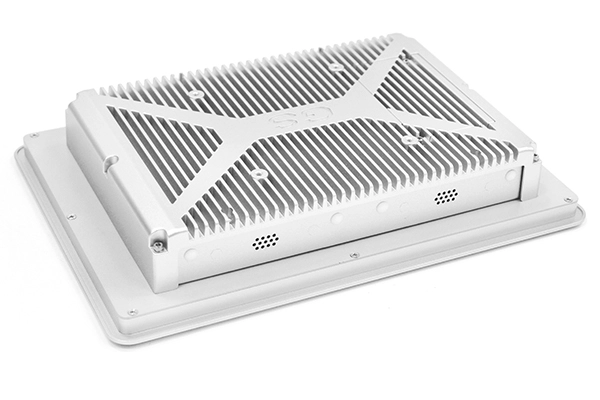

Fanless design
Panel protection level can reach IP65
System Hardware | |
CPU | Intel® Elkhart Lake™ 11th Celeron J6412 |
Storage | 1*M.2 NVME SLOT(2280)(support PCIeX1)1*SATA HDD(7pin) |
Memory | 1*DDR4 SO-DIMM,up to 16GB |
Watchdog | Support hardware reset function (256 levels, 0~255 seconds) |
Display | |
LCD Type | 12″ LCD |
Touchscreen Type | Capacitive touch screen |
Max. Resolution | 1280*800 |
Luminance | 400 cd/m2 |
Contrast Ratio | 1000: 1 |
OS | |
OS | Windows10/11、Linux |

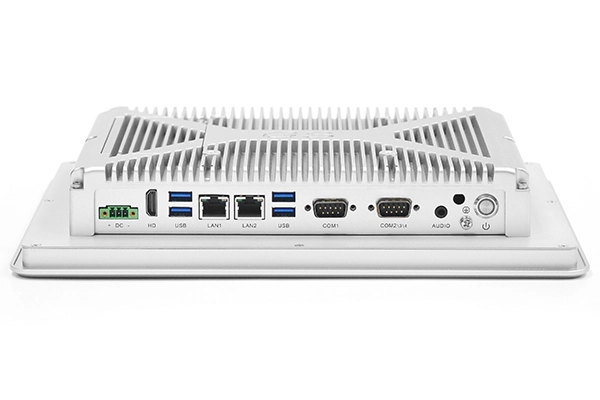

I/O Ports | |
USB | 4*USB3.0(4*USB2.0 built-in)(USB3.0-3、4 support 1.5A,1、2 support 0.9A) |
COM | 1*RS232/422/485 Optional jumpers(default RS232)、3*RS232/485 Optional jumpers(default RS232)、(2*RS232built-in) |
LAN | 2*1000M LAN port |
Audio | 1*Line-out+1*Mic-in |
Vedio | 1*HD,1*VGA Pin optional lead out |
DC Port | Phoenix terminal 3pin |
Mini PCIe | 1*Mini PCIe(WiFi+BT/4G/5G Optional,One out of three) |
SIM Card | 1* Built-in SIM card holder |
GPIO | NA |
Power | |
Power | 9V~32V wide voltage input, standard 12V/5A adapter |
Environment | |
Vibration Protection | 5-17Hz/1.0mm amplitude; 17-200Hz/1.0g acceleration |
Shock Protection | 10g acceleration, 11ms cycle |
IP Rating | Front panel IP65 |
Operating Temp. | -10℃~50℃ Surface air flow |
Storage Temp. | -20℃~70℃ |
Humidity | 95% @40℃, non-condensing |
Mechanical | |

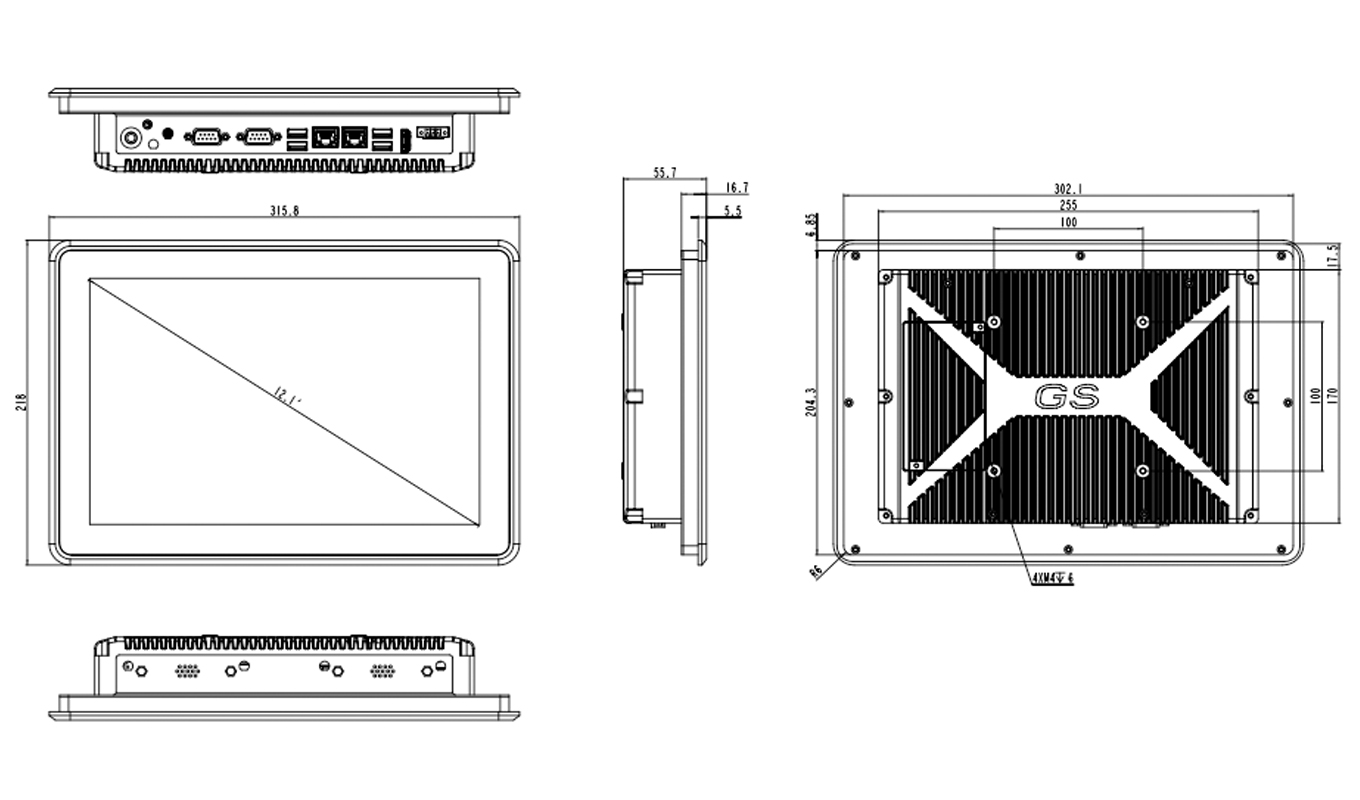

Dimension (WxHxD) | 315.8*218*55.7mm |
Weight | 2.8Kg |
Color | Silver |
Material | Aluminum alloy |
Mounting | VESA mounting: 100*100mm Embedded installation: 302.1*204.3mm |
