Intel® Bay Trail J1900 2.0GHz processor

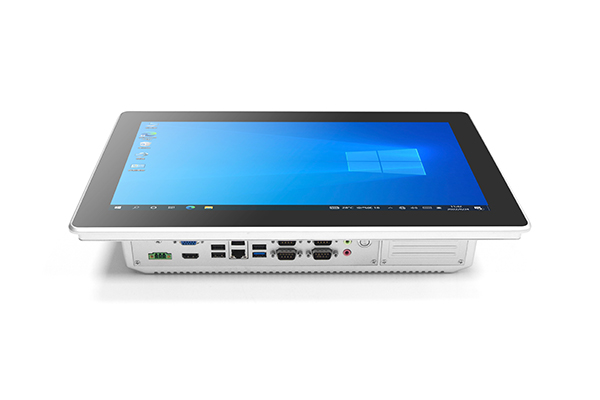

Industrial display, multi-point capacitive touch screen
4GB DDR3L memory, maximum support 8GB
1*USB3.0, 3*USB2.0, 4*RS232
1*HD display interface, 1*VGA
2* Intel® Gigabit LAN, 1 of which supports Wake-on-LAN

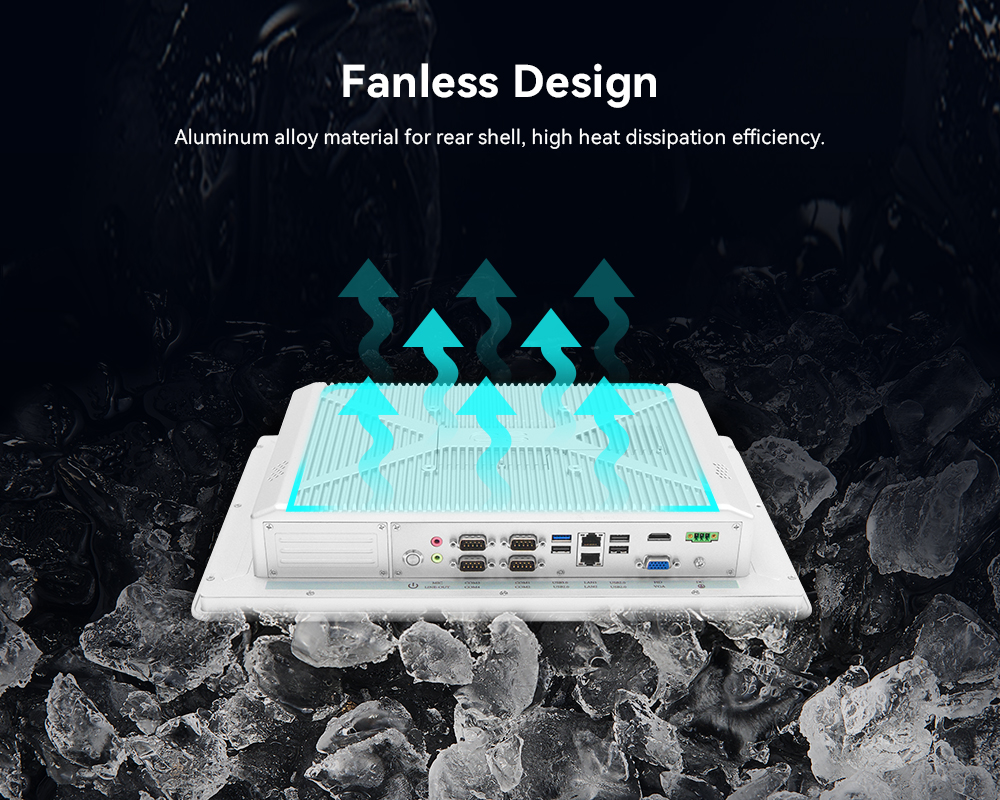

Fanless design
Panel protection level can reach IP65
Capacitive multi-touch screen from panel PC manufacturers
1*USB3.0, 3*USB2.0, 4*RS232
1*HD display interface, 1*VGA
2* Intel® Gigabit LAN, 1 of which supports Wake-on-LAN
Phoenix terminal 3pin
PCIE/LPC/I2C/2*RS232
1*Mini PCIe (4G version (WiFi+BT/3G/4G optional) or 5G version (5G only))
| System Hardware | |
| CPU | Intel® Bay Trail J1900 quad-core four-thread processor |
| Memory | 4GB DDR3L, up to 8GB |
| Storage | M.2, 128GB, up to 512GB |
| Watchdog | Support hardware reset function (256 levels, 0~255 seconds) |
| Display | |
| LCD Type | 15.6″ LCD |

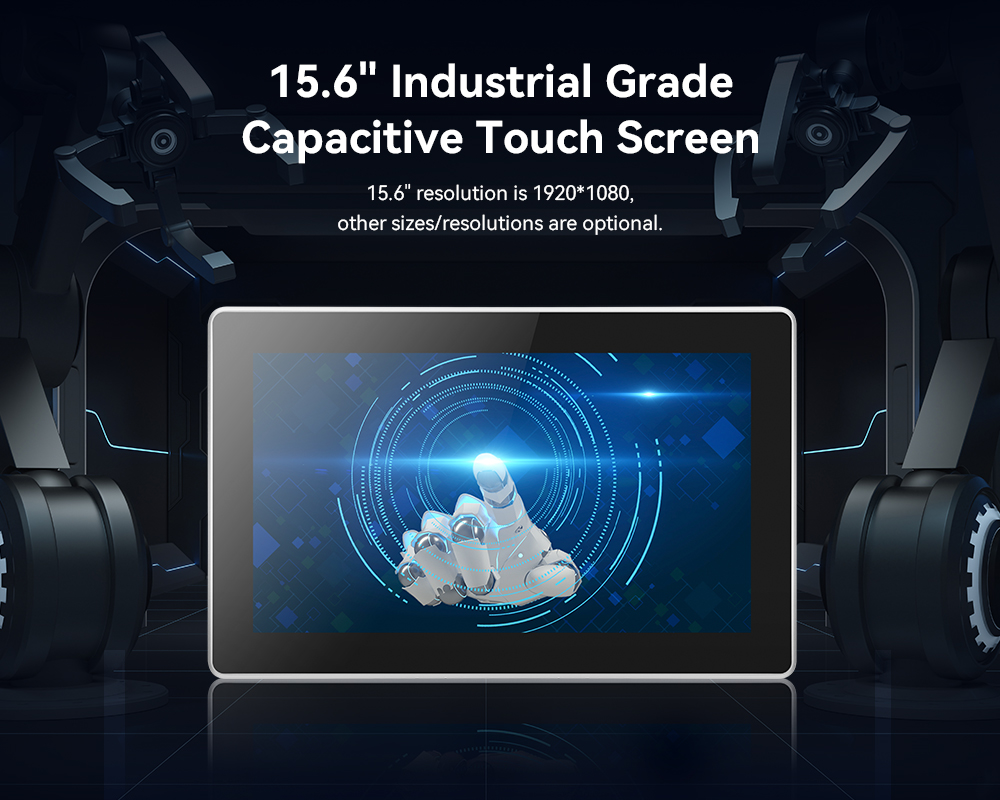

| Touchscreen | 15.6" capacitive multi-touch screen |
| Max. Resoltuion | 1920*1080 |
| Luminance | 450 cd/m2 |
| OS | |
| OS | Windows7/10、Ubuntu |
| I/O Interface | |
| Serial port | 4*RS232 (2*RS485 optional) |
| Expand | PCIE/LPC/I2C/2*RS232 |
| USB | 1*USB3.0 +3*USB2.0 |
| LAN | 2* RJ45 Gigabit network interface |
| GPIO | 1*GPIO(4in/4out) |
| Video | 1*HD+1*VGA |
| Audio | 1*Line-out+1*Mic-in |
| SIM card | 1* Built-in SIM card holder |
| M.2 | 1*M.2 SLOT(2242) |
| DC Port | Phoenix terminal 3pin |
| Mini PCIe | 1*Mini PCIe (4G version (WiFi+BT/3G/4G optional) or 5G version (5G only)) |
| Power | |
| Power Input | 9-32V wide voltage input, standard 12V/5A adapter (optional adapter for external expansion POE module) |
| Environment | |
| IP Rating | Front panel IP65 |
| Operating Temp. | -10℃～50℃, with air flow |
| Storage Temp. | -20℃～70℃ |
| Vibration Protection | 5-17Hz/1.0mm amplitude; 17-200Hz/1.0g acceleration |
| Shock Protection | 10g acceleration, 11ms cycle |
| Mechanical | |
| Material | Aluminum alloy |

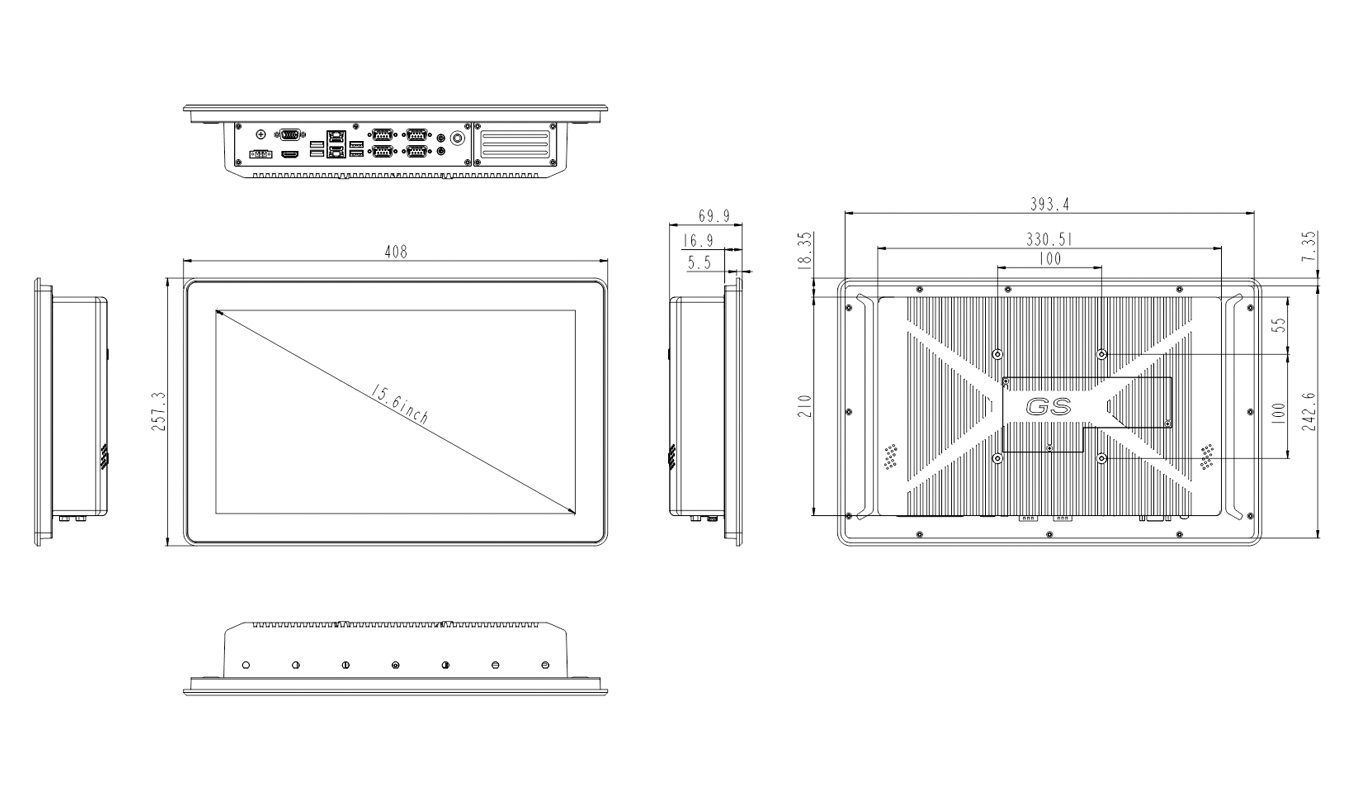

| Dimension (W x H x D) | 408*257.3*69.9mm |
| Weight | 4.09Kg |
| Color | silver |
| Mounting | VESA mounting: 100*100mm Embedded installation: 393.4*242.6mm |
