Support J1900/3855U/3865U/Core™ i (6/7th generation).

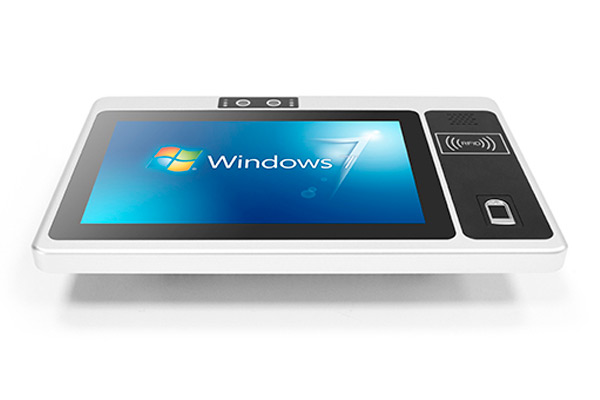

10.1" Industrial Grade display, Capacitive Multi-Touch Screen.
4GB DDR3L memory, up to 8GB.
4*USB, 1*HD.
Supports J1900/3855U/3865U/Core™ i (6/7th generation) CPU.
10.1" Industrial Grade display, Capacitive Multi-Touch Screen from panel PC suppliers.
4GB DDR3L memory, up to 8GB.
4*USB, 1*HD.
Dual Gigabit Ethernet ports (Intel® I211AT).

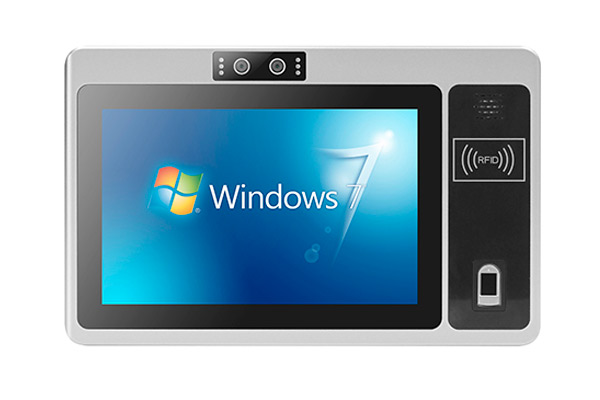

2 MP binocular face recognition camera.
Standard RFID, fingerprint module.
The whole machine has no fan design.
Front panel IP65 protection level.
| System Hardware | |
| CPU | J1900/3855U/3865U/Core™ i(6/7th generation) series processors |
| Memory | 4GB DDR3L, Max. support 8GB |
| Storage | MSATA: 128GB, Max. support 512GB |
| Watchdog | Support hardware reset function (256 levels, 0~255 seconds) |
| Display | |
| LCD Type | 10.1″ LCD |
| Luminance | 350 cd/m2 |
| Viewing Angle | 150° (H) * 150° (E) |
| Backlight Life | 30000 hr(min.) |
| Max. Resoltuion | 1280*800 |
| Contrast Ratio | 800:1 |
| Touch Screen | |
| Touchscreen Type | Capacitive touch screen |
| Light Transmission | ＞85% |
| Hardness | ≥6H |
| OS. | |
| OS. | Windows 7, Windows 10, Linux |
| I/O Interface | |

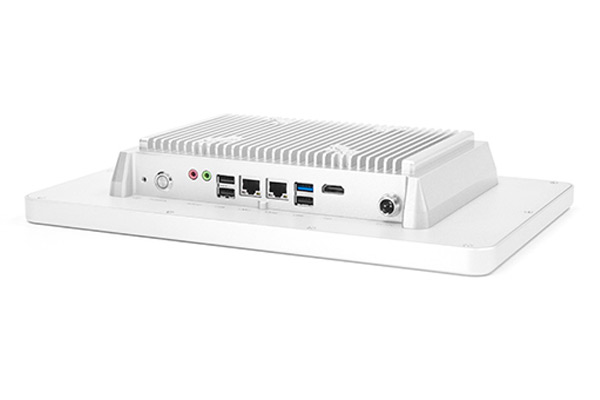

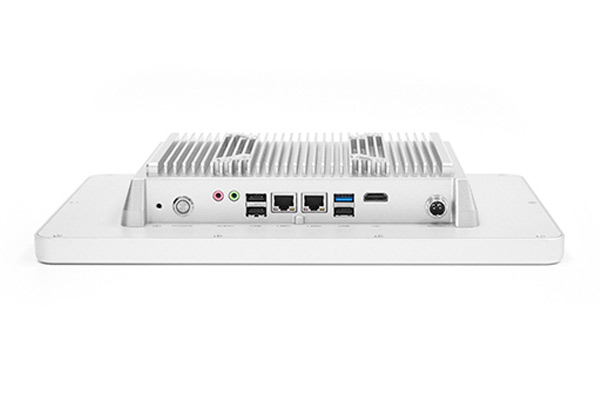

| USB | 3*USB 2.0 + 1*USB3.0 (Celeron® J1900) 4*USB 3.0 (3855U/3865U/6/7th Gen Core™ i) |
| LAN | 2*RJ45 Gigabit Ethernet ports |
| Audio | 1*Line-out+1*Mic-in |
| Video | 1*HD |
| GPIO | 4In/4Out (optional, occupy a serial port) |
| Expansion Slot | 1*Mini PCIe (Wifi/BT/3G/4G optional) |
| Extended Function | |
| Camera | 2 MP binocular face recognition camera |
| Fingerprint Module | Support fingerprint comparison, capacity 1000 pieces |
| RFID | Support ID card, IC card |
| Power | |
| Power | 9~24V DC input (optional 9~36V wide voltage input), standard 12V/5A power adapter |
| Environment | |
| Operating Temperature | -10℃～60℃ Surface air flow |
| Storage Temperature | -20℃～70℃ |
| IP Rating | Front panel IP65 (optional) |
| Humidity | 95% @40℃, non-condensing |
| Shock Protection | 10G/11ms |
| Reliability | MTBF≥30000h; MTTR≤0.5h |
| Vibration Protection | 5-17Hz/1.0mm amplitude; 17-200Hz/1.0g acceleration |
| Mechanical | |

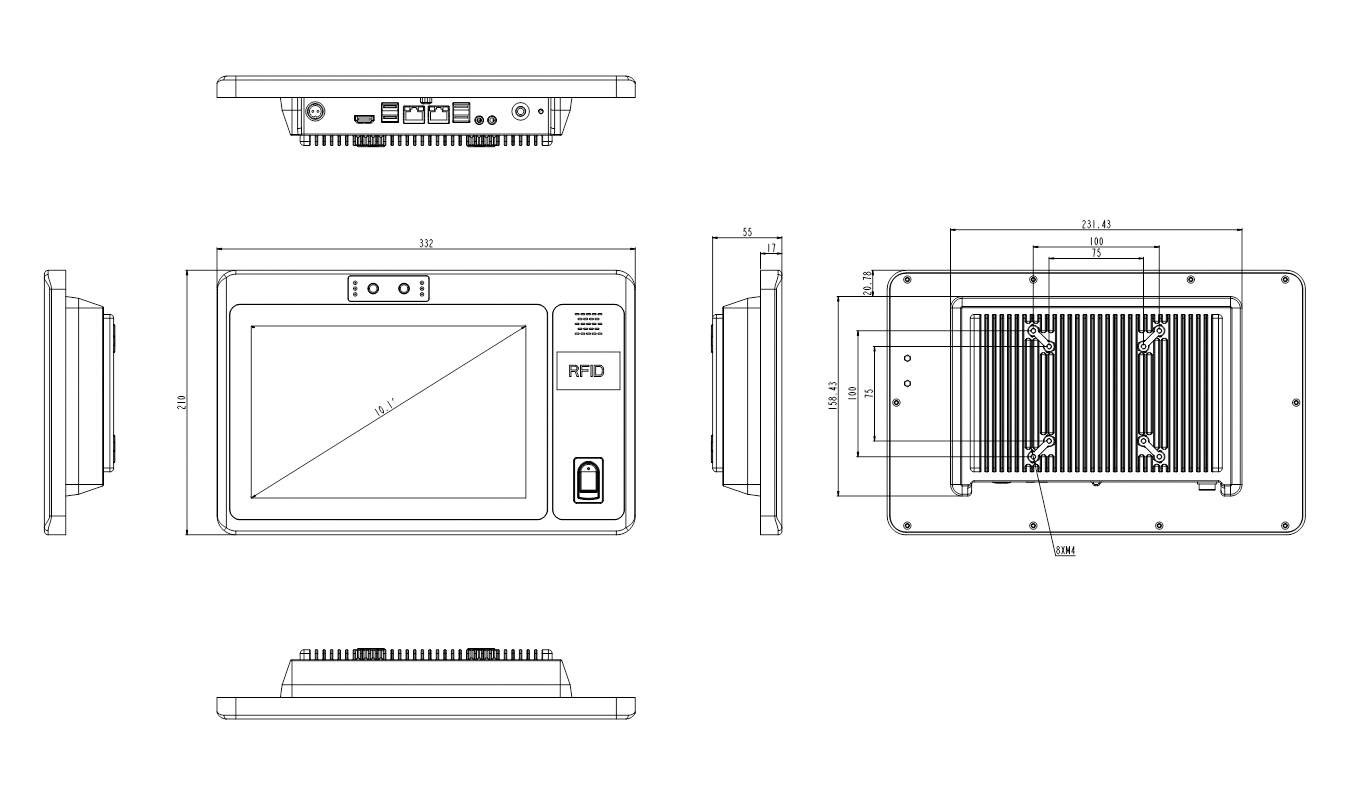

| Dimension (W x H x D) | 332*210*55mm |
| Weight | 2.76kg/3.9kg(N.W./G.W.) |
| Material | Aluminum alloy |
| Color | Silver |
| Mounting | VESA mounting: 100*100mm, 75*75mm |
