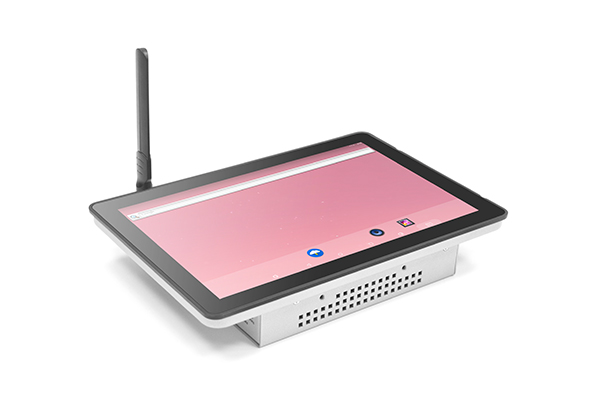

RK3399 Dual-core A72 2.0GHz + Quad-core A53 1.8GHz processor
Industrial display, capacitive touch screen
Memory 4GB, hard disk 16GB EMMC (optional 32GB/64GB)
USB2.0*5/USB3.0*1/RS232*2/RS485*1
HD*1/1000M LAN*1/Audio*3
RK3399 Dual-core A72 2.0GHz + Quad-core A53 1.8GHz processor
Industrial display, capacitive touch screen
Memory 4GB, hard disk 16GB EMMC (optional 32GB/64GB)
USB2.0*5/USB3.0*1/RS232*2/RS485*1
HD*1/1000M LAN*1/Audio*3
Dual-band WIFI+BT
Ultra-thin design, the thickness of the whole machine is 42mm
Fanless design
Equipped with Android 7.1 operating system
System Hardware | |
Chipset | RK3399 Dual-core A72 2.0GHz + Quad-core A53 1.8GHz processor |
Memory | 4GB LPDDR3 |
Storage | 16GB EMMC (optional 32GB/64GB) |
Display | |
Display screen | 10.1″ |
Luminance | 350 cd/m2 |
Touch screen Type | Capacitive multi-touch screen |
Max. Resoltuion | 1280*800 |
Contrast Ratio | 800:1 |
OS. | |
OS. | Android 7.1 OS. |
I/O Interface | |

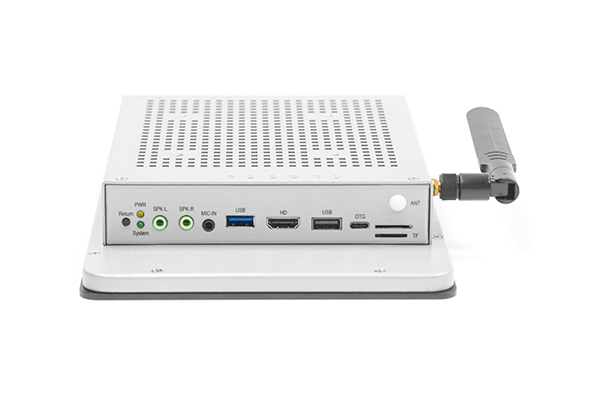

USB | 5*USB 2.0/1*USB3.0, 1*Type C(debugging) |

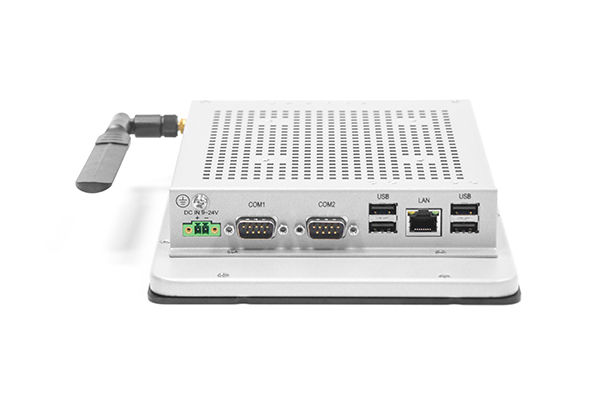

Serial port | 2*RS232/1*RS485 (COM2.1 4pin) |
LAN | 1*1000M network interface |
Audio: | 1*Audio, 2*Speaker, (PhoneJack interface, support 15W speaker) |
Video: | 1*HD |
Expand: | 1*TF |
WIFI: | Dual-band 2.4GHz+5.8GHz |
SIM Card | 1*SIM (used when Mini PCIE expands 4G module) |
Power | |
Power: | 12V input (2pin phoenix terminal) |
Environment | |
Vibration Protection | 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration |
Operating Temperature | -10℃~60℃ Surface air flow |
Storage Temperature | -20℃~70℃ |
IP Rating | Front panel IP65 |
Humidity | 80% @50℃, non-condensing |
Shock Protection | 10g acceleration, 11ms cycle time |
Reliability | MTBF≥30000h; MTTR≤0.5h |
Mechanical | |

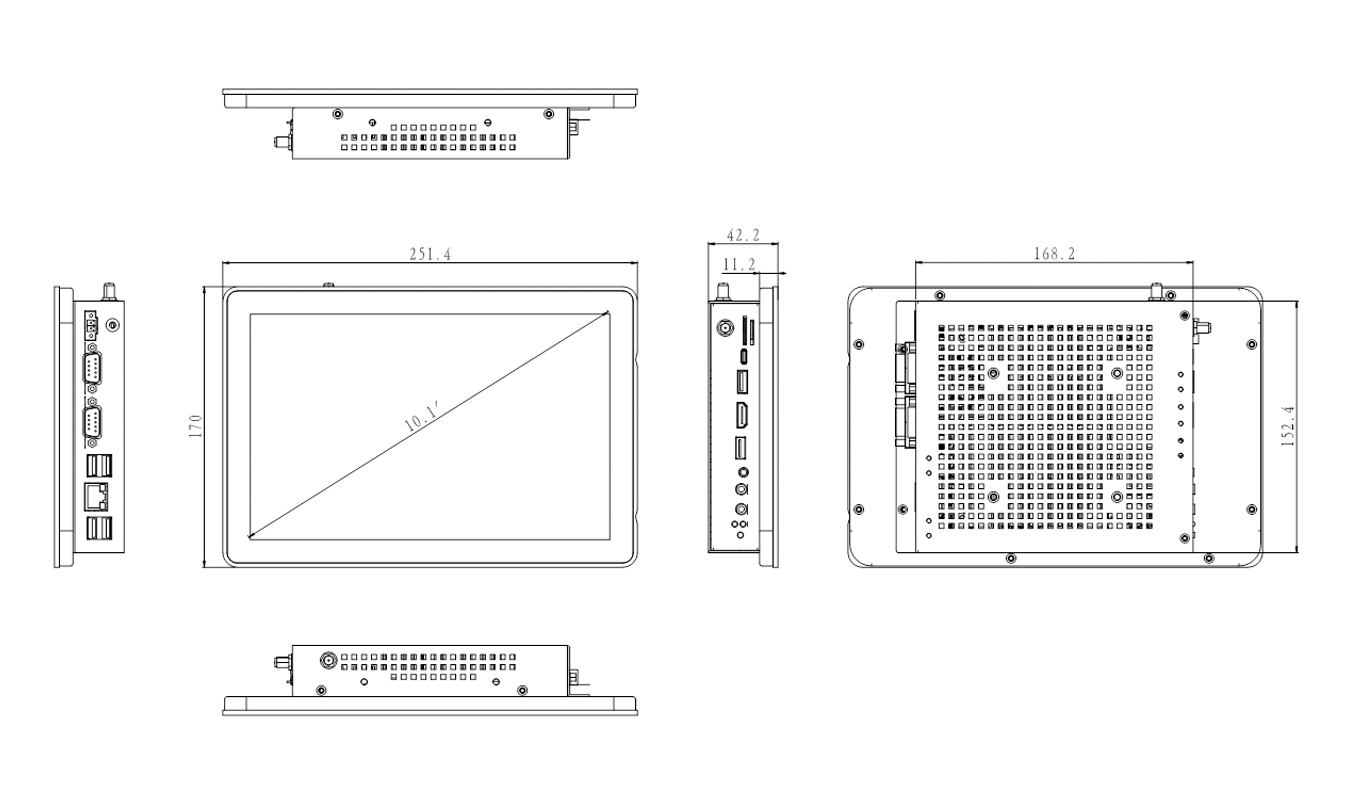

Dimension (W x H x D) | 251.4mm*170.0mm*42.2mm |
Weight | 1.3kg/1.8kg(N.W./G.W.) |
Material | All metal fanless design |
Color | black/grey |
Mounting | VESA installation: 100mm*100mm |
