RK3288 SOC Cortex-A17 Quad core @ 1.8GHz Max
Industrial display, capacitive touch screen
DDR3 onboard 2GB, optional 4GB
USB2.0*2/RS232*2
HD*1/Gigabit LAN*1/TF*1/Audio*1
RK3288 SOC Cortex-A17 Quad core @ 1.8GHz Max
Industrial display, capacitive touch screen from the industrial panel pc hersteller
DDR3 onboard 2GB, optional 4GB
USB2.0*2/RS232*2
HD*1/Gigabit LAN*1/TF*1/Audio*1
Dual band WIFI+BT, supporting power on and power on
Ultra thin fanless design
| System Hardware | |
| Chipset | RK3288 SOC Cortex-A17 Quad core @ 1.8GHz Max |
| Memory | 2GB (optional 4GB) |
| Storage | 16GB EMMC (optional 8GB/32GB) |
| Display | |
| Display screen | 10.1″ |
| Luminance | 350 cd/m2 |
| Touch screen Type | Capacitive multi-touch screen |
| Max. Resoltuion | 1280*800 |
| Contrast Ratio | 800:1 |
| OS. | |
| OS. | Android 7.1 OS. |
| I/O Interface | |
| USB | 2*USB 2.0 |
| Serial port | 2*RS232 |
| LAN | 1*1000M network interface |
| Audio: | 1*Audio |
| Video: | 1*HD |
| Expand | Dual band WIFI+BT |
| SIM Card | Optional |
| Power | |
| Power: | Standard 12V/5A aviation head adapter |
| Environment | |
| Vibration Protection | 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration |
| Operating Temperature | -10℃～60℃ Surface air flow |
| Storage Temperature | -20℃～70℃ |
| IP Rating | Front panel IP65 |
| Humidity | 95% @40℃, non-condensing |
| Shock Protection | 10g acceleration, 11ms cycle time |
| Reliability | MTBF≥30000h; MTTR≤0.5h |
| Mechanical | |

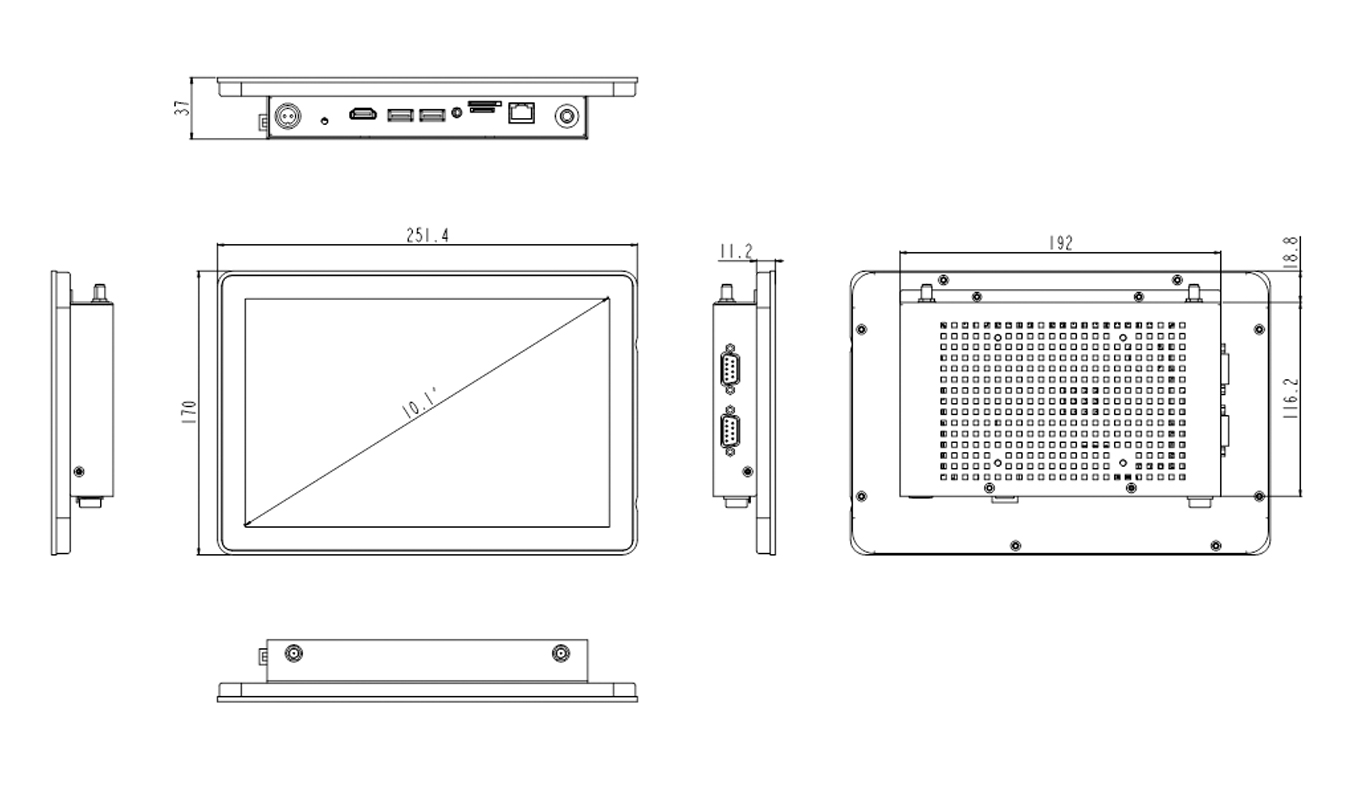

| Dimension (W x H x D) | 251.4mm*170mm*37mm |
| Weight | 1.35kg/1.85kg(N.W./G.W.) |
| Material | All metal fanless design |
| Color | Black sliver |
| Mounting | VESA installation: 100mm*100mm Embedded installation: 192mm*116.2mm |
