■ Intel® Intel® i3-7100U Low Power Processor
■ Sealed fanless dustproof design
■ 1*SO-DIMM DDR4
■ 3*USB+2*COM ports
■ 1*VGA+1*HD
■ 2*Gigabit Network Interface
■ 1*Audio
System Hardware | ||||||
Chipset | Intel® i3-7100U | Watchdog | 0-255 seconds/classification is realized by system software | |||
Ram | 1*SO-DIMM DDR4 | Power Supply | 12V DC input | |||
Storage | 1*MSATA | |||||
Hardware monitor | Voltage and CPU temperature monitoring | |||||
OS | ||||||
OS | Windows 10/11 、Linux | |||||
I/O Ports | ||||||
USB COM Ethernet Audio | 2*USB3.0 + 1* USB 2.0 1*RS232; 1*RS485 2* GbE RJ45 1000M (Realtek 8111H + Intel 1219-V Gigabit Ethernet ) 1*Audio | Display MiniPCIE | 1*VGA+1*HD WI FI + 4G LTE | |||
Environment | ||||||
Vibration Protection | 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g | Operating Temp. | -20℃~60℃ , with air flow | |||
acceleration | Storage Temp. | -40℃~70℃ | ||||
Shock Protection | acceleration 10g/11ms | Humidity | 95% @40℃ , non-condensing | |||
Reliability | MTBF≥50000h; MTTR≤0.5h | |||||
Mechanical | ||||||

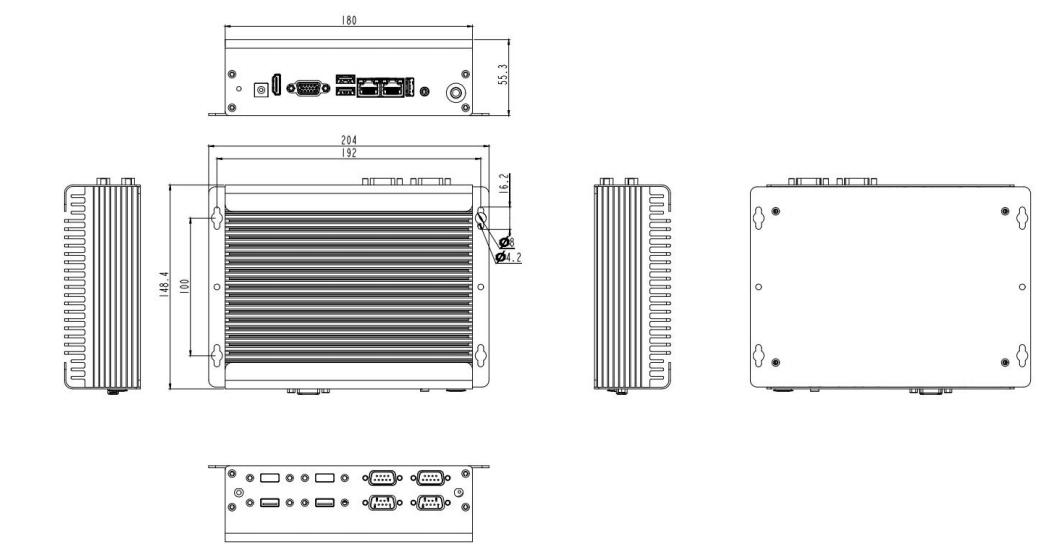

Dimension (LxWxH) 180mm*148mm*55mm Material Aluminum alloy fanless design | ||||||
Weight | 1.1kg/1.3kg(N.W/G.W) | Color | Black | |||
