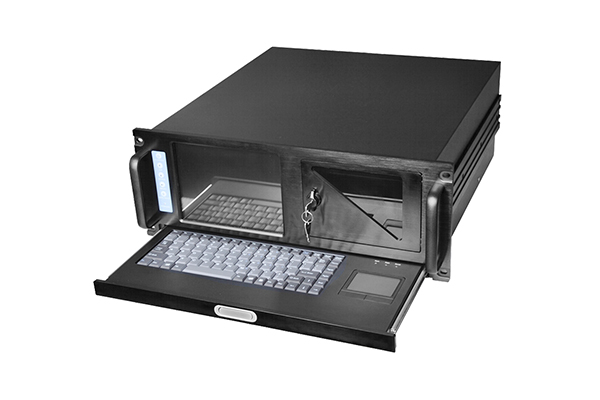

19"-4U standard rack-mount workstation;
8.4" TFT high brightness LCD screen;
rackmount custom industrial computers supports PICMG1.0 & PICMG1.3 standard backplane and full-size CPU card;
Two 5.25" CD-ROM bays, two 3.5" HD bays;
Built-in 88 keyboards and touchpad.

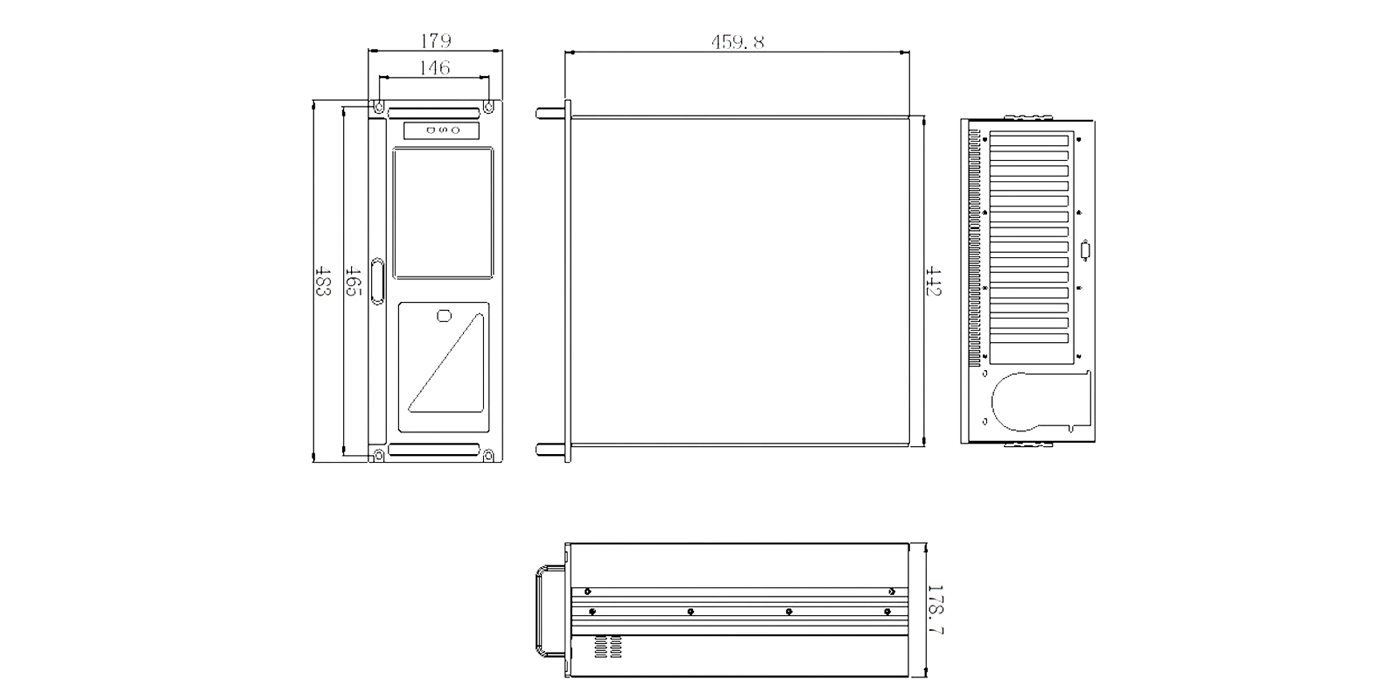

Dimension: 483 mm× 178.7mm×459 mm
Display Screen: 8.4" high brightness LCD screen
Resolution: 800 × 600 @75HZ
Operation: Withdrawing 88 keyboard and touchpad makes user input data conveniently
Color: Industrial Black
Supported boards: Supports PICMG1.0 & PICMG1.3 standard backplane and full-size CPU card
Panel: 10mm thick high-strength aluminum alloy panels, after drawing hard-anodized oxidation
Driver: Two 5.25" CD-ROM bays, two 3.5" HD bays, additional HD bays can be increased if need
Power Supply: Industrial Switching Power Supply
Anti-vibration: 5-17Hz/0.1mm amplitude; 17-640Hz/1.5g, acceleration
Anti-shock: 10g acceleration, 11ms duration
Operating temperature: 0℃～50℃; 5%～90% (non-condensing)
Storage environment: -20℃～60℃; 5%～90% (non-condensing)
| Dimension | 483 mm×178.7mm×459 mm |
| Display Screen | 8.4" high brightness LCD screen |
| Resolution | 800×600 @75HZ |
| Operation | Withdrawing 88 keyboards and touchpad makes user input data conveniently |
| Color | Industrial Black |
| Supported boards | Supports PICMG1.0 & PICMG1.3 standard backplane and full-size CPU card |
| Panel | 10mm thick high-strength aluminum alloy panels, after drawing hard-anodized oxidation |
| Driver | Two 5.25" CD-ROM bays, two 3.5" HD bays, additional HD bays can be increased if need |
| Power Supply | Industrial Switching Power Supply |
| Anti-vibration | 5-17Hz/0.1mm amplitude; 17-640Hz/1.5g, acceleration |
| Anti-shock | 10g acceleration, 11ms duration |
| Operating temperature | 0℃～50℃; 5%～90%(non-condensing) |
| Storage environment | -20℃～60℃; 5%～90%(non-condensing) |
