Intel® Bay Trail J1900 2.0GHz processor.
Industrial display, multi-point capacitive touch screen.
4GB DDR3L memory, maximum support 8GB.

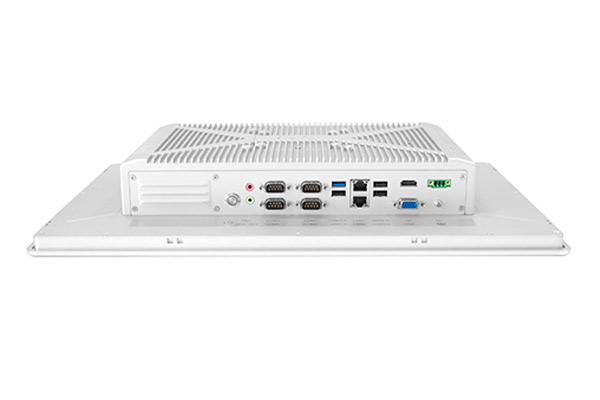

1*USB3.0, 3*USB2.0, 4*RS232.
1*HD display interface, 1*VGA.
Intel® Bay Trail J1900 2.0GHz processor.
Industrial display, multi-point capacitive touch screen from the panel PC manufacturer.
4GB DDR3L memory, maximum support 8GB.
1*USB3.0, 3*USB2.0, 4*RS232.
1*HD display interface, 1*VGA.
2* Intel® Gigabit LAN, 1 of which supports Wake-on-LAN.
Fanless design.
Panel protection level can reach IP65.

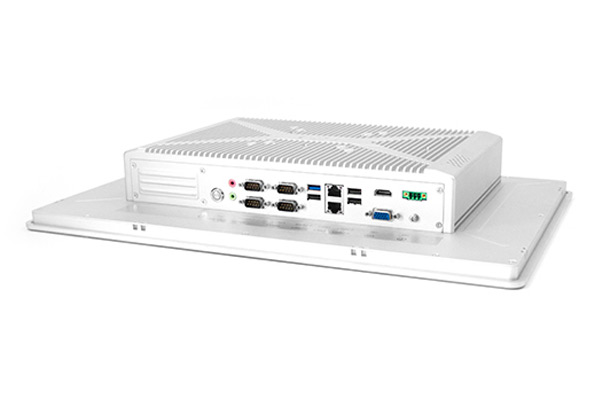

Die-cast alumium housing and fanless heatsink cooling.

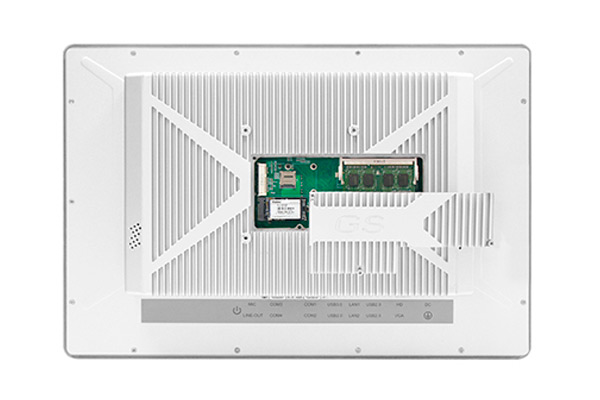

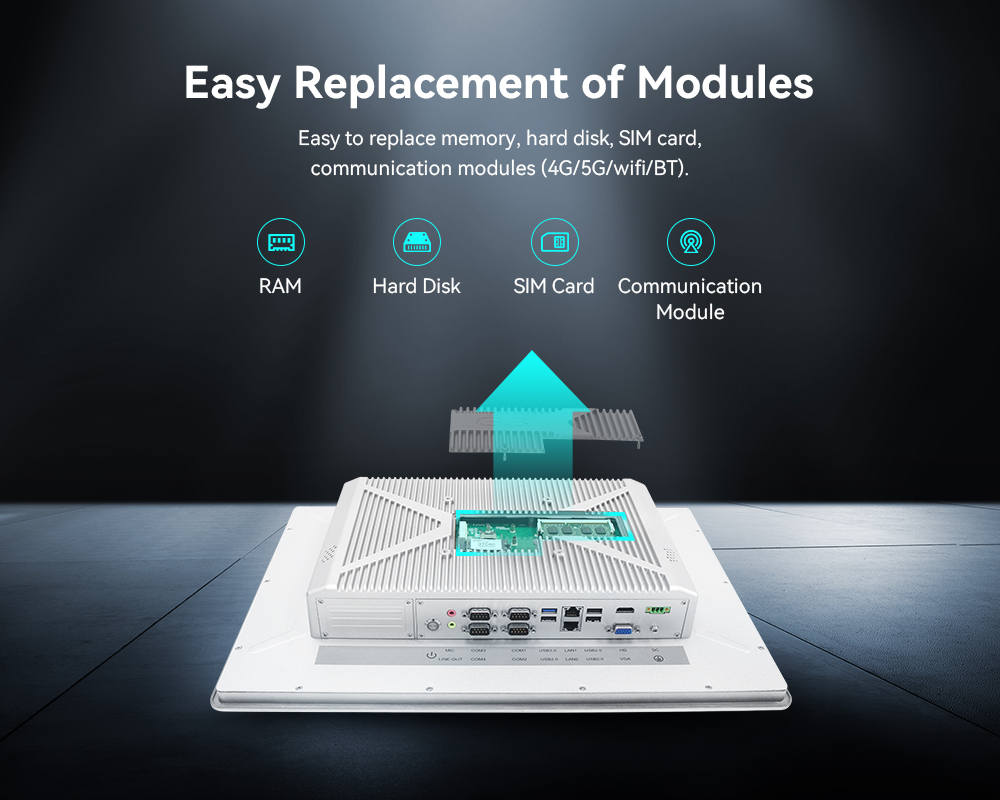

Accessable to change RAM, SSD and WiFi via 3 screws on the back of the unit.
9-36V wide Voltage Input.
Cabless design for I/O ports.
| System Hardware | |
| CPU | Intel® Bay Trail J1900 quad-core four-thread processor |
| Memory | 4GB DDR3L, up to 8GB |
| Storage | M.2, 128GB, up to 512GB |
| Speaker | Dual speakers |
| Watchdog | Support hardware reset function (256 levels, 0~255 seconds) |
| Display | |

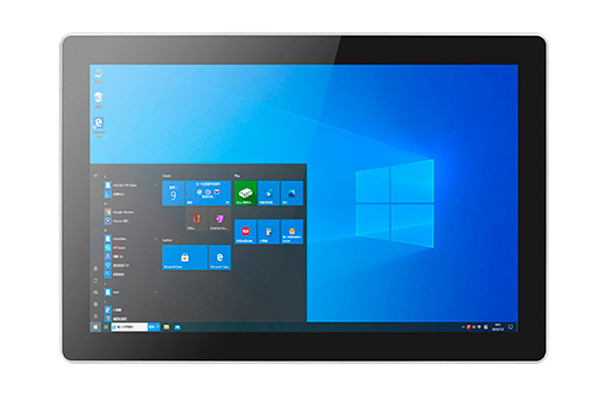

| LCD Type | 19″ LCD |
| Luminance | 250 cd/m2 |
| Touch screen Type | Capacitive touch screen |
| Max. Resoltuion | 1440*900 |
| Contrast Ratio | 1000:1 |
| OS. | |
| OS. | Windows7/10, Ubuntu |
| I/O Interface | |
| USB | 1*USB 3.0+3USB20. |
| Serial port | 4*RS232 (2*RS485 optional) |
| LAN | 2* RJ45 Gigabit LAN port |
| Audio | 1*Line-out+1*Mic-in |
| Video | 1*HD+1*VGA |
| DC Port | Phoenix terminal 3pin |
| Mini PCIe | 1*Mini PCIe(Wifi/BT/4G/5G optional) |
| SIM Card | 1* Built-in SIM card holder |
| M.2 | 1*M.2 SLOT(2242) |
| GPIO | 1*GPIO(4in/4out) |
| Expansion port | PCIE/LPC/I2C/2*RS232 |
| Power | |
| Power | 9-32V wide voltage input, standard 12V/5A adapter (optional adapter for external expansion POE module) |
| Environment | |
| Operating Temperature | -10℃～50℃ Surface air flow |
| Storage Temperature | -20℃～70℃ |
| IP Rating | Front panel IP65 |
| Humidity | 95% @40℃, non-condensing |
| Shock Protection | 10g acceleration, 11ms cycle |
| Vibration Protection | 5-17Hz/1.0mm amplitude; 17-200Hz/1.0g acceleration |
| Mechanical | |

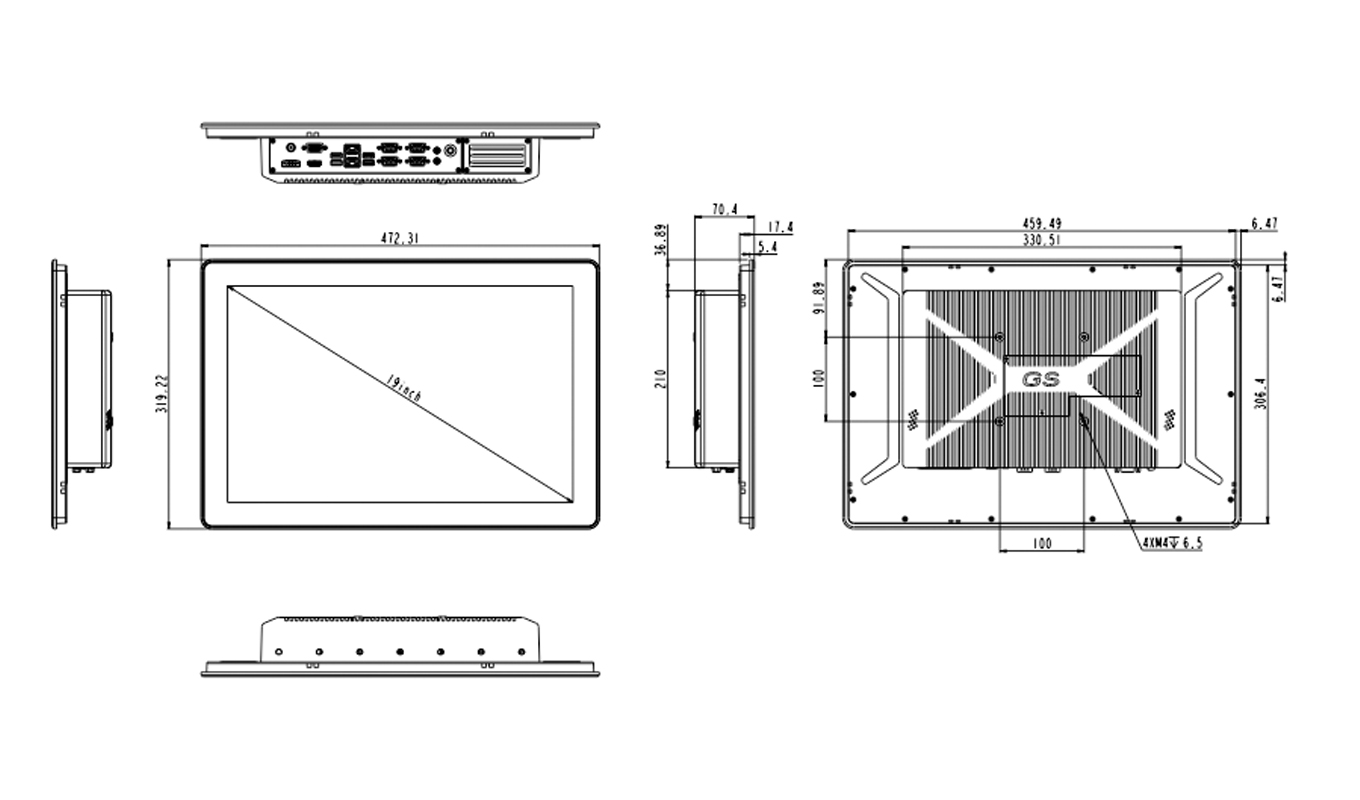

| Dimension (W x H x D) | 472*320*70mm |
| Weight | 6kg |
| Material | Aluminum alloy |
| Color | Silver |
| Mounting | VESA mounting: 100*100mm Embedded installation: 459.49*306.4mm |
