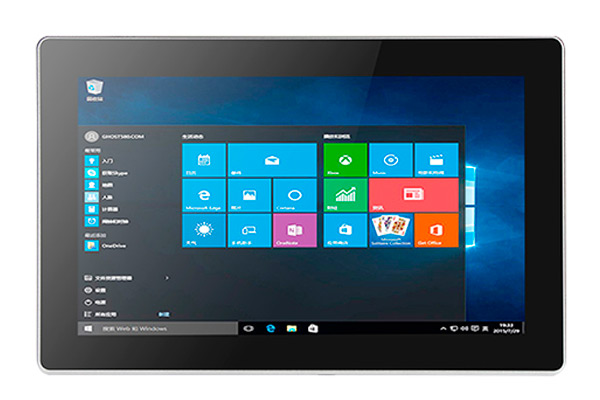

15 inch panel pc

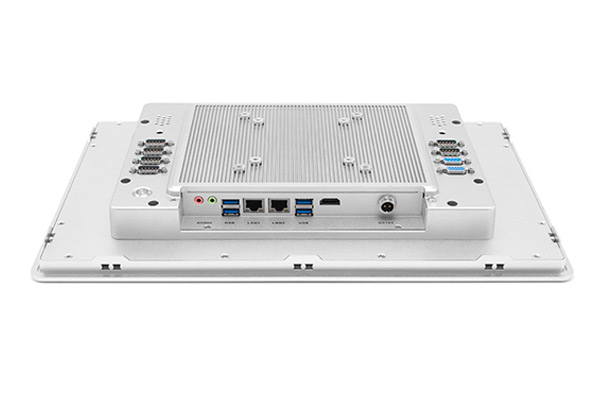

15 panel pc

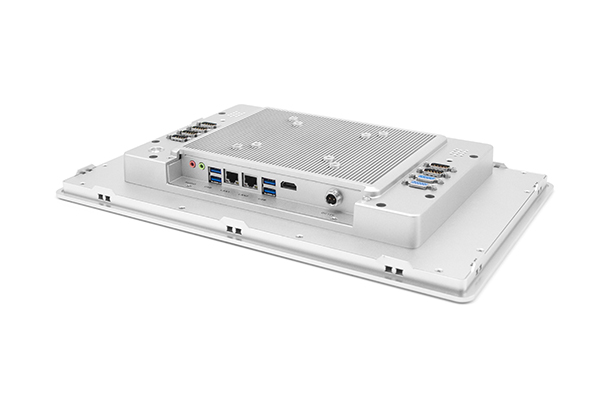

15 inch j1900 core i3 i5 i7 capacitive panel pc4

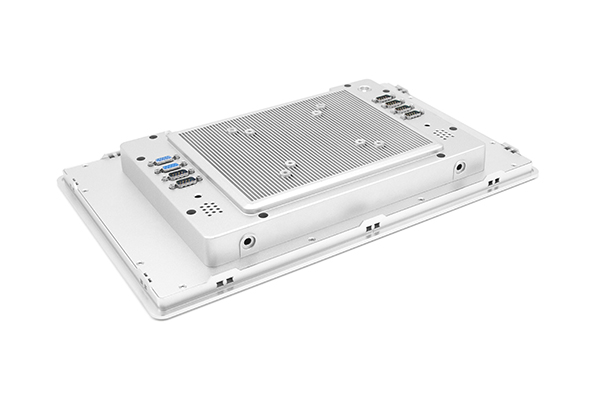

15 inch j1900 core i3 i5 i7 capacitive panel pc5

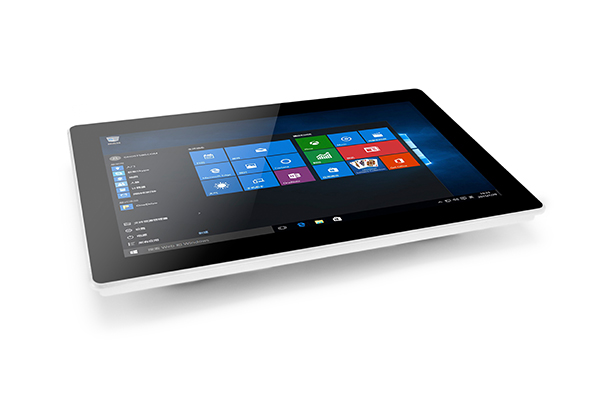

15 inch j1900 core i3 i5 i7 capacitive panel pc3
capacitive touch panel pc details 1
capacitive touch panel pc details 2
capacitive touch panel pc details 3
15 inch panel pc
15 panel pc
15 inch j1900 core i3 i5 i7 capacitive panel pc4
15 inch j1900 core i3 i5 i7 capacitive panel pc5
15 inch j1900 core i3 i5 i7 capacitive panel pc3
capacitive touch panel pc details 1
capacitive touch panel pc details 2
capacitive touch panel pc details 3

15 Inch J1900 Core I3/I5/I7 Capacitive Panel PC

TQ15

Industrial Grade IPS Rugged 15.6" PCAP FHD 1920*1080 Widescreen;

High Powerful Gen 6th CPU J1900/3855/3865/Core I3/I5/I7;

Optional RAM 8GB+ROM 512GB;

Fanless Design PC Body with IP65 Rated Front Panel.


Get A Quote
Video Spec Download
Specification
Dimension
Accessories

Specification of 15 inch J1900 Core I3/I5/I7 Capacitive Touch Panel PC

System Hardware
CPUSupport intel J1900/J3855/3865/Core I (6/7 th Gen.) series processor
Chipset/
MemoryUp to 8GB
StorageUp to 512GB
Watchdog255 timer levels, setup by software
Display
LCD Type15.6″ TFT-LCD
Max. Resolution1920*1080
Luminance300 cd/m2
Viewing Angle160°(H)*145°(V)
Contrast Ratio800: 1
Backlight Life-Time50000 hr (min.)
Touchscreen
Touchscreen TypeMulti-touch projected capacitive
Light Transmission>85%
Hardness6H
OS
OSWindows 7, Windows 10, Linux
I/O Ports
USB3*USB 2.0 + 1*USB3.0 (Celeron J1900)
4*USB 3.0 (J3855U/3865U/Core i (6/7th Gen))
Serial port6*RS232 (1*RS422/RS485 optional )
LAN2* RJ45 Gigabit Ethernet (Intel I211-AT)
Audio1*Line-out, 1*Mic-in
Video1*HDMI, 1*VGA
GPIO4In/4Out
Expansion Slot1*Mini PCIe(Wifi/BT/3G/4G optional)
Power
Power Input9~24V DC Input (9~36V DC optional), 12V/5A power adapter
Power Consumption/
Environment
Operating Temp.0℃~50℃, with airflow
Storage Temp.-30℃~70℃
Humidity95% @40℃, non-condensing
IP RatingFront panel IP65
Shock Protectionacceleration 10G/11ms
Vibration Protection5-19Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration
Certificate
Certificate/
Mechanical
Dimension (W x H x D)406.2*255.6*52.3mm
Weight3.57kg
ColorSilver
MountingVESA mounting: 100*100mm
Panel mounting: 243*180mm
Dimensions

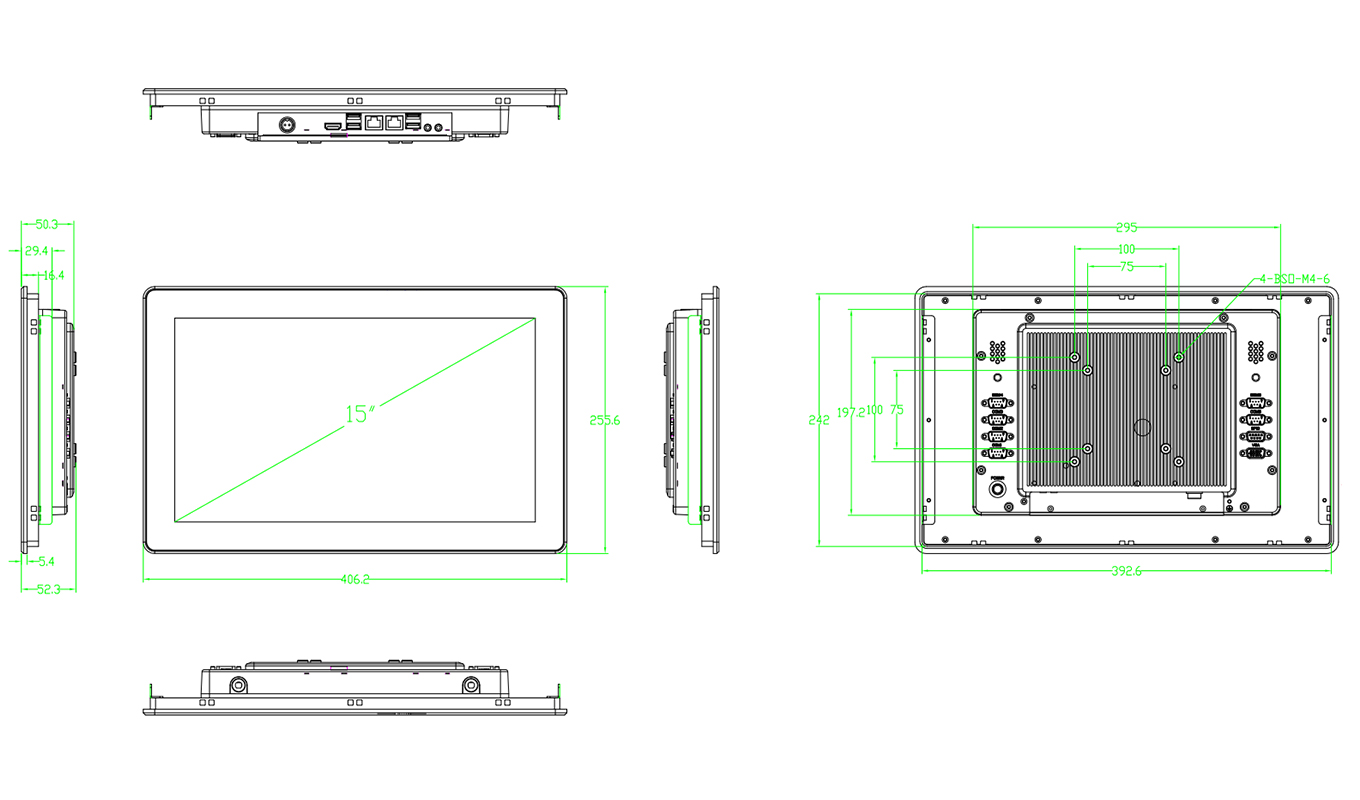

Dimension of 15 inch J1900 Core I3/I5/I7 Capacitive Touch Panel PC

Dimension of 15 inch J1900 Core I3/I5/I7 Capacitive Touch Panel PC

Accessories of 15 inch J1900 Core I3/I5/I7 Capacitive Touch Panel PC

Packing List

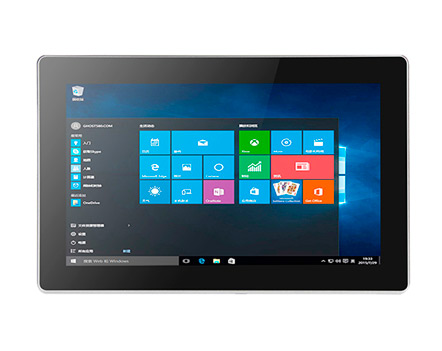

device of 15 inch panel pc
device of 15 inch panel pc

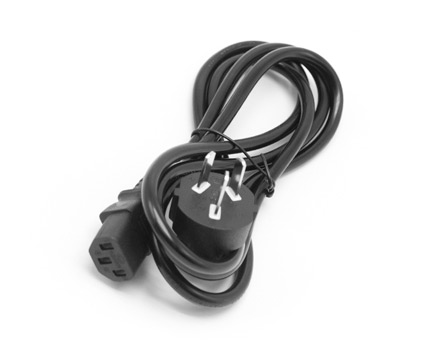

power supply of 15 panel pc
power supply of 15 panel pc
power adapter of 15 inch panel pc
power adapter of 15 inch panel pc
