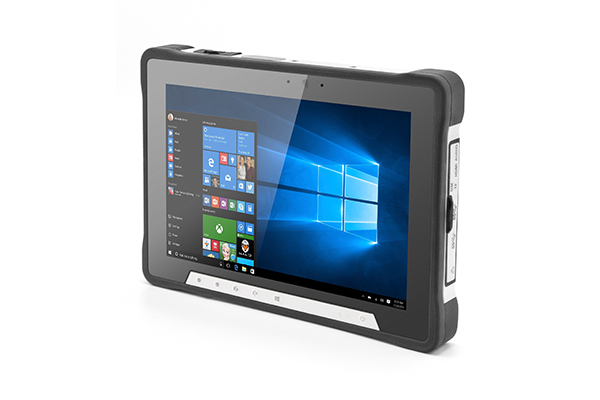

Rugged Windows Tablet PC

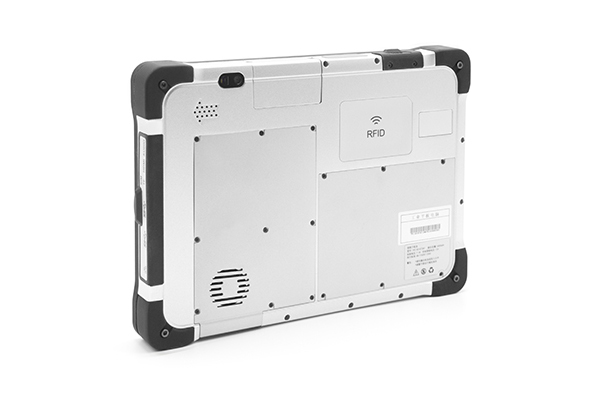

Ruggedized Windows Tablet
Rugged Windows Tablet PC
Ruggedized Windows Tablet

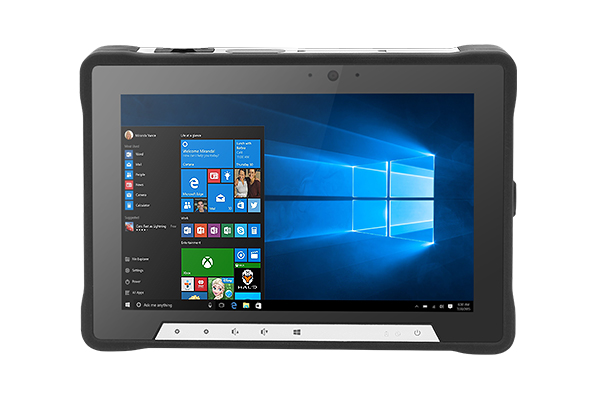

10 Inch Intel Core I3/I5/I7 Rugged Tablet

TPC-GS1073HT

Intel® 6th Gen. Core™ i3 processor, optional Core™ i5/i7;

10.1 inch industrial-grade multi-touch capacitive touchscreen;

Rugged magnesium-aluminum alloy material.

Get A Quote
Video Spec Download
Benefits
Specification
Dimension
Accessories

Benefits of 10 Inch Intel Core I3/I5/I7 Rugged Tablet

  • Intel® 6th Gen. Core™ i3 processor, optional Core™ i5/i7

  • 10.1 inch industrial-grade multi-touch capacitive touchscreen

  • Rugged magnesium-aluminum alloy material

  • Excellent cooling system with heat pipe & fan

  • Support WIFI, Bluetooth 4.0, optional 3G/4G cellular network

  • Front 200MP, rear 500MP camera

  • Optional GPS、RFID、2D scanner、Fingerprint recognition


Specification of 10 Inch Intel Core I3/I5/I7 Rugged Tablet

System Hardware
CPUIntel® 6th Gen. Core™ i3 Processor(optional Core™ i5/i7)
MemoryOnboard 8GB
Storage64GB SSD (128GB/256GB optional)
CameraFront 200W, rear 500W
SpeakerSingle speaker
LED IndicatorPower indicator, Charging indicator
ButtonBrightness +/-, Volume +/-, Windows button, Power button
Display
LCD Type10.1" TFT-LCD
TouchscreenMulti-touch projected capacitive
Max. Resolution1280*800
Contrast Ratio800: 1
Luminance500 cd/m2
OS
OSWindows 7, Windows 10, Linux

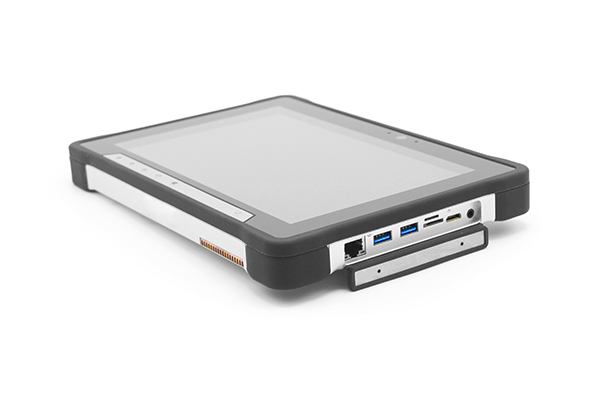

I/O Interface
USB2*USB 3.0, TYPE A
Video1*mini HD
Serial port2*RS232 or 1*RS485 (RJ45 to DB9)
LAN1*GbE RJ45
SIM Slot1*SIM slot
TF Card Slot1*TF slot
Communication
WIFI2.4/5.8GHz Dual-band WIFI
BluetoothBT4.0
GPSOptional
4GOptional
Extended Functions
Extended FunctionsOptional RFID, fingerprint recognition, 2D scanner
Power
Power Input19V DC Input

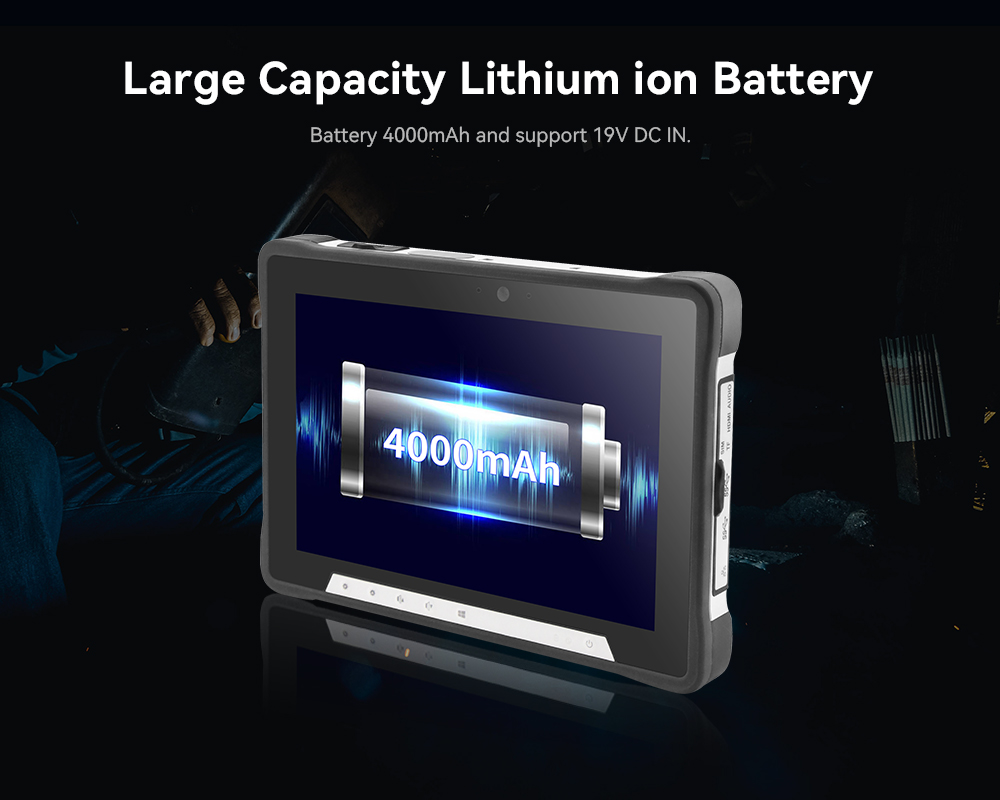

Battery4000mAh, 11.55V Li-Ion battery
Environment
Operating Temp.-20℃~60℃
Storage Temp.-30℃~70℃
ReliabilityMTBF≥30000h; MTTR≤0.5h
Shock Protectionacceleration 10G/11ms
Vibration Protection5-19Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration
Humidity95% @40℃, non-condensing
IP RatingIP54
Mechanical
Dimension (W x H x D)269*189*27.5mm
Weight1.55kg
ColorSilver
MaterialAluminum-magnesium alloy
Accessories
AccessoriesTouch pen, optional hand strap, shoulder strap


Dimension of 10 Inch Intel Core I3/I5/I7 Rugged Tablet

Deminsion of 10 Inch Intel Core I3/I5/I7 Rugged Tablet

Accessories of 10 Inch Intel Core I3/I5/I7 Rugged Tablet

Packing List
Power Adapter of Industrial Tablet Windows 10
Power Adapter of Industrial Tablet Windows 10

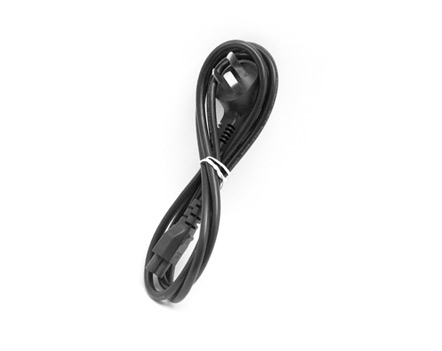

Power Supply of Rugged Tablet PC Windows 10
Power Supply of Rugged Tablet PC Windows 10
Capacitive Pen of Rugged Tablet Windows 10
Capacitive Pen of Rugged Tablet Windows 10

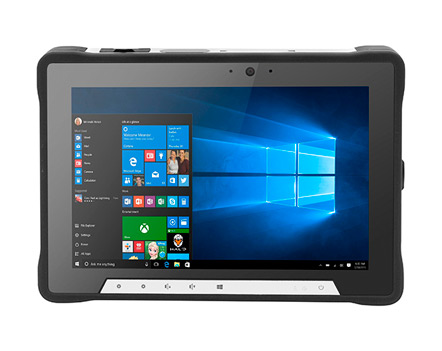

Device of Rugged Tablet Windows 10 Pro
Device of Rugged Tablet Windows 10 Pro
