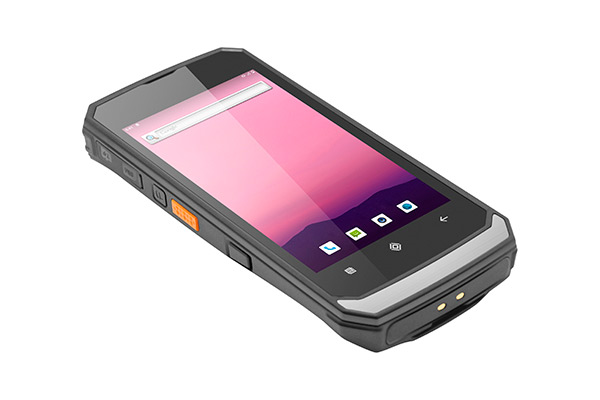

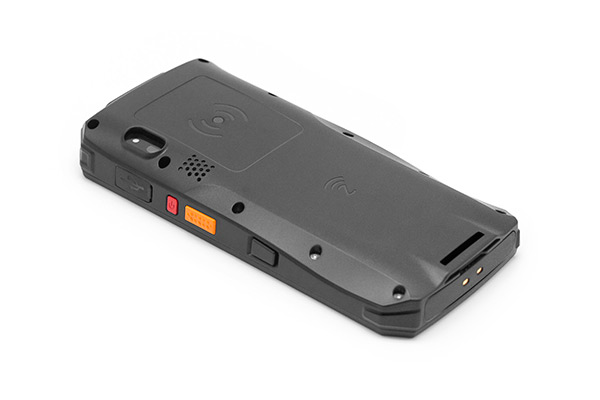

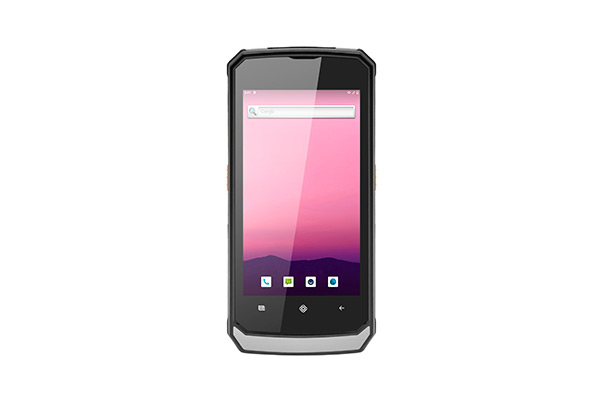

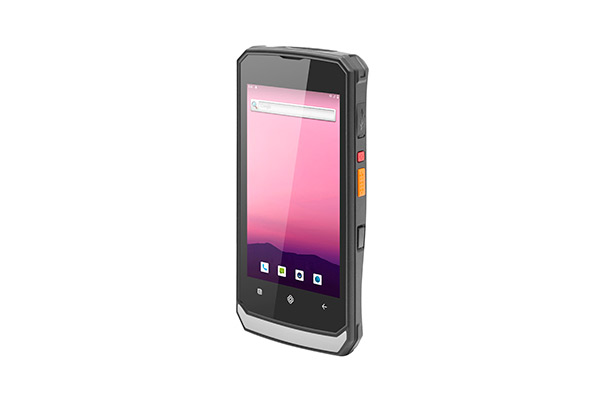

Geshem 5 Inch Handheld Terminal of PDA-GS0531W

Handheld Terminal-GS0531W

MTK6761 Quad Core 2.0GHz Processor.

5.0 Inch IPS Capacitive Touch Screen from panel PC suppliers.

Android 10.0 OS, Support GMS.

3900 mAh, Detachable Battery.

Get A Quote
Video Spec Download
Benefits
Specification
Dimension

Benefits of 5 Inch Handheld Terminal of PDA-GS0531W

  • MTK6761 Quad Core 2.0GHz Processor.

  • 5 PDA IPS Capacitive Touch Screen.

  • Android 10.0 OS, Support Google Play.

  • 3900 mAh, Detachable Battery; 500 mAh spare battery.

  • 2GB Ram; Max 4GB optional.

  • 16GB Rom; Max 64GB optional.

  • Honeywell 3603, 1D/2D barcode scanner.

  • Support WiFi, 4G LTE, GPS and Glonass.

  • Support Fast Charging >5V/2A.

  • Back texture design.

  • Anti Slip And Anti Release.

Specification of 5 Inch Handheld Terminal of PDA-GS0531W

Performance
ChipsetMTK6761 4G Quad Core 2.0GHz
RAM2GB Ram; Max 4GB optional
ROM16GB Rom; Max 64GB optional
OSAndroid 10.0 OS, support Google Play
Power Supply3900 mAh, detachable battery
Display
LCD5 Inch IPS, 16: 9
ScreenMulti-touch Capacitive scree
Resoltuion720*1280
I/O Interface
USB1*TYPE-C, Support fast charging >5V/2A
WIFISupport 2.4/5GHz  A/B/G/N/AC, support wireless roaming
CameraRear 8 MP
SIMNANO 4G dual SIM card slots:
Support SD card, Maximum 128GB, Choose two from three with T card
BluetoothBT 4.0
4G4G dual SIM card slots:
1. GSM: B5/850;B8/900;B3/1800;B2/1900;
2. 3G: WCDMA B1/2100;B2/1900;B5/850;B8/900;
Optional B4
3. FDD-LTE,  FDD LTE B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20
4. TDD: B38/B39/B40/B41
GPSGPS, GLONASS
Audio SystemSupport
3D AccelerometerSupport
Electronic CompassSupport
Light SensorSupport
Vibration MotorSupport
MicrophoneSupport
Distance SensorSupport
3D GyroscopeNot Support
BarometerNot Support
Video Encoding Format3gp/H.265/MPEG4
Pilot LampSupport Color: Red, Blue and Green
ButtonFour on the side: Volume, Two Scanning buttom, Power Button
Barcode ScannerHoneywell 3603, 1D/2D barcode scanner
Environment
Operating Temp.-10℃~-50℃
Storage Temp.-20℃~-60℃
Optional
LF134.2KHz FDX-B and HDX according to ISO/IEC11784/5
NFCNXP NQ310
Spare Battery500 mAh spare battery
Desktop AdapterSupport
RFIDSupport, 26dB, Maximum distance 3m

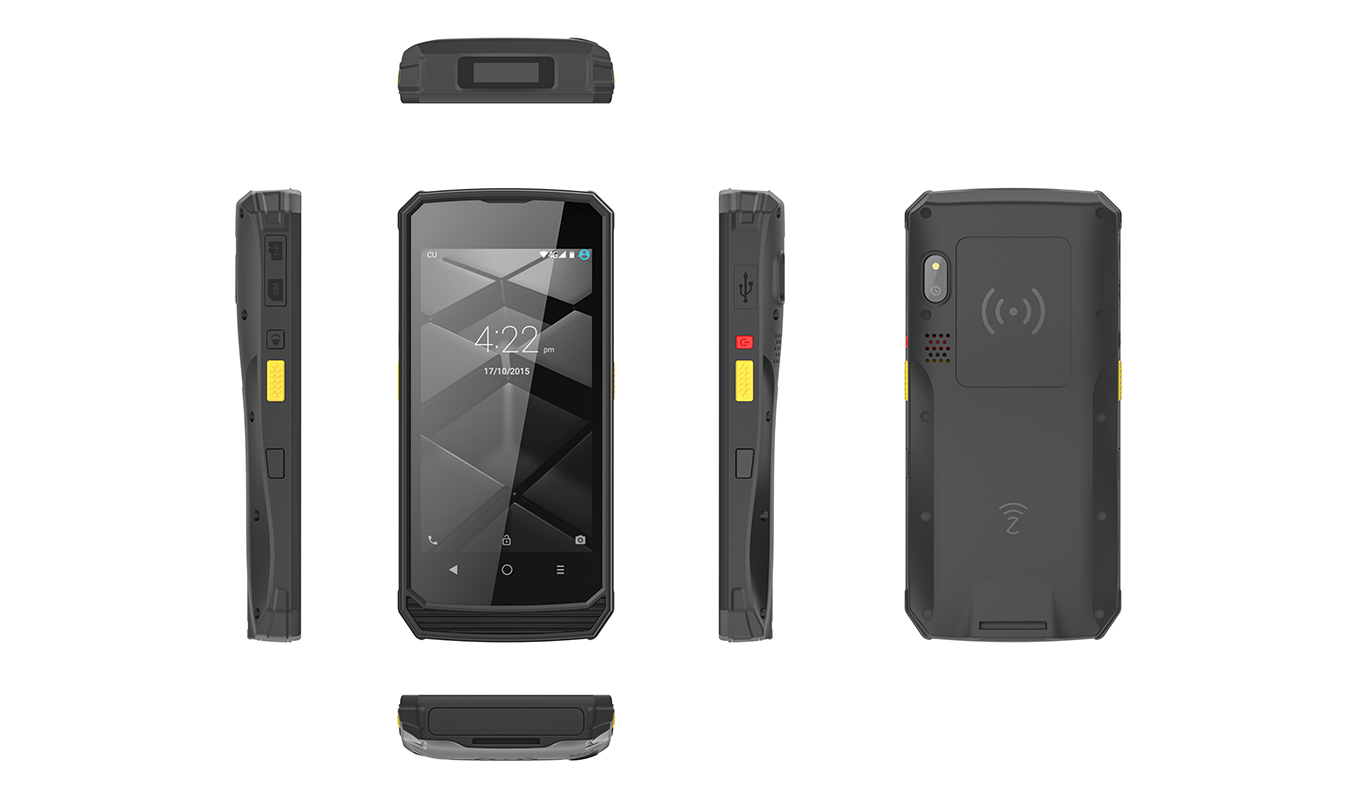

Dimension of 5 Inch Handheld Terminal of PDA-GS0531W

Dimension of 5 Inch Handheld Terminal of PDA-GS0531W
