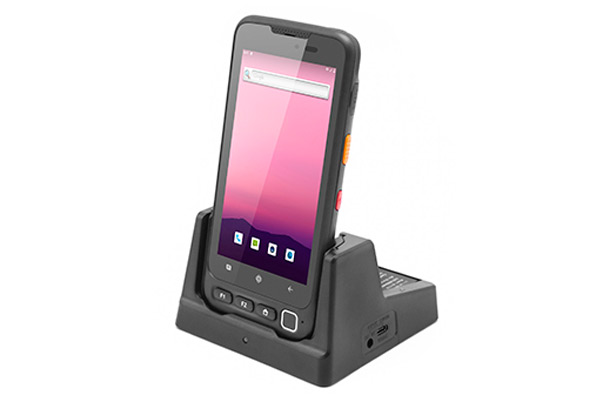

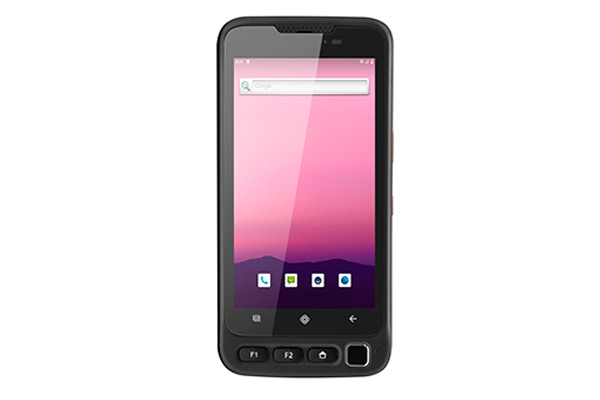

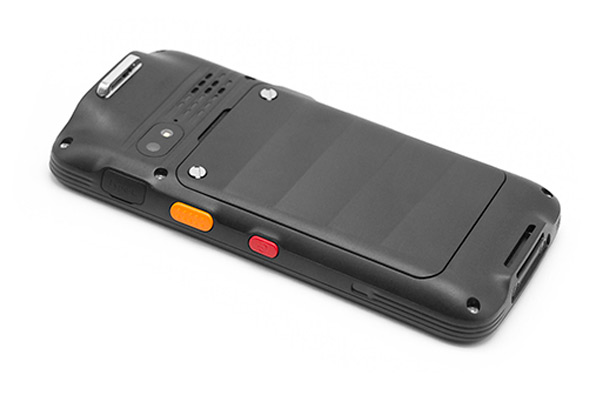

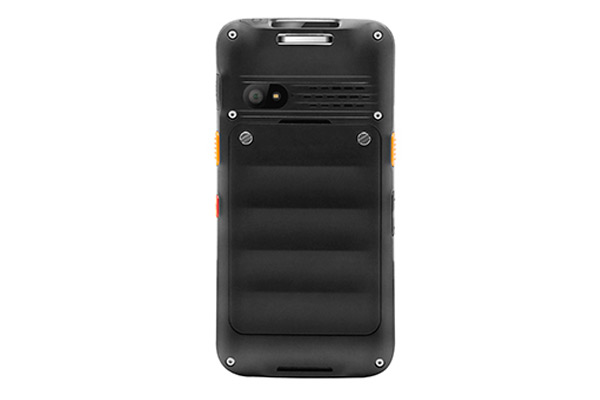

Geshem 5 Inch Handheld Terminal PDA-GS0532W

PDA-GS0532W

MTK6762 Octa Core, 2.0GHz Processor.

5.0 Inch LCD Capacitive Touch Screen from Geshem industrial PC supplier.

Android 10.0 OS Support GMS.

4000 mAh Detachable Battery.

Get A Quote
Video Spec Download
Benefits
Specification
Dimension

Benefits of 5 Inch Handheld Terminal PDA-GS0532W

  • MTK6762 Octa Core, 2.0GHz Processor.

  • 5 Inch PDA LCD Capacitive Touch Screen.

  • Android 10.0 OS Support GMS.

  • 4000 mAh Detachable Battery.

  • 2GB Ram; Max 4GB optional.

  • 16GB Rom; Max 64GB optional.

  • Support WiFi, 4G LTE, GPS, Beidou and Glonass.

  • Support NFC NXP PN553.

  • 1/2D barcode scanner(Zebra 4710, Honeywell 3601).

  • 300 Hours Duration Time.

  • IP67 Protection Level.


 For custom OEM industrial PC design direct from Geshem, inquiry now!

Specification of 5 Inch Handheld Terminal of PDA-GS0532W

Performance
ChipsetMTK6762 Octa core, 2.0GHz
RAM2GB Ram; Max 4GB optional
ROM16GB Rom; Max 64GB optional
OSAndroid 10.0 OS support GMS
Display
LCD5.0 Inch
ResolutionIPS Screen 1280 x 720
I/O Interface
USB1 x TYPE-C, Support fast charging 5V/2A
WIFISupport 2.4/5GHz A/B/G/N/AC Dual Band Wifi
CameraRear 8 MP with Flash Light
Front 2 MP Optional with MOQ
SIMNANO 4G dual SIM card slots:
Support SD card, Maximum 128GB, Choose two from three with T card
BluetoothBT 4.0
4G4G dual SIM card slots:
1. GSM: B5/850; B8/900; B3/1800; B2/1900;  CDMA 1X
2. 3G: WCDMA B1/2100; B2/1900; B5/850; B8/900;
3G: CDMA2000/EVDO
3G: TD/SCDMA
3. FDD-LTE, FDD LTE B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B28
4. TDD: B38/B39/B40/B41
GPSGPS, Beidou, GLONASS
AudioSupport
Video Code Format1080p 30fps H.264/H.265
NFCNXP PN553
FingerprintSupport, for Screen Unlock
Barcode ScannerSupport 1/2D barcode scanner(Zebra 4710, Honeywell 3601)
BT4.0
I/O Ports
Serial PortUART serial port Optional
USB1 x TYPE-C, Support fast charging 5V/2A
IP Level
IP protection levelIP67
Dimension (W x H x D)
Dimension (W x H x D)165x76x16cm
Standard
StandardTYPE-C Cable, Hand Strap, Adaptor
Power Supply
Power Supply3.8V, 4000 mAh
Standby Time300 Hours
Working Time8 Hours

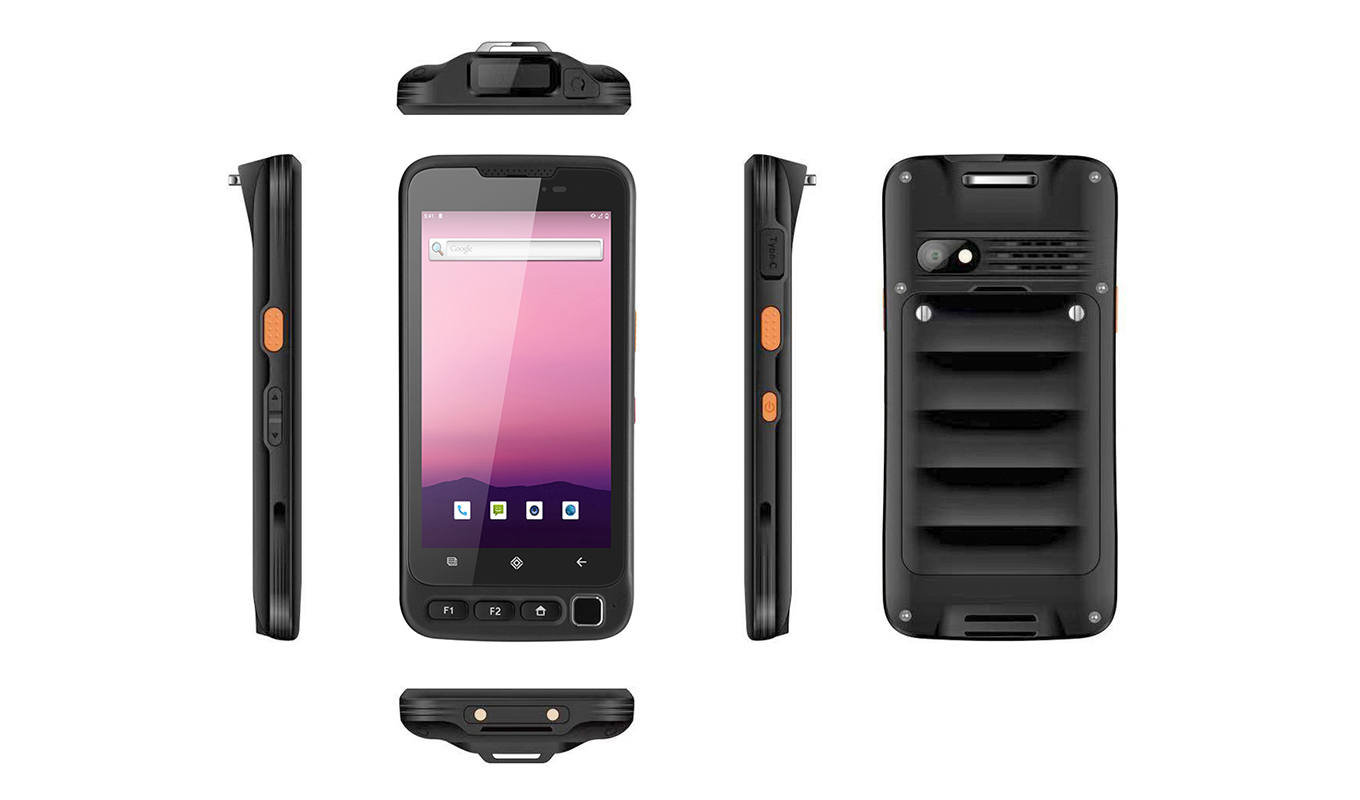

Dimension of 5 Inch Handheld Terminal of PDA-GS0532W

Dimension of 5 Inch Handheld Terminal of PDA-GS0532W
