Onboard Intel Celeron J1900 CPU;
Fully sealed fanless design;

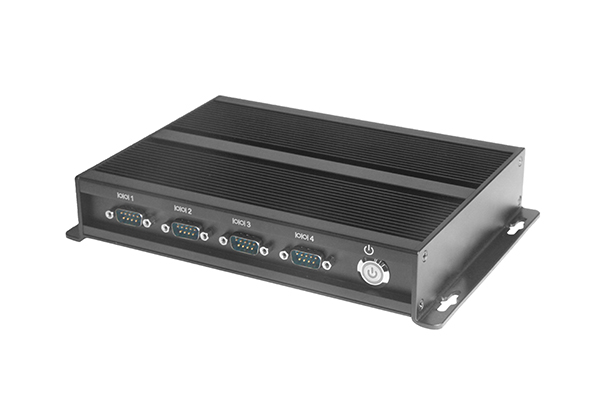

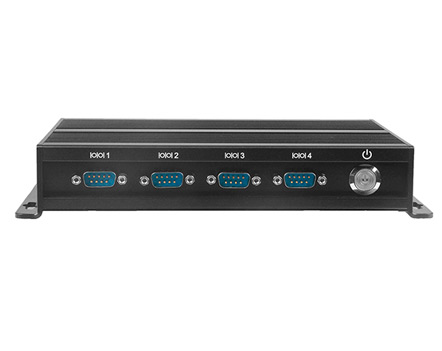

4*USB+4*COM;
2*Intel GbE RJ45 1000M;
1*VGA+1*HDMI.
Onboard Intel Celeron J1900
2GB or 4GB ram
Monitors voltage, CPU, TEMP
0-255 sec by software
SSD
Win 7, Win 10, Linux

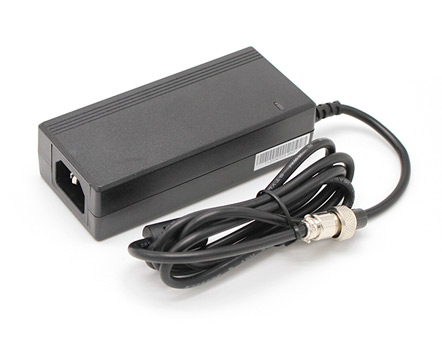

9-24V DC IN(12V/5A power adapter)
Performance | |
Chipset | Onboard Intel Celeron J1900 |
Ram | 2GB or 4GB ram |
Hardware monitor | Monitors voltage, CPU, TEMP |
Watchdog Timer | 0-255 sec by software |
Storage | SSD |
O/S | Win 7, Win 10, Linux |
Power Supply | 9-24V DC IN (12V/5A power adapter) |

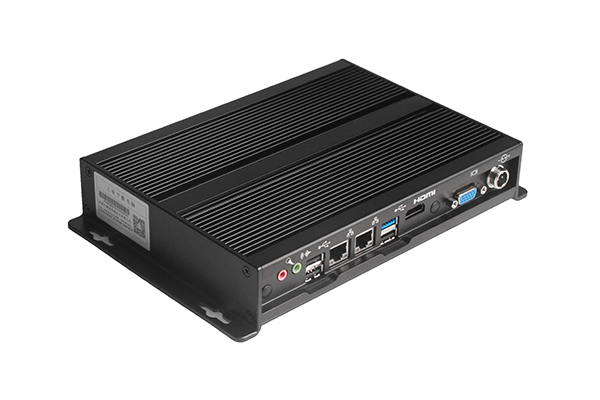

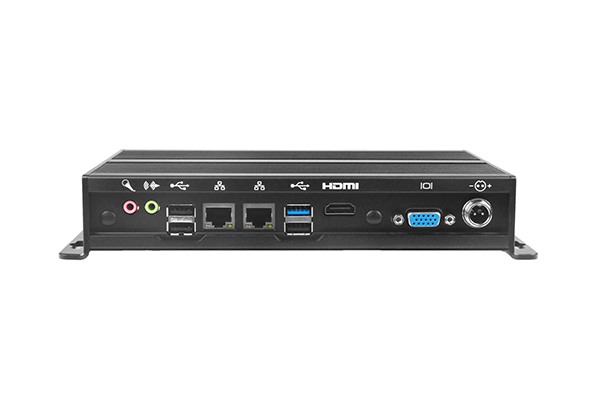

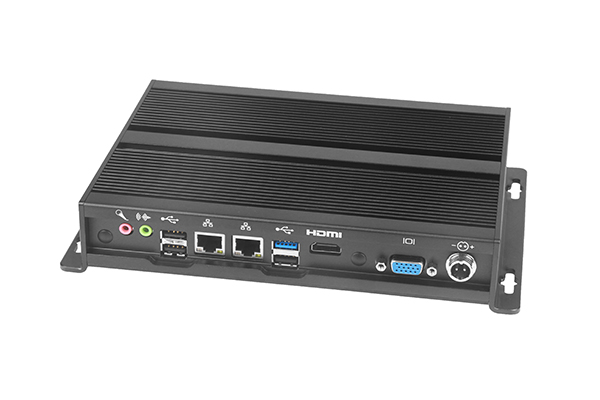

I/O Ports | |
USB | 3*USB 2.0+1*USB 3.0 |

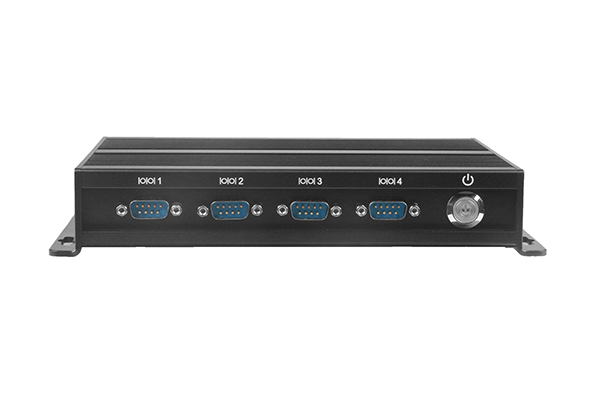

COM | 4*RS232 (1-2*RS482/RS422 optional) |
Ethernet | 2*Intel GbE RJ45 1000M |
Audio | 1*Line-out+1*Mic |
Display | 1*VGA |
MiniPCIE | 1*MiniPCIe (support WIFI/BT/3G/4G) |
GPIO | 1*4in/4out |
Environment | |
Anti-vibration | 5-19Hz/1.0mm amplitude 19-200Hz/1.0g acceleration |
Anti-shock | acceleration 10g/11ms |
Reliability | MTBF≥5000h; MTTR≤0.5h |
Working Temp | -25℃~60℃, with airflow |
Storage Temp | -40℃~70℃ |
Humidity | 95% @40℃, non-condensing |
Mechanical | |

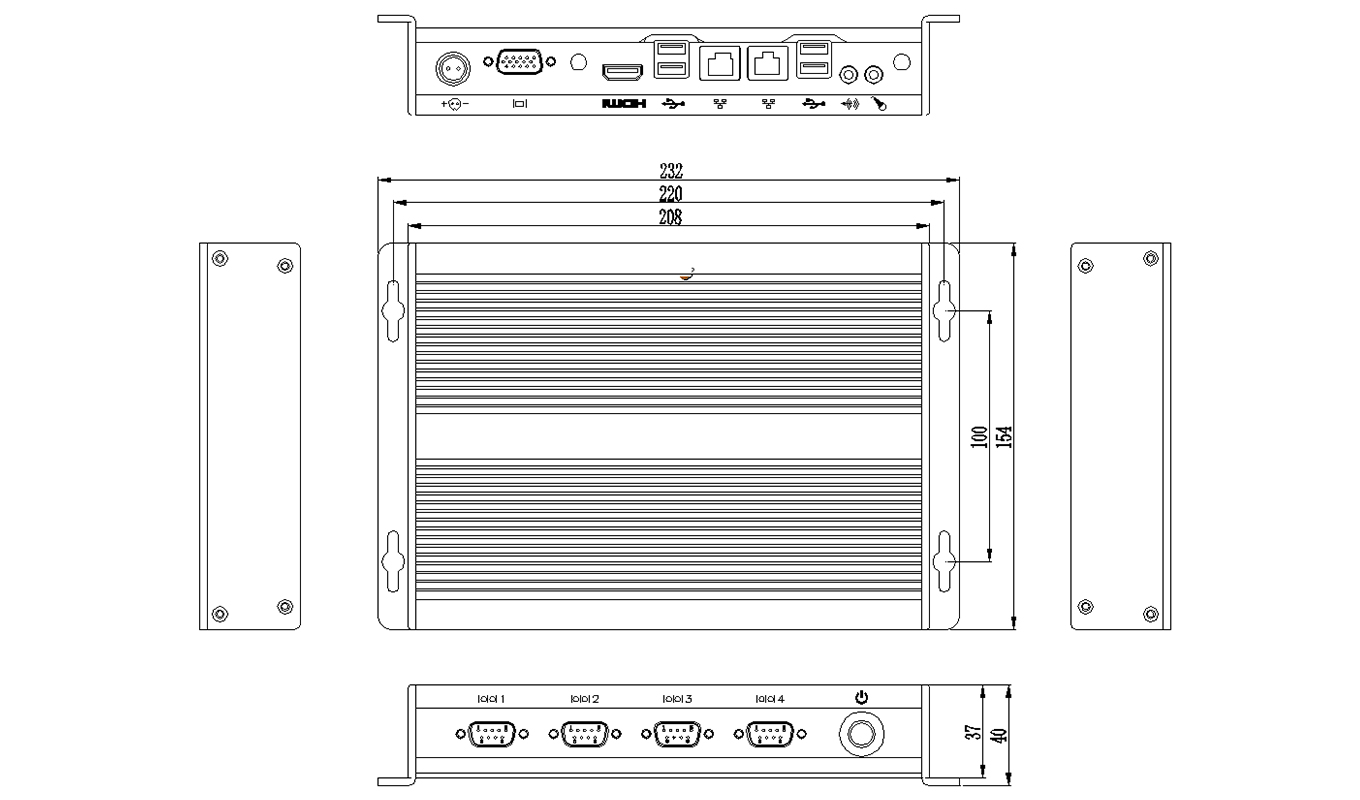

Dimension | 208mm (L) *154 mm (W) *40mm (H) |
Material | High-strength & elegant Al-alloy, fanless design |
Weight | 1.1kg/1.3kg (N.W/G.W) |
Color | Black |
