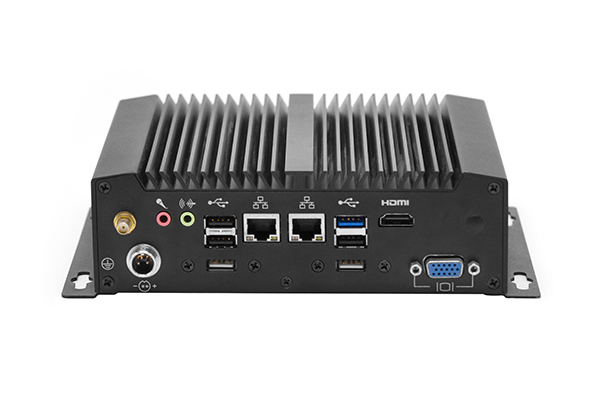

embedded box pc

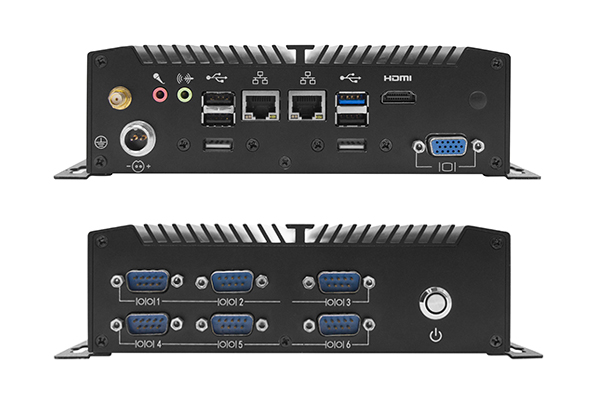

mini pc fanless windows 10

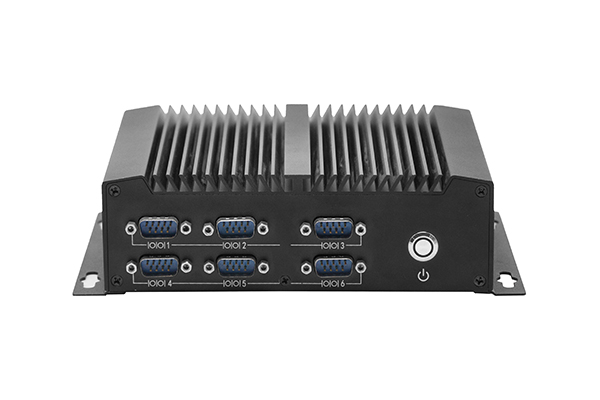

compact j1900 aluminum alloy box pc2

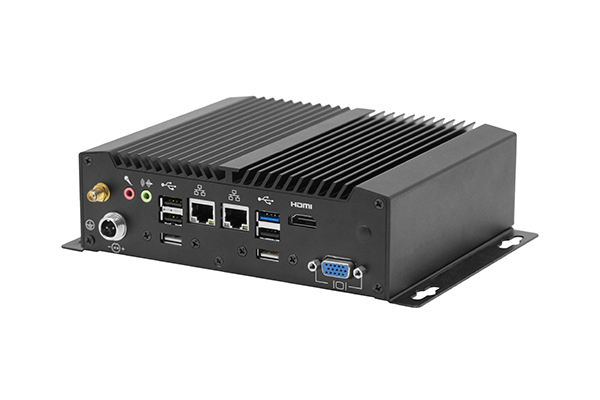

compact j1900 aluminum alloy box pc3

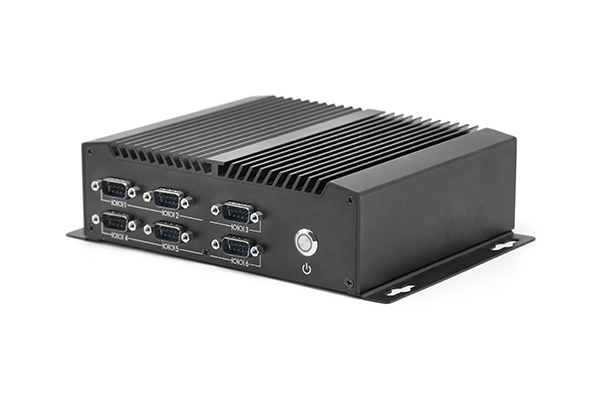

compact j1900 aluminum alloy box pc4

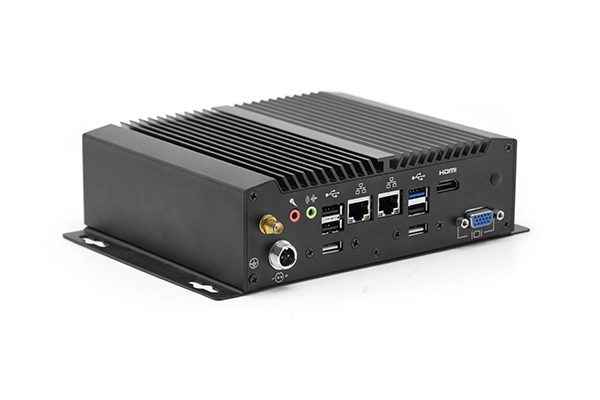

compact j1900 aluminum alloy box pc5
embedded box pc
mini pc fanless windows 10
compact j1900 aluminum alloy box pc2
compact j1900 aluminum alloy box pc3
compact j1900 aluminum alloy box pc4
compact j1900 aluminum alloy box pc5

Compact J1900 Aluminum alloy Box PC

PC-GS3151A

J1900/3855/3865/Core i3/i5/i7 CPU;

Fully sealed fanless design;

RAM: 2GB DDR3/DDR4;

6*USB+6*COM;

2*Intel GbE RJ45 1000M;

1*VGA+1*HDMI.

Get A Quote
Spec Download
Benefits
Specification
Dimension
Accessories

Benefits of Compact J1900 Aluminum alloy Box PC

  • J1900/3855/3865/Core i3/i5/i7 CPU

  • J1900: 2GB DDR3, up to 8GB

  • 3855U/3865U/Core: 2GB DDR4, up to 16GB

  • Monitor voltage, CPU, TEMP

  • 0-255 sec by software

  • SSD: 64GB, up to 512GB

  • Windows 10, Linux (J1900 can support Win7)

  • 9-24V DC IN (12V/5A power adapter)

Specification of Compact J1900 Aluminum alloy Box PC

Performance
ChipsetJ1900/3855/3865/Core i3/i5/i7 CPU
RamJ1900: 2GB DDR3, up to 8GB
3855U/3865U/Core: 2GB DDR4, up to 16GB
Hardware monitorMonitor voltage, CPU, TEMP
Watchdog Timer0-255 sec by software
StorageSSD: 64GB, up to 512GB
O/SWindows 10, Linux (J1900 can support Win7)
Power Supply9-24V DC IN (12V/5A power adapter)
I/O Ports
USBJ1900: 5*USB2.0+1*USB3.0
Core i3/i5/i7/3855U/3865U: 2*USB2.0+4*USB3.0
COM6*RS232
Ethernet2*Intel GbE RJ45 1000M
Audio1*Line-out+1*Mic
Display1*VGA, 1*HDMI
MiniPCIE1*MiniPCIe (support WIFI/BT/3G/4G)
GPIO1*4in/4out (Occupy 1*DB9 )
Environment
Anti-vibration5-19Hz/1.0mm amplitude
19-200Hz/1.0g acceleration
Anti-shockAcceleration 10g/11ms
Reliability:MTBF≥5000h; MTTR≤0.5h
Working Temp-20℃~70℃, with airflow
Storage Temp-30℃~80℃
Humidity95% @40℃, non-condensing
Mechanical
Dimension:180mm(L)*148mm(W)*55mm(H)
MaterialHigh-strength & elegant Al-alloy, fanless design
Weight1.1kg/1.3kg (N.W/G.W)
ColorBlack

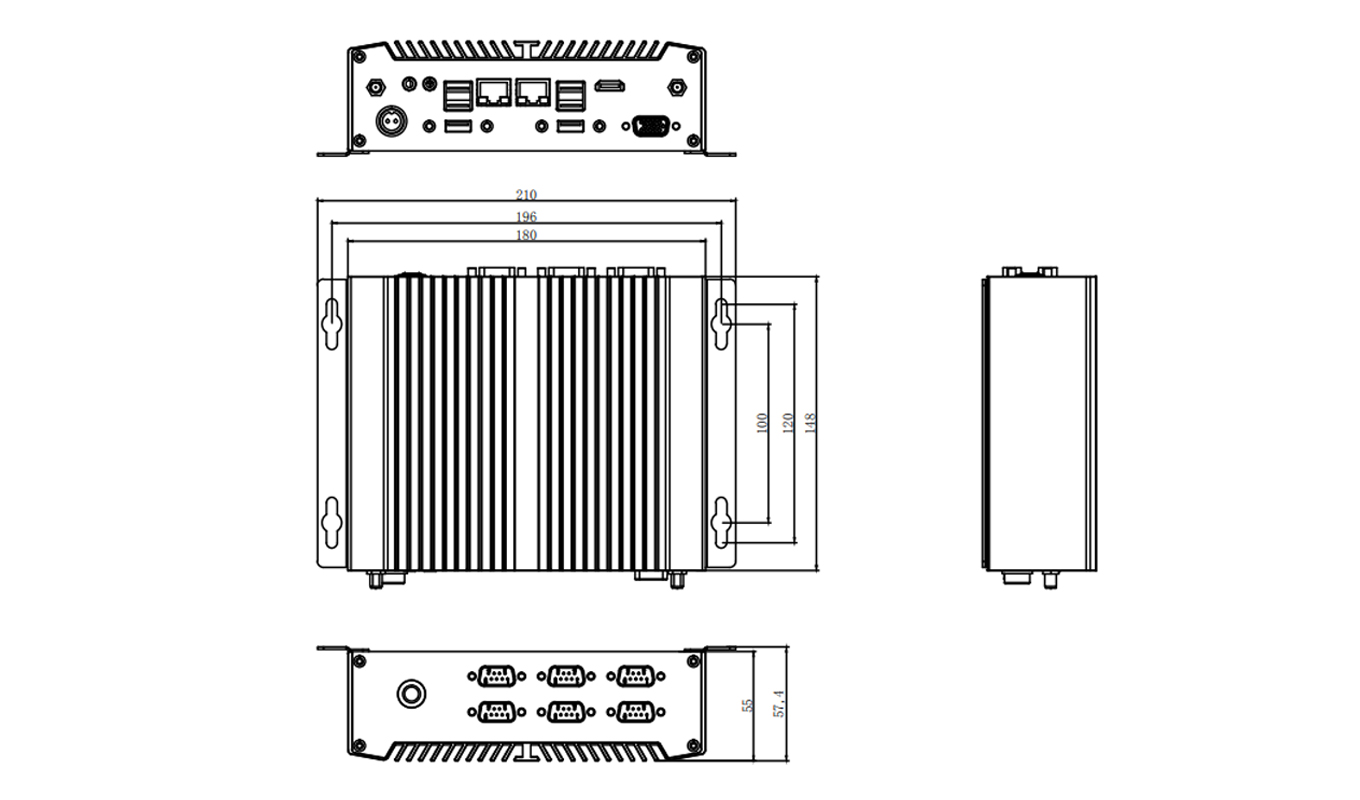

Dimension of Compact J1900 Aluminum alloy Box PC

Dimension of Compact J1900 Aluminum alloy Box PC

Accessories of Compact J1900 Aluminum alloy Box PC

Packing List
device of mini pc fanless windows 10
device of mini pc fanless windows 10

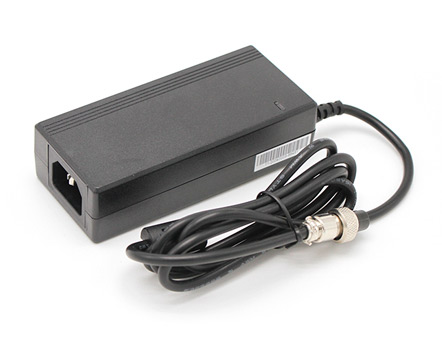

power adapter of mini pc fanless windows 10
power adapter of mini pc fanless windows 10

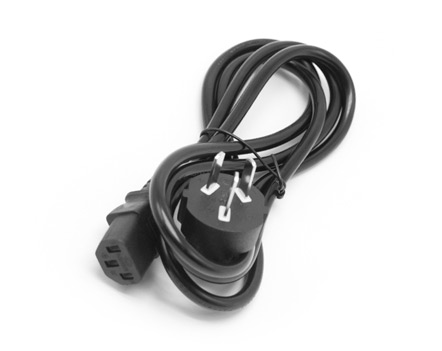

power supply of mini pc fanless windows 10
power supply of mini pc fanless windows 10
