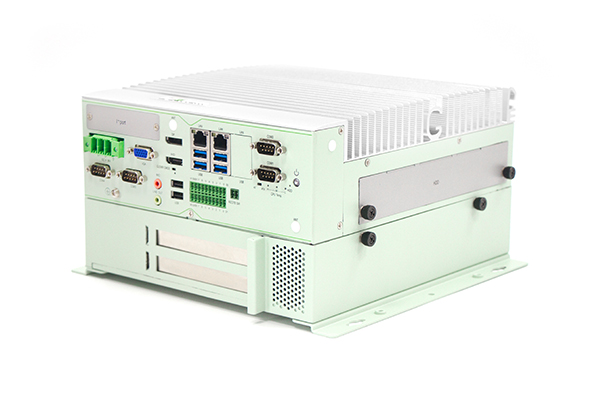

Intel® 8/9th Gen. Coffee lake-R Core™ i7/i5/i3 /Pentium®/Celeron® LGA1151 CPU
H310 Chipset
2*DDR4 2400/2666MHz SODIMM, max 64GB
Support VGA+HD+DP, 2+1 display
Intel® 8/9th Gen. Coffee lake-R Core™ i7/i5/i3 /Pentium®/Celeron® LGA1151 CPU
1*M.2 E-Key 2230, support Gigabit WIFI module

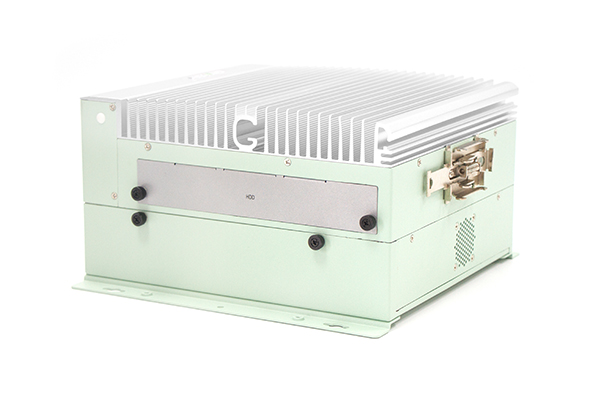

2*SATA3.0 easy-swap hard drive cage, with both pull-out and shock-absorbing design, 1*full size Msata, with SIM card slot
Support 1*PCIeX16+1*PCI expansion slot (optional 2*PCI)

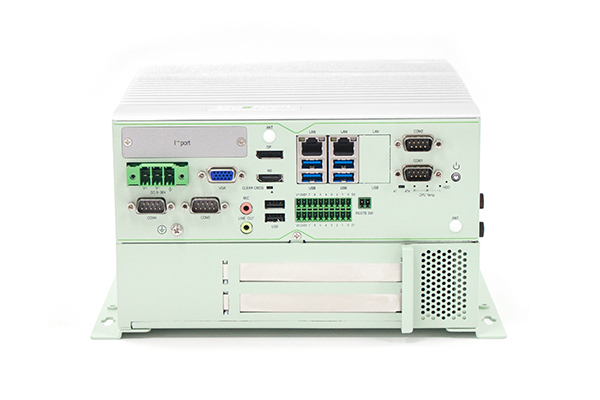

System Hardware | |||
CPU | Intel® 8th/9th-Gen Core™ i7/i5/i3/Pentium® /Celeron® LGA1151 processor, up to 8 cores and 16 threads | Memory | 2*260-Pin SODIMM, dual-channel DDR4 2666/2400MHz, maximum support 64GB |
Chipset | Intel® H310 | Storage | 2*2.5" SATA3 6.0Gbps HDD/SSD Simple Swap Hard Drive Rack 1*mSATA full size, with SIM card slot, support 4G and other wireless functions |
Graphics | Intel® UHD Graphics, Supports DirectX11.1, OpenGL 5.0 and OpenCL 2.1 or PCIe X16 Graphics Display Interface (Half-Length) | ||
Watchdog | Programmable timeout interrupt or system reset, 1 to 255 seconds | ||
OS | |||
OS | Windows* 10 Enterprise & IOT Enterprise、Ubuntu、SuSe、Redhat Enterprise 1,2 (Kernel 4.14) 、Wind River VxWorks 7 | ||
I/O Ports | |||
USB | 4*USB3.1 Type A, 2*USB2.0 Type A, 1*USB2.0 (built-in) | Switch | 1*Power SW, 1*Remote SW, 1*AT/ATX SW, 1*Clear CMOS SW |
COM | 2*RS232/422/485 and 2*RS232 DB9 male interface | Expand | 1*M.2 E-Key 2230, support Gigabit WIFI module 1*PCIe X16, 1*PCI (optional 2*PCI) I-port: optional USB2.0/16-bit DIO/serial port |
LAN | 1*Intel® I210AT PCIe, Gigabit adaptive 1*Intel® I219LM | Indicator Light | 1* power indicator, 1* hard disk indicator, 3* CPU working status indicator (Red is alarm, Yellow is high temperature, Green is normal temperature) |
Audio | 1*DP+1*HD+1*VGA, DP: 4096*2304@60Hz, VGA: 1900*1200@60Hz, HD: 4096*2160@24Hz (2 independent + 1 copy display) | ||
Video | 1*Audio-out & 1*MIC dual 3.5mm phone jack | ||
GPIO | 16-bit isolated DIO (2*10pin phoenix terminal), 8*2.5KV optical isolation input (H: 5-24V, L: 0-1.5V), 8*2.5KV optical isolation output (200mA) | ||
Power | |||
Power | DC IN 9~36V, 3-pin Term. 7.62mm, overvoltage and overcurrent reverse polarity protection | ||
Power Consumption | 60.48W(I7-8700T CPU/16GB DDR4/128GB SSD) | ||
Environment | |||
Vibration Protection | 5grms/5~500Hz/random/working status (SSD); 1grms/5~500Hz/random/working status (HDD) | Operating Temp. | -25~60℃, no fan, wide temperature SSD, air flow -10~55℃, no fan, normal temperature SSD, air flow |
Shock Protection | 50g peak acceleration (lasting 11ms) (SSD); 20g peak acceleration (lasting 11ms) (HDD) | Storage Temp. | -40°C~85°C |
Reliability | MTBF≥50000h; MTTR≤0.5h | Humidity | 10~90%@40°C, no condensation |
Mechanical | |||

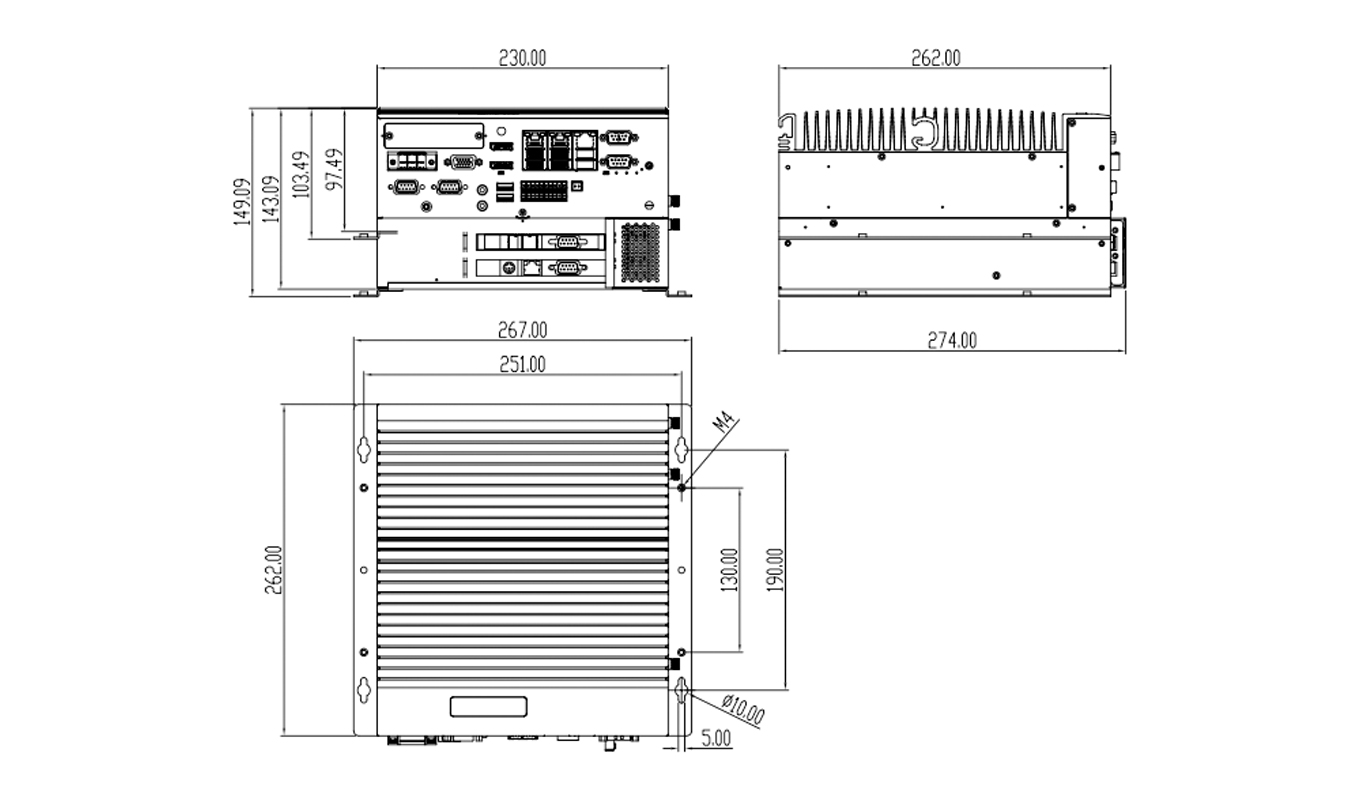

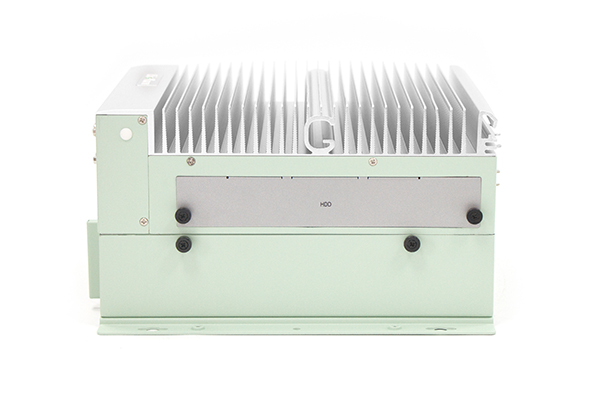

Dimension (WxHxD) | 262*230*143.09mm (two extensions, excluding wall mounts) 262*230*97.49mm (without extension, without wall mount) | Material | Aluminum rectangular profile heat dissipation shell, SGCC box |
Weight | 7.5kg (two expansions) | ||
Color | silver + green | ||
Ordering Information | |||
PC-GS6177AP0 | H310 Chipset/LGA1151 8/9th Gen. Core™ i3/i5/i7, Pentium®, Celeron® processor/2*SO-DIMM DDR4/2*2.5"/1*mSATA (with SIM card slot, support 4G and other wireless function)/4*COM/1*DP+1*HD +1*VGA/2*LAN/1*Audio/4*USB 3.1+3USB 2.0/16-bit isolated DIO/1*M.2 WIFI/9~36VDC/no extension | ||
PC-GS6177AP2 | H310 Chipset/LGA1151 8/9th Gen. Core™ i3/i5/i7, Pentium®, Celeron® processor/2*SO-DIMM DDR4/2*2.5"/1*mSATA (with SIM card slot, support 4G and other wireless function)/4*COM/1*DP+1*HD +1*VGA/2*LAN/1*Audio/4*USB 3.1+3USB 2.0/16-bit isolated DIO/1*M.2 WIFI/9~36VDC/2*PCI | ||
PC-GS6177AP1E1 | H310 Chipset/LGA1151 8/9th Gen. Core™ i3/i5/i7, Pentium®, Celeron® processor/2*SO-DIMM DDR4/2*2.5"/1*mSATA (with SIM card slot, support 4G and other wireless function)/4*COM/1*DP+1*HD +1*VGA/2*LAN/1*Audio/4*USB 3.1+3USB 2.0/16-bit isolated DIO/1*M.2 WIFI/9~36VDC/1*PCI+1*PCIe*16 | ||
Optional CPU | I7-9700T, I5-9500T, I3-9100T, I7-8700T, I5-8500T, I3-8100T, G5500, G5400, G4950, G4930 |
