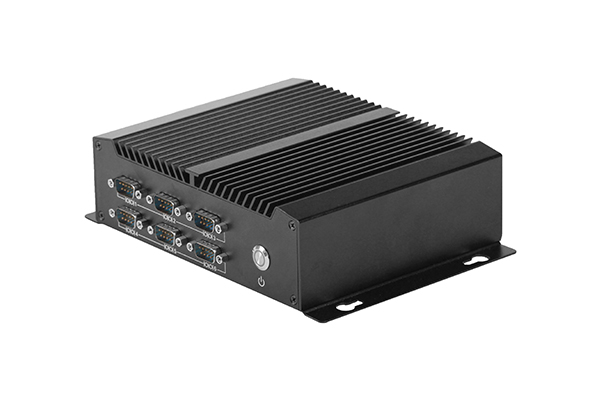

compact core i3 i5 i7 box pc3

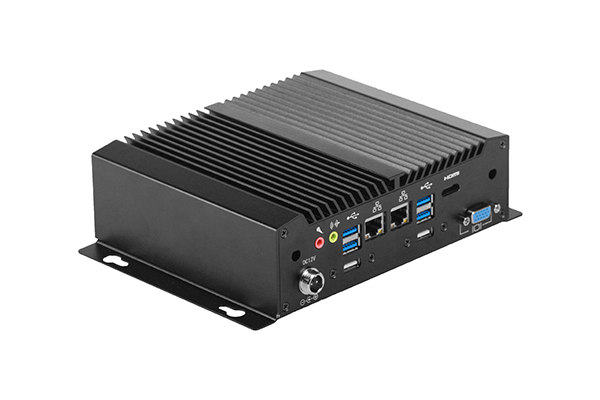

compact core i3 i5 i7 box pc4

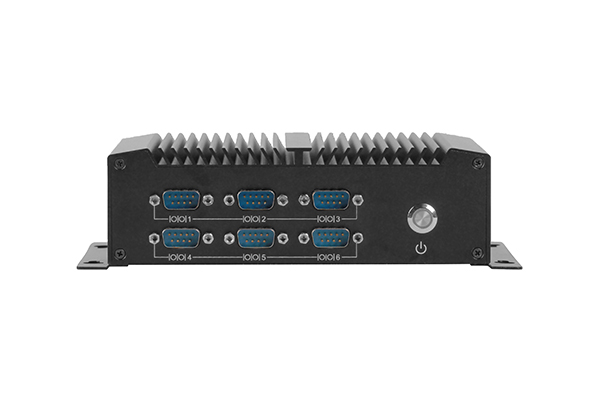

compact core i3 i5 i7 box pc5
fanless embedded box pc

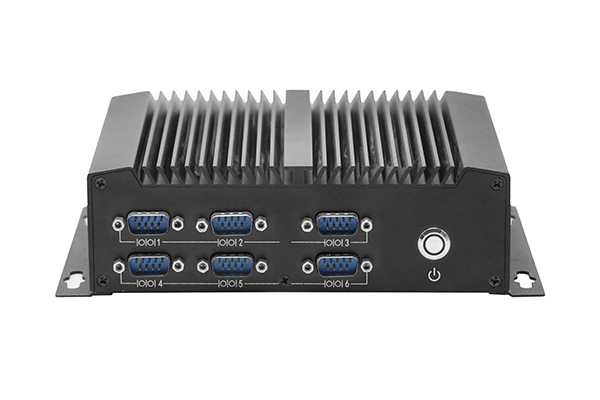

fanless pc windows 10
compact core i3 i5 i7 box pc3
compact core i3 i5 i7 box pc4
compact core i3 i5 i7 box pc5

Compact Core I3/I5/I7 Box PC

PC-GS317XA

Intel® skylake-U Core™ I3/I5/I7 low-power high-performance processor;

Sealed, fanless, and dust-proof design;

Standard 4GB memory, maximum support 8GB;

6*USB, 6*serial port, 1*VGA, 1*HD interface;

2*Intel® I211 Gigabit network interface;

2*Audio audio interface (Line-out, MIC-in).

Get A Quote
Spec Download
Benefits
Specification
Dimension
Accessories

Benefits of Compact Core I3/I5/I7 Box PC

  • Intel® Core™ I5-6200U CPU

  • 4GB DDR3L SO-DIMM(RAM 8GB optional)

  • Monitor voltage, CPU, TEMP

  • 0-255 sec by software

  • 64G mSATAII SSD

  • Windows 7/8/10、Linux

  • 9-19V DC IN, 15W (standby state), 21W (rated power)

Specification of Compact Core I3/I5/I7 Box PC

Performance
ChipsetIntel® Core™ I5-6200U CPU
Ram4GB DDR3L SO-DIMM (RAM 8GB optional)
Hardware monitorMonitor voltage, CPU, TEMP
Watchdog Timer0-255 sec by software
Storage64G mSATAII SSD
O/SWindows 7/8/10, Linux
Power Supply9-19V DC IN, 15W (standby state), 21W (rated power)
I/O Ports
USB2*USB 2.0+4*USB 3.0
COM6*RS232 (1~2*RS485/RS422 optional)
Ethernet2* Intel® I211Gigabit network interface
Audio1*Line-out+1*Mic
Display1*VGA, 1*HD
MiniPCIE1*MINI PCIe
GPIO1*4in/4out (Occupy 1*DB9 )
Environment
Anti-vibration5-19Hz/1.0mm amplitude
19-200Hz/1.0g acceleration
Anti-shockAcceleration 10g/11ms
Reliability:MTBF≥50000h; MTTR≤0.5h
Working Temp-20℃~60℃ with airflow
Storage Temp-40℃ ~80℃
Humidity95% @40℃, non-condensing
Mechanical
Dimension:180 * 148 *55mm
MaterialAluminum alloy fanless design
Weight1.1kg/1.3kg (N.W/G.W)
ColorBlack

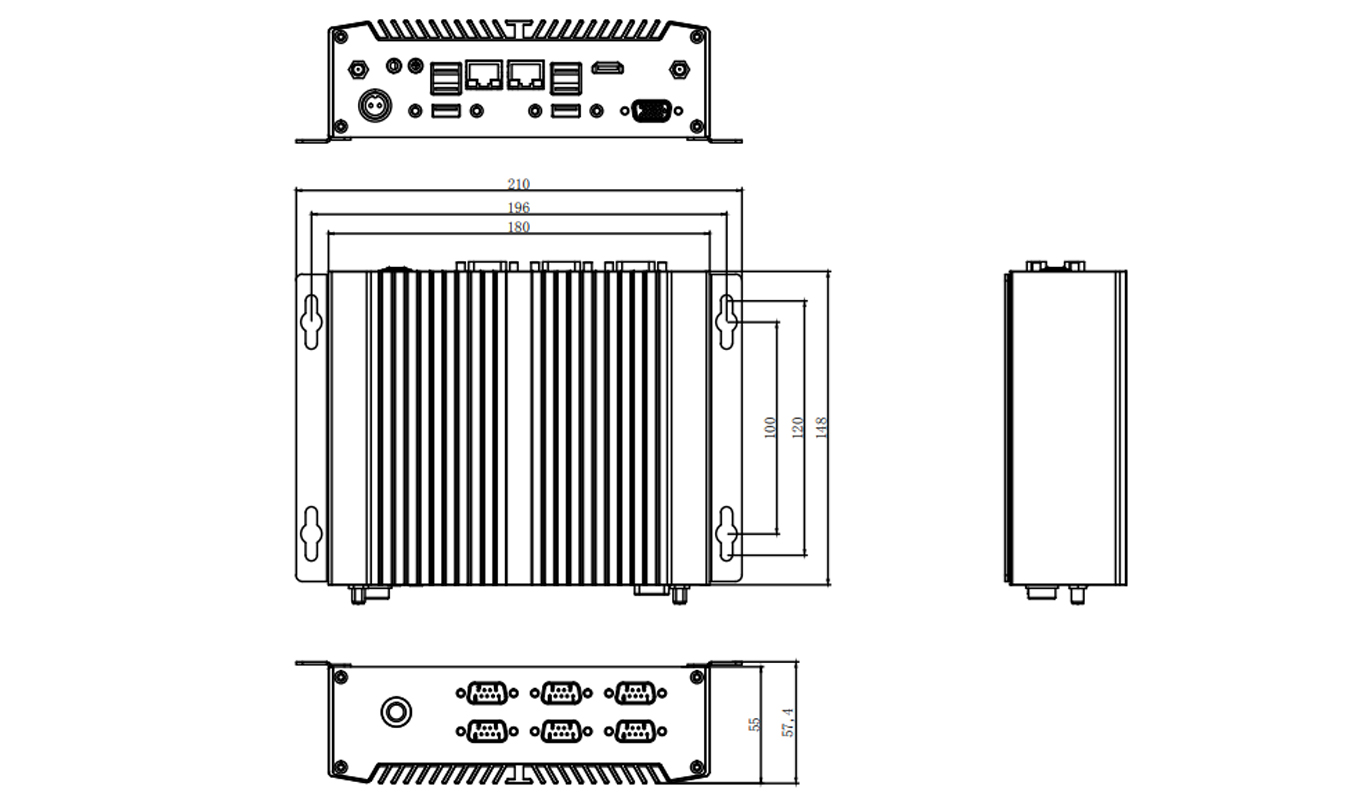

Dimension of Compact Core I3/I5/I7 Box PC

Dimension of Compact Core I3/I5/I7 Box PC

Accessories of Compact Core I3/I5/I7 Box PC

Packing List

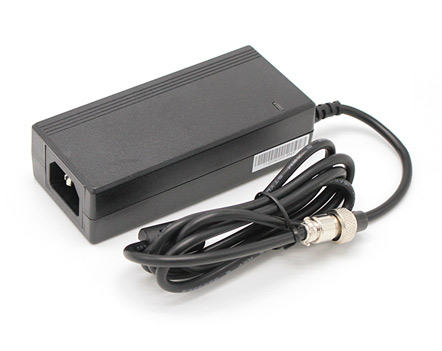

power adapter of fanless pc windows 10
power adapter of fanless pc windows 10

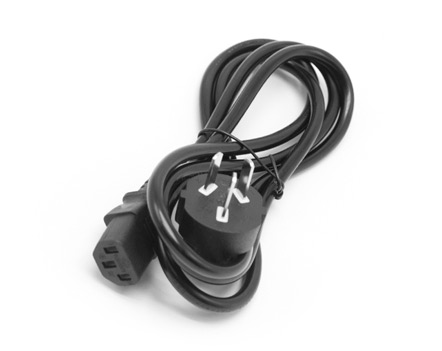

power supply of fanless pc windows 10
power supply of fanless pc windows 10

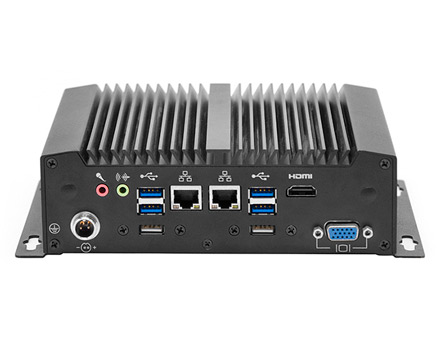

device of fanless pc windows 10
device of fanless pc windows 10
