Intel® Celeron® J1900 quad-core clocked at 2.0-2.44GHz
8GB DDR3-1333MT/s
USB2.0*7/USB3.0*1/RS232*4/HD*1
Support DIN Rail mount
Gigabit LAN*2
Equipped with ubuntu 20.04 system
| System Hardware | |||
| CPU | Intel® Celeron® J1900 quad-core 2.0-2.44GHz processor | Watchdog | Support hardware reset function (256 levels, 0~255 seconds) |
| Memory | 8GB DDR3-1333MT/s | Power Supply | 12V DC aviation plug input (9~36V wide voltage module optional) |
| Storage | Standard 64GB (Optional 128GB/256GB/512GB) | ||
| OS | |||
| OS | ubuntu 20.04, win7/8/10 | ||
| I/O Ports | |||
| USB | 7*USB2.0/1*USB3.0 | Audio | 1*HD |
| Serial Port | 4*RS232 (optional RS485/422) | Video | 1*Mini PCIE(WIFI/BT/4G) |
| LAN | 2*1000M network interface | Expand | Optional (occupies a COM port) |
| Environment | |||
| Vibration Protection | 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration | Operating Temp. | -20℃～60℃ Surface air flow |
| Shock Protection | acceleration 10g/11ms | Storage Temp. | -40℃～70℃ |
| Reliability | MTBF≥50000h; MTTR≤0.5h | Humidity | 80% @50℃, no condensation |
| IP Protection Class | IP54 | ||
| Mechanical | |||

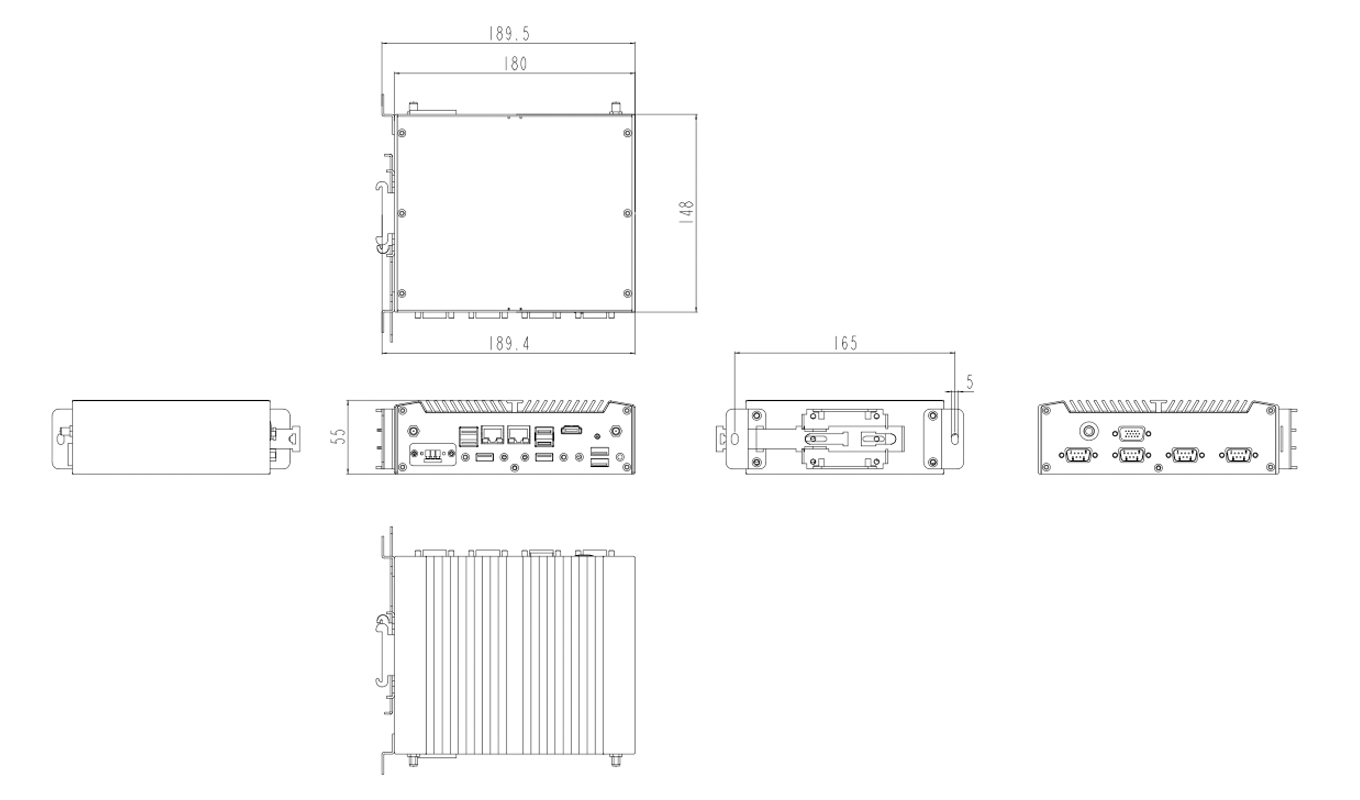

| Dimension (LxWxH) | 189.5mm*148mm*55mm | Material | All metal fanless design |
| Weight | 1.65kg/1.71kg(N.W/G.W) | Mounting | Universal DIN Snap |
| Color | black | ||
