Intel® Celeron® i7-8565U @1.80-4.6GHz
8GB DDR4, up to 32GB

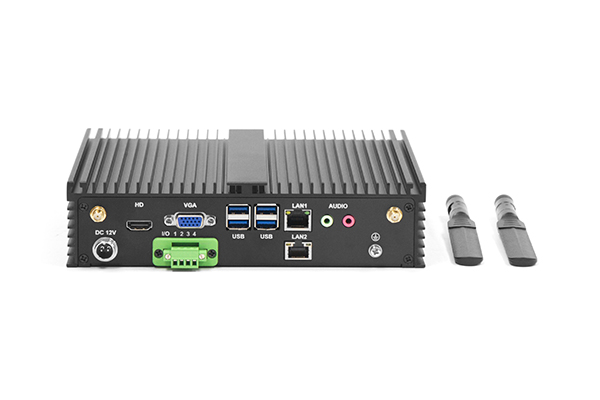

USB2.0*4/USB3.0*4/RS232*6/HD*1/Vga*1
Gigabit LAN*1/100M LAN*1/Audio*2
Intel® Celeron® i7-8565U @1.80-4.6GHz
Optional Core™ 8th generation i3/i5

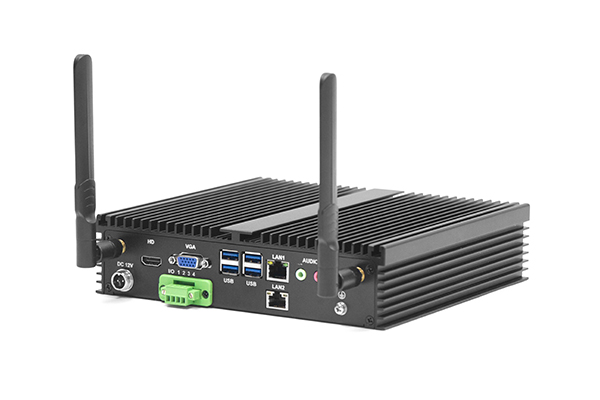

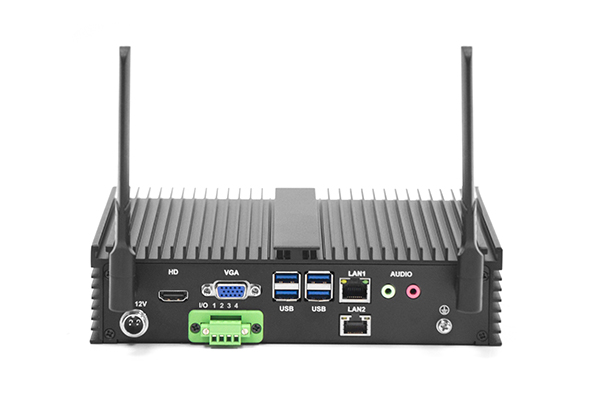

USB2.0*4/USB3.0*4/RS232*6/HD*1/Vga*1
Dual band WIFI+BT, External Dual Antenna
GPIO*4 (2in/4OUT)
Ultra thin design
| System Hardware | |||
| Chipset | Intel® i7-8565U (optional Core™ 8th generation i3/i5) | Memory | 8GB DDR4, up to 32GB |
| Watchdog | 0-255 seconds/classification is realized by system software | Storage | 64GB, optional 128/256/512GB |
| OS | |||
| OS | Win10, Linux | ||
| I/O Ports | |||
| USB | 4*USB2.0/4*USB3.0 | Video | 1*HD, 1*VGA |

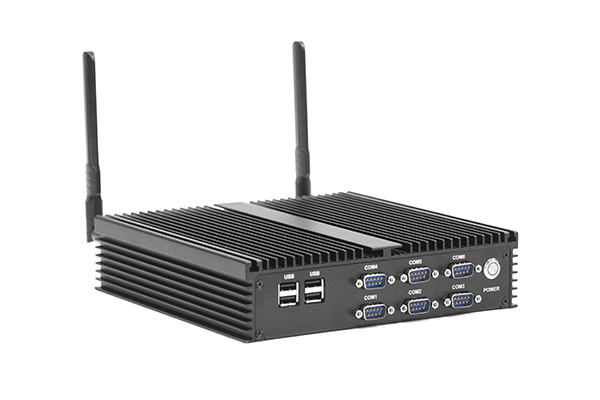

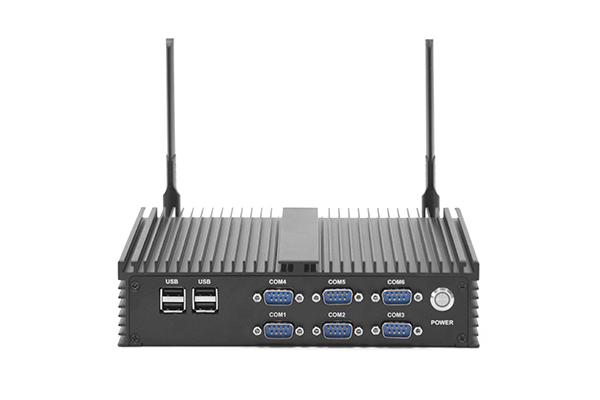

| Serial port | 6*RS232 (Optional 1-3*RS485) | GPIO | 4 * GPIO (2in/4out), connected through Phoenix terminal |
| LAN | 1*1000M/1*100M network interface | Expand | Dual band WIFI+BT, external dual antenna |
| Audio | MIC in, Line out | ||
| Power | |||
| Power Input | 12V5A DC input (9-36V wide voltage optional), standard 12V5A aviation plug adapter | ||
| Environment | |||
| Vibration Protection | 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration | Operating Temp. | -20 ℃ ～ 60 ℃ Surface air flow |
| Shock Protection | 10g acceleration, 11ms cycle | Storage Temp. | -40 ℃ ～ 70 ℃ |
| Reliability | MTBF ≥ 50000h; MTTR ≤ 0.5h | Humidity | 80% @50 ℃, no condensation |
| IP Rating | IP54 | ||
| Mechanical | |||

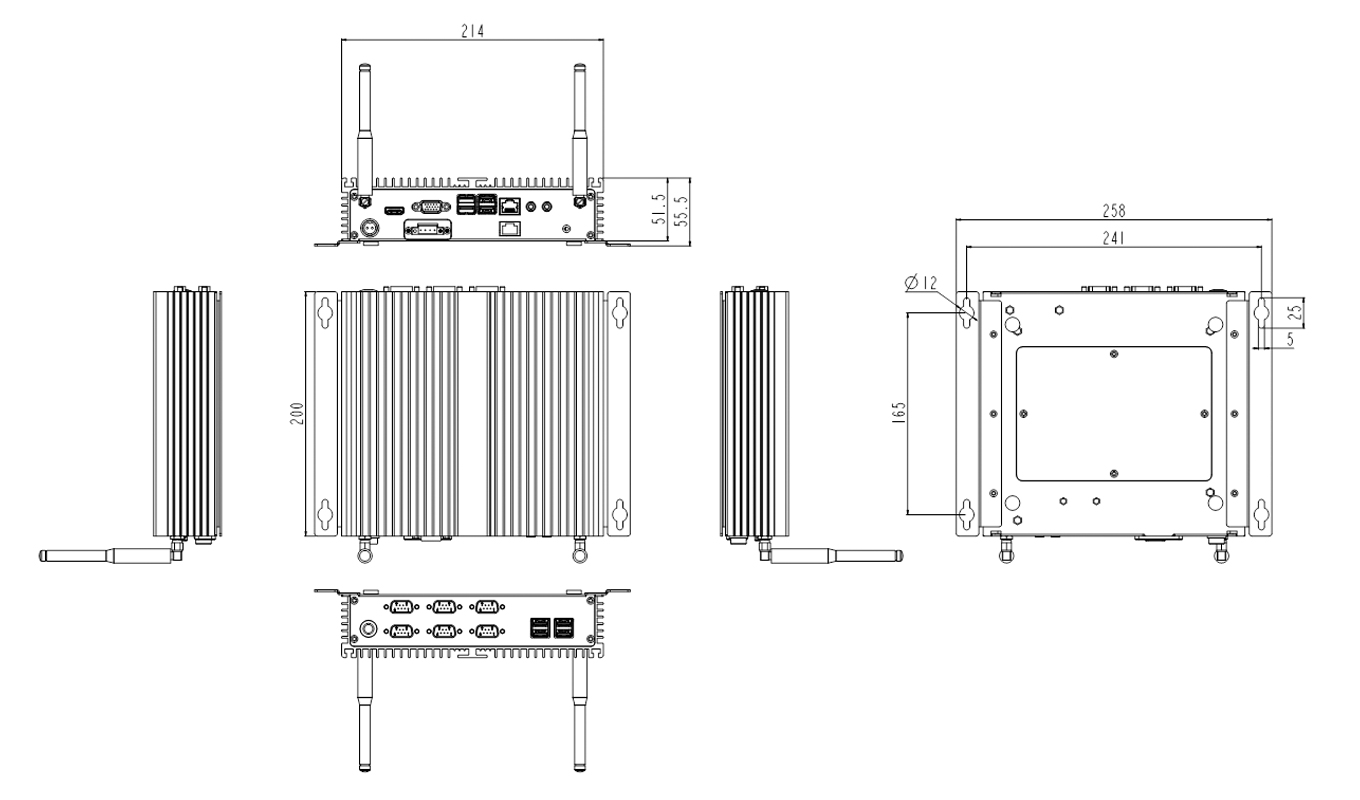

| Dimension (WxHxD) | 214*200*55.5mm | Material | All metal fanless design |
| Weight | 2.8kg/3.6kg(N.W./G.W.) | Mounting | Fixed installation of supports on both sides |
| Color | black | ||
