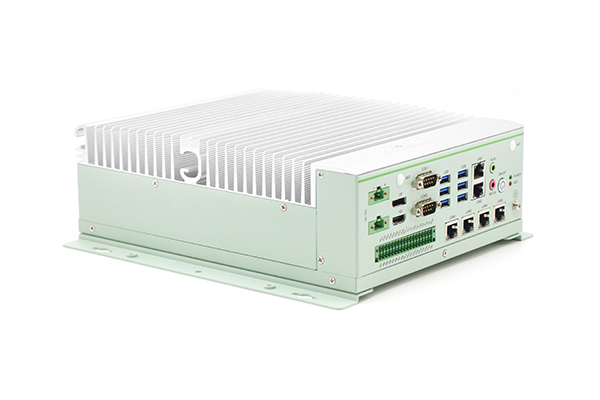

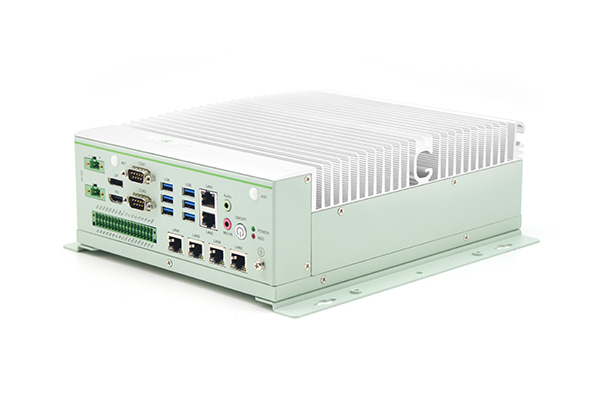

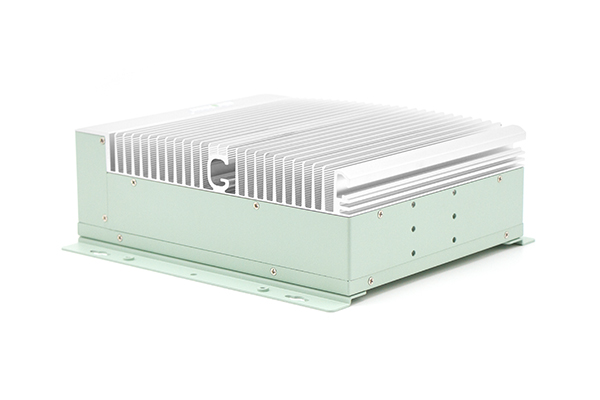

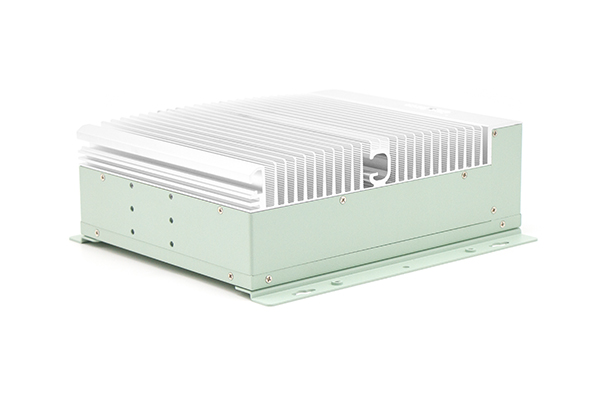

Intel 12th/13th Gen. i3/i5/i7 Fanless Box PC

PC-GS6277A

Intel® 12th/13th Core ™ i3/i5/i7 series or Pentium®, Celeron® series desktop processor

H610 chipset (optional Q670)

2*DDR4 3200MHz Sodimm, maximum 64GB

Support HD+DP, 2+1 display

Get A Quote
Video Spec Download
Benefits
Specification
Dimension

Benefits of Intel 12th/13th Gen. i3/i5/i7 Fanless Box PC

  • Intel® 12th/13th Core ™ i3/i5/i7 series or Pentium®, Celeron® series desktop processor

  • 1*m.2 E-key 2230, supports Gigabit WIFI module

  • 2*SATA3.0 Easy to insert hard disk frame, 1*full size MSATA, with SIM card slot

  • Wide pressure power supply DC 9-36V, with overcurrent anti-connection protection

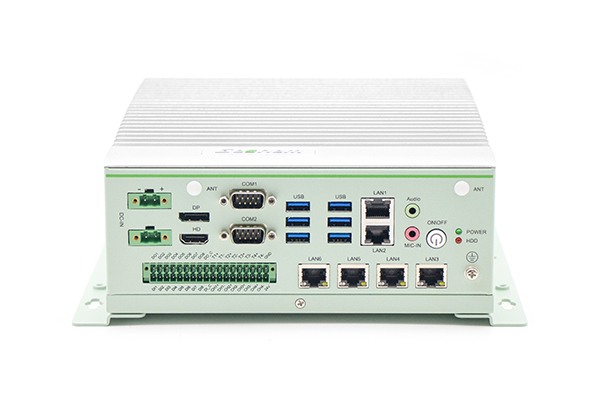

  • 6*USB3.0/6*RJ45/2*RS232/8DI*8DO

Specification of Intel 12th/13th Gen. i3/i5/i7 Fanless Box PC

System Hardware
CPUIntel® 12th/13th-Gen Core ™ i7/i5/i3/Pentium®/Celeron® LGA 1700 processor, maximum 8 core 16 threadsMemory2*260-pin sodimm, dual-channel DDR4 3200MHz, maximum support 64GB
ChipsetIntel® H610Storage2*2.5 "SATA3 6.0Gbps HDD/SSD easy inserting hard disk frame
1*m.2 2280 m-key (supports SATA/PCIE-X4)
GraphicsIntel® UHD Graphics, SUPPORTS DIRECTX11.1, OpenGL 5.0 and OpenCl 2.1 or PCIe X16 graphics display interface (half long)

WatchdogProgrammable timeout interruption or system reset, 1 to 255 seconds

OS
OSSupport Win10/Win11 and various versions of linux versions of operating systems
I/O Ports
USB6 USB3.0 interfaces, 2 USB2.0 (built -in)Expand1*M.2 2230 E-Key (supports wifi+Bluetooth)
1*M.2 3042/52 B-Key (4G/5G module), with the SIM card slot
COM2*RS232, you can select RS232/485/422 mode through BIOSSwitch1*Power SW
LAN6*RJ45 Gigabit network port, LAN1 uses Intel® I225LM network card chip, LAN2 uses Intel® i211AT network card chip, of which LAN3 ~ 6 supports the POE 802.3AF standard.Indicator Light1*Power indicator light (green, often on after booting), 1*HDD hard disk indicator (red, flashing)
Audio1*DP1.2 (maximum output resolution: 7680x4320 @ 60Hz)
1*HD 2.0B (maximum output resolution: 4096x2160@60Hz)


Video1*Audio-OUT & 1*MIC dual 3.5mm Phone Jack interface

GPIO8DI*8DO, Four Road Light Source Output

Power
Power SupplyDC in 18 ~ 36V, 2*2pin lock -to -threaded thread plug -in wiring terminal 5.08mm
Power ConsumptionThe power consumption of the whole machine is 260W. If you want to use the 24V light source output, you must also use 24V fixed voltage

Environment
Vibration Protection5grms/5~500Hz/random/working status (SSD); 1grms/5~500Hz/random/working status (HDD)Operating Temp.-25 ~ 60°C, no fan, wide temperature SSD, air flow
-10 ~ 55°C, no fan, room temperature SSD, air flow
Shock Protection50g peak acceleration (lasting 11ms) (SSD);
20g peak acceleration (lasting 11ms) (HDD)
Storage Temp.-40°C ~ 85°C
ReliabilityMTBF≥50000h; MTTR≤0.5hHumidity10 ~ 90%@40°C, no condensation




Mechanical
Dimension (WxHxD)262*205*87.69mmMaterialAluminum rectangular material heat dissipation shell, SGCC box body
Weight4.5kg

ColorSilver white+green

Ordering Information
PC-GS6277AP0H610 Chipset/LGA1170 12/13th Gen. Core ™ i3/i5/i7 series or Pentium®, Celeron® series desktop processor/2*SO-DIMM DDR4/2*2.5 inches /1*m.2 2280 m- Key (supports SATA/PCIE-X4)/2*COM/1*DP+1*HD/2*LAN+4*POE LAN/1*Audio/6*USB 3.0 Type A+2usb 2.0/16- Bit Dio/1*M.2 2230 E-Key (supports WIFI+Bluetooth) /1*m.2 3042/52 B-key (4G/5G module), with SIM card slot/18-36VDC/No extension
Optional CPUi9-12900, i7-12700, i5-12600, i5-12500, i5-12400, i3-12300, i3-12100, G7400, G6900 (BIOS must limit power consumption to 35W)
i9-12900T, i7-12700T, i5-12600T, i5-12500T, i5-12400T, i3-12300T, i3-12100T, G7400T, G6900T, G6900T
(CPU SOCKETS FCLGA1700)

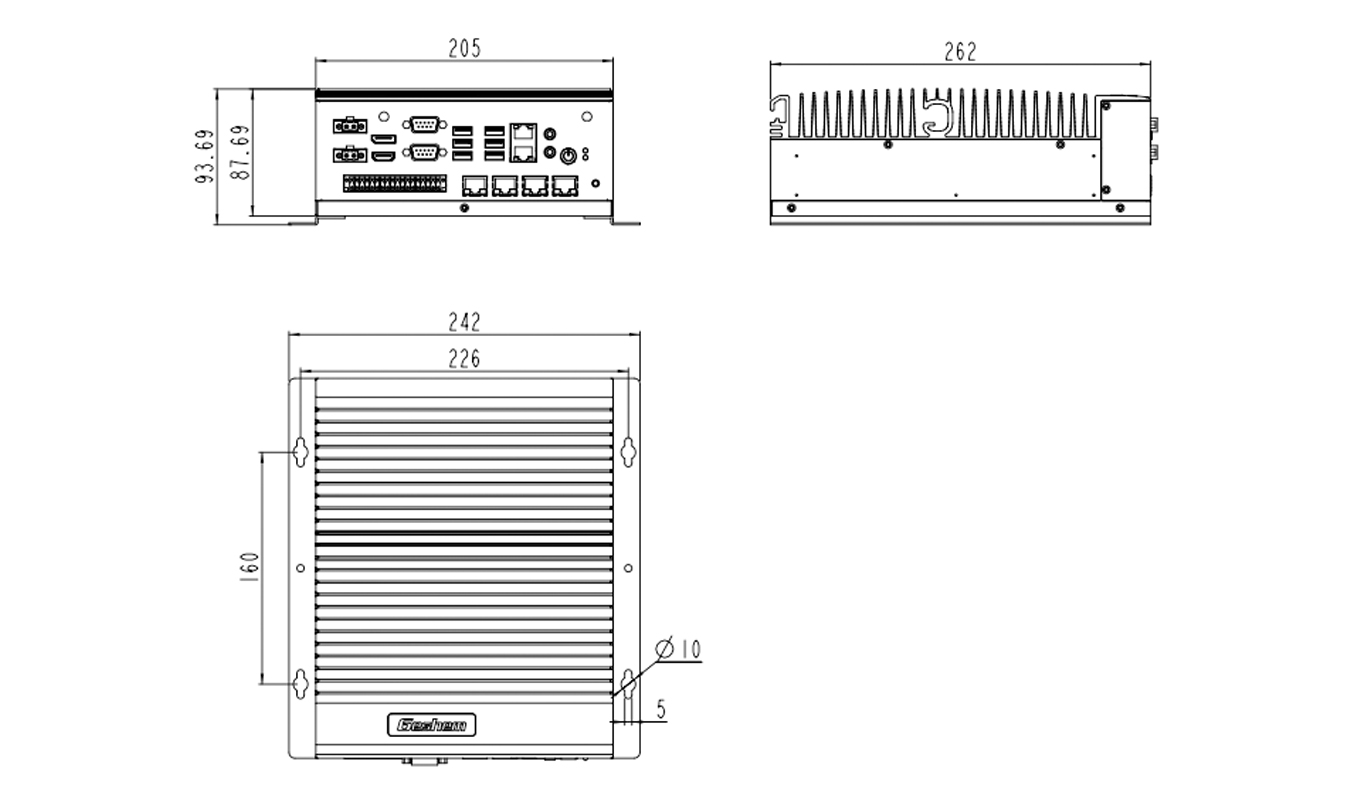

Dimension of Intel 12th/13th Gen. i3/i5/i7 Fanless Box PC
