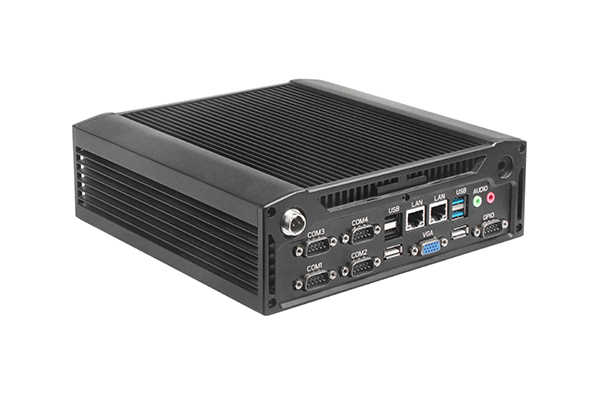

Embedded Box PCs

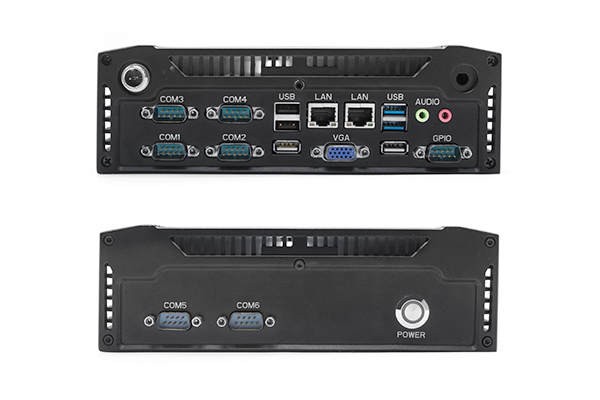

Embedded Box

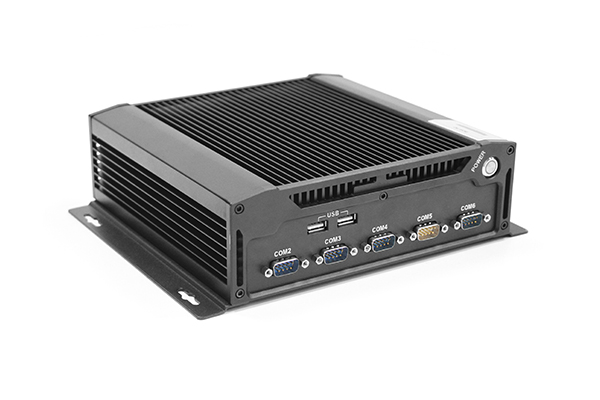

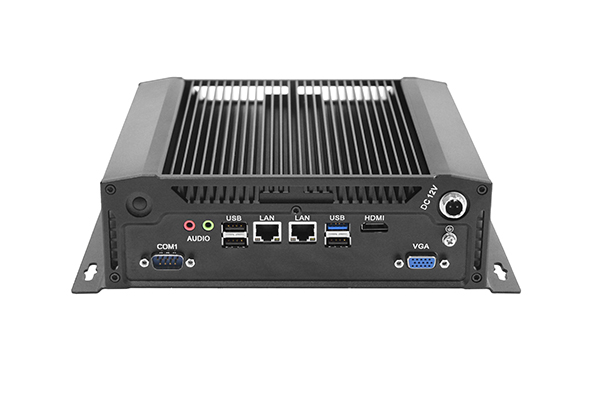

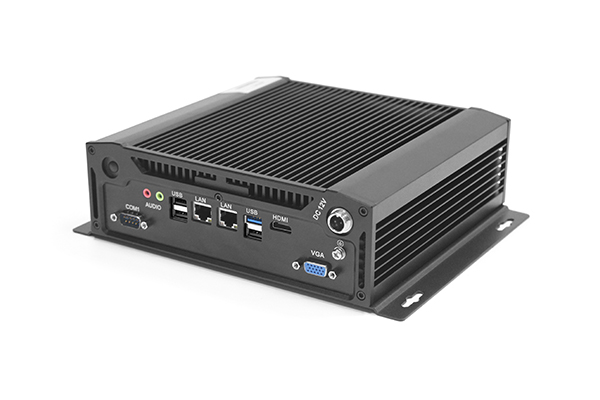

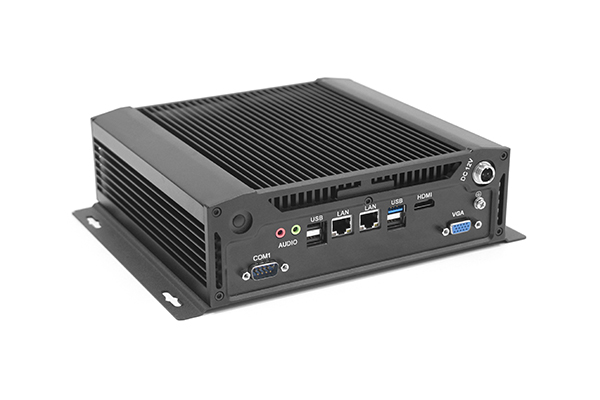

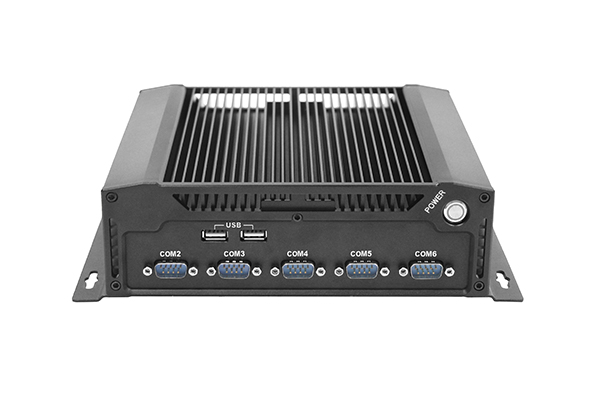

Expandable J1900 Box PC

PC-GS5052A

J1900/3855/3865/Core i3/i5/i7 CPU;

Fully sealed fanless design;

RAM: 2GB DDR3/DDR4;

6*USB+6*COM;

2*Intel GbE RJ45 1000M;

1*VGA+1*HDM.

Get A Quote
Spec Download
Benefits
Specification
Dimension
Accessories

Benefits of Expandable J1900 Box PC

  • J1900/3855/3865/Core i3/i5/i7 CPU

  • J1900: 2GB DDR3, up to 8GB

  • 3855U/3865U/Core: 2GB DDR4, up to 16GB

  • Monitor voltage, CPU, TEMP

  • 0-255 sec by software

  • SSD: 64GB, up to 512GB

  • Windows 10、Linux (J1900 support Win7)

  • 9-24V DC-IN

  • (12V/5A power adapter, 9-36V DC optional)

Specification of Expandable J1900 Box PC

Performance
ChipsetJ1900/3855/3865/Core i3/i5/i7 CPU
RamJ1900: 2GB DDR3, up to 8GB
3855U/3865U/Core: 2GB DDR4, up to 16GB
Hardware monitorMonitor voltage, CPU, TEMP
Watchdog Timer0-255 sec by software
StorageSSD: 64GB, up to 512GB
O/SWindows 10, Linux (J1900 support Win7)
Power Supply9-24V DC-IN
(12V/5A power adapter, 9-36V DC optional)
I/O Ports
USBJ1900: 5*USB2.0+1*USB3.0
Core i3/i5/i7/3855U/3865U: 2*USB2.0+4*USB3.0
COM6*RS232(1~2*RS485/RS422 optional)
Ethernet2*Intel GbE RJ45 1000M
Audio1*Line-out+1*Mic
Display1*VGA, 1*HDMI
MiniPCIE1*MiniPCIe(support WIFI/BT/3G/4G)
GPIO/
Environment
Anti-vibration

5-19Hz/1.0mm amplitud

e19-200Hz/1.0g acceleration

Anti-shockacceleration 10g/11ms
Reliability:MTBF≥5000h; MTTR≤0.5h
Working Temp-20℃~70℃, with airflow
Storage Temp-30℃~80℃
Humidity95% @40℃, non-condensing
Mechanical
Dimension:211.5mm(L)*200mm(W)*67mm(H)
MaterialHigh-strength & elegant Al-alloy, fanless design
Weight2.6kg/4.0kg (N.W/G.W)
ColorBlack

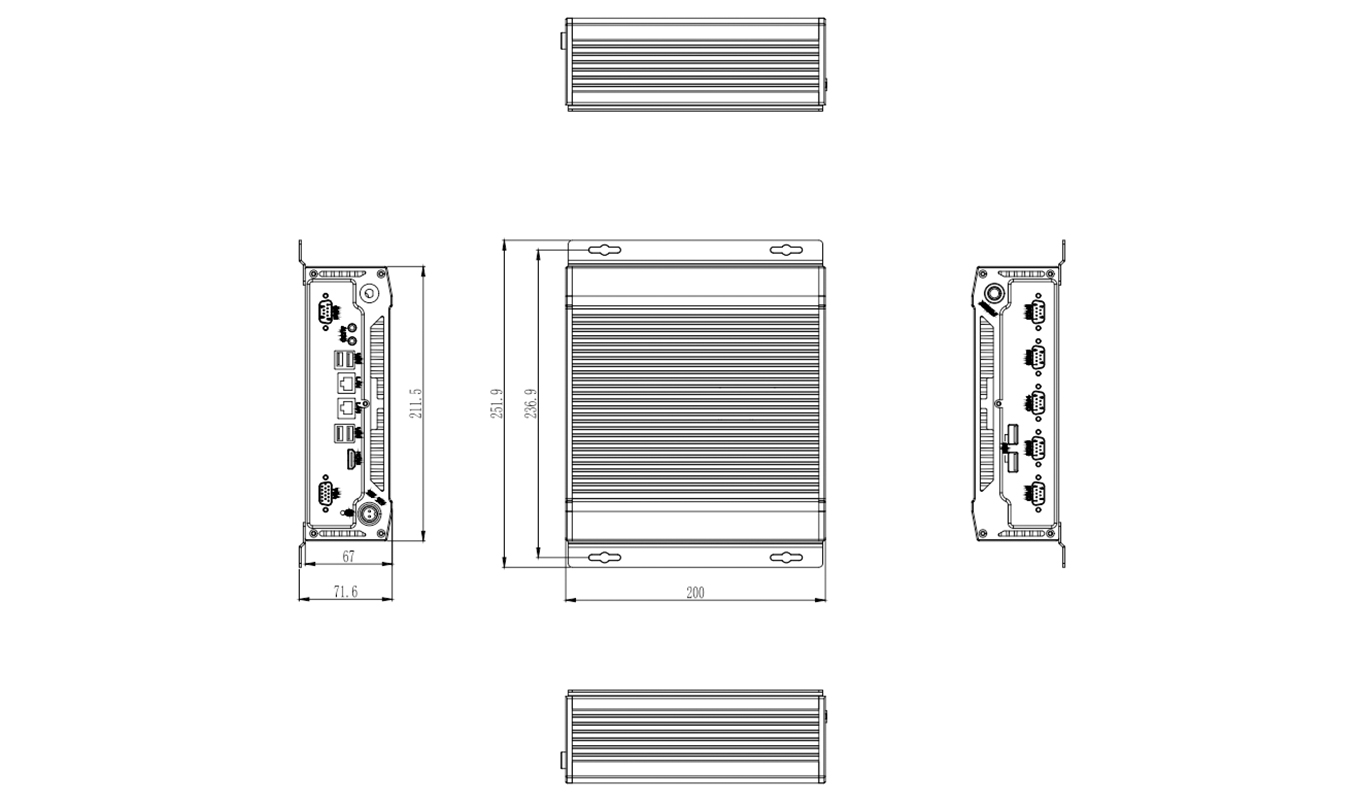

Dimension of Expandable J1900 Box PC

Deminsion of Expandable J1900 Box PC

Accessories of Expandable J1900 Box PC

Packing List

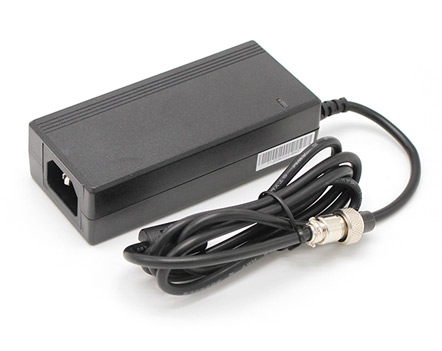

Power Adapter of Embedded Box PCs
Power Adapter of Embedded Box PCs

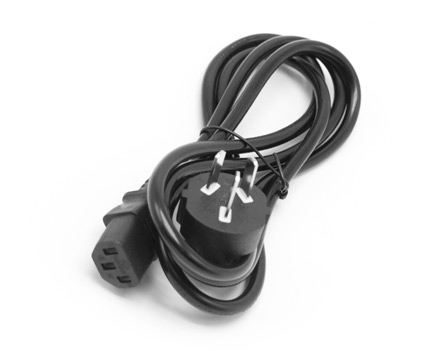

Power Supply of Embedded Box PCs
Power Supply of Embedded Box PCs

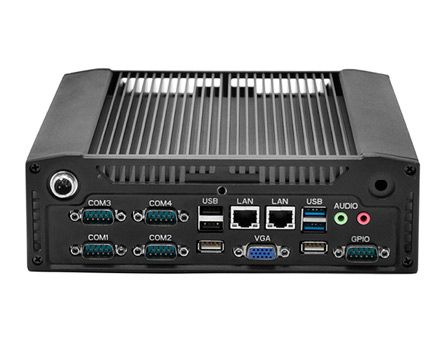

Device of Fanless Embedded Box
Device of Fanless Embedded Box
