Intel® Celeron® J4125 Low Power High Performance Processor
Standard 8GB memory
Standard 128G solid state hard drive, maximum support 1TB
2*USB3.0+7*USB2.0, 6*RS232
1*HD, 1*VGA
1*1000M network interface
Dual-band WIFI+BT4.0
1*GPIO(2in/2out)
All metal fanless design
System Hardware | |||
Chipset | Intel® Celeron® J4125 Processor | Watchdog | 0-255 seconds/classification is realized by system software |
Memory | 8GB DDR4 | Power | 12V DC (air plug 2Pin) input, standard 12V5A air plug adapter |
Storage | 64G mSATA SSD (optional 128GB/256GB/512GB/1TB) | ||
Hardware Monitor | Voltage and CPU temperature monitoring | ||
OS | |||
OS | Windows 7/8/10, Ubuntu | ||
I/O Ports | |||
USB | 2*USB 3.0+7*USB2.0 (with anti-drop structure) | Video | 2*Speaker(L/R, 3.5mm Audio jack) 2*Audio audio interface (Mic-in, Line-out) |
Serial Port | 6*RS232 | GPIO | 1*GPIO(2in/2out) |
LAN | 1* 1000M network interface | Expand | 1*MINI PCIe(WIFI(2.4/5.8G)+BT4.0) |
Audio | 1*HD, 1*VGA | 1*MINI PCIe(WIFI(2.4/5.8G)+BT4.0) | |
Environment | |||
Vibration Protection | 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration | Operating Temp. | -20℃~60℃ Surface air flow |
Shock Protection | acceleration 10g/11ms | Storage Temp. | -40℃~70℃ |
Antistatic | Contact 6KV, air 10KV | Humidity | 95% @40℃, no condensation |
Reliability | MTBF≥50000h; MTTR≤0.5h | ||
Mechanical | |||

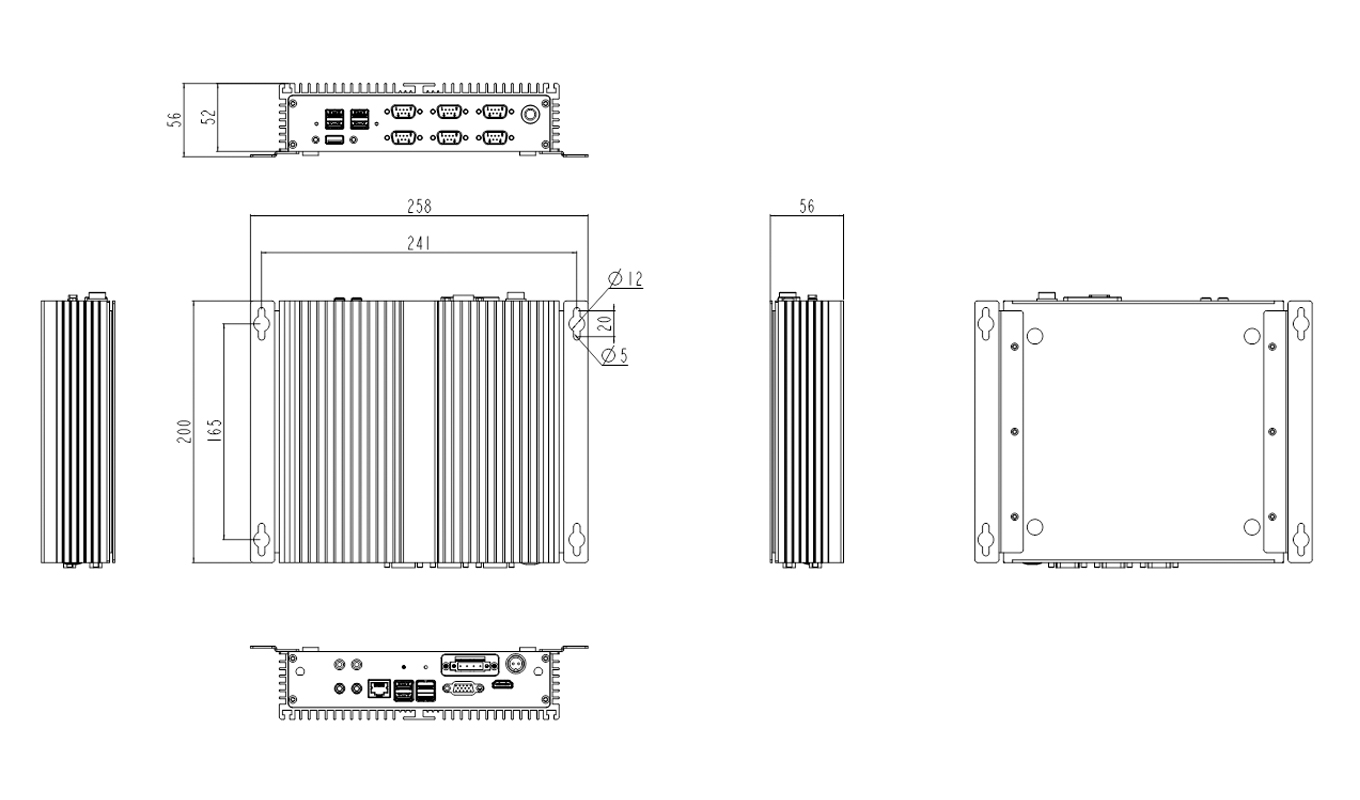

Dimension(LxWxH) | 214mm*200mm*52mm (without bracket) | Color | black |
Weight | 1.8Kg/2.5Kg(N.W/G.W) | Material | Aluminum alloy fanless design |
