Expandable Core I3/I5/I7 Box PC

PC-GS507XA

Intel® Core™ 6th I3/I5/I7 high-performance low-power processor;

Sealed, fanless and dust-proof design;

Standard 4GB memory, maximum support 8GB;

6*USB/6*COM/1*VGA /1*HDMI;

2*Intel® I211 Gigabit network interface;

2*Audio audio interface (Line-out, MIC-in).

Get A Quote
Spec Download
Benefits
Specification
Dimension
Accessories

Benefits of Expandable Core I3/I5/I7 Box PC

  • Intel® Core™ 6th I3/I5/I7

  • 4GB or 8GB RAM(DDR4)

  • Monitor voltage, CPU, TEMP

  • 0-255 sec by software

  • SSD/HDD

  • Windows8/10  64bit、Linux、Ubuntu

  • 9~24V DC input/optional 9~36V DC input (with isolation)

Specification of Expandable Core I3/I5/I7 Box PC

Performance
ChipsetIntel® Core™ 6th I3/I5/I7
Ram4GB or 8GB RAM(DDR4)
Hardware monitorMonitor voltage, CPU, TEMP
Watchdog Timer0-255 sec by software
StorageSSD/HDD
O/SWindows8/10 64bit, Linux, Ubuntu
Power Supply9~24V DC input/optional 9~36V DC input (with isolation)
I/O Ports
USB2*USB 2.0+4*USB 3.0
COM6*RS232(485/422 optional)
Ethernet2* Intel® I211Gigabit network interface
Audio1*Line-out+1*Mic
Display1*VGA +1*HD
MiniPCIE1*MINI PCIe
GPIO
Environment
Anti-vibration5-19Hz/1.0mm amplitude
19-200Hz/1.0g acceleration
Anti-shockacceleration 10g/11ms
Reliability:MTBF≥50000h; MTTR≤0.5h
Working Temp-20℃~70℃, with airflow
Storage Temp-30℃~80℃
Humidity95% @40℃, non-condensing
Mechanical
Dimension251.9 * 200 *71.6mm
MaterialAluminum alloy fanless design
Weight2.6kg/3.5kg (N.W/G,W)
ColorBlack


Dimension of Expandable Core I3/I5/I7 Box PC

Dimension of Expandable Core I3/I5/I7 Box PC

Accessories of Expandable Core I3/I5/I7 Box PC

Packing List

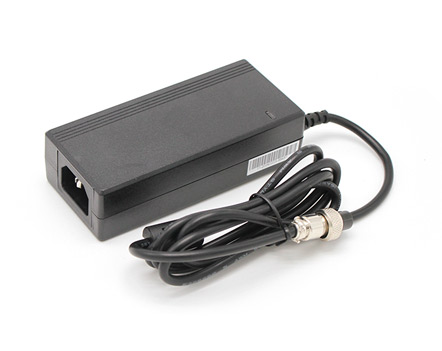

power adapter of embedded box
power adapter of embedded box

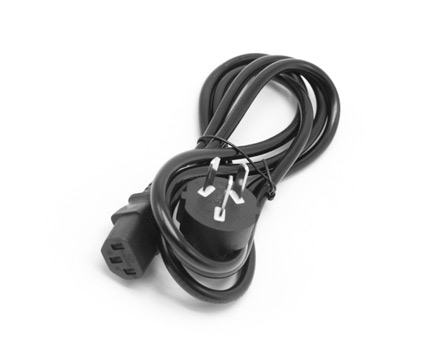

power supply of embedded box computers
power supply of embedded box computers

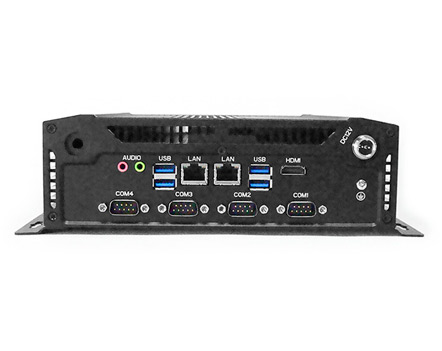

device of fanless embedded box
device of fanless embedded box
