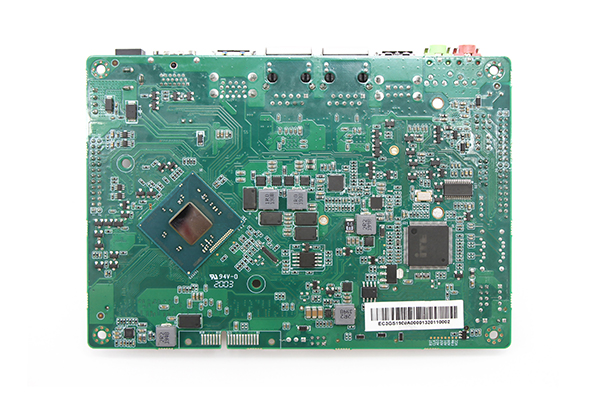

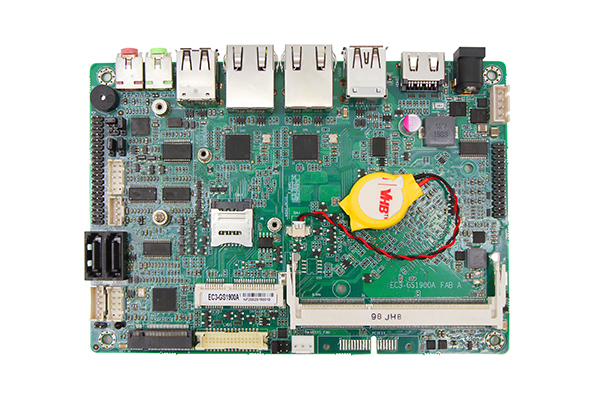

EC3 J1900 Industrial Motherboard

EC3-GSJ1900A

Onboard Intel Celeron J1900 processor;

Standard 3.5" motherboard;

Support 2*MiniPCle;

Support 6*COM;

2*GbE LAN.

Get A Quote
Benefits
Specification
Dimension

Benefits of EC3 J1900 Industrial Motherboard

  • Onboard Intel Celeron J1900

  • 2GB or 4GB ram

  • Monitors voltage, CPU, TEMP

  • 0-255 sec by software

  • SSD

  • Win 7, Win 10, Linux

  • 9-24V DC IN(12V/5A power adapter)

Specification of EC3 J1900 Industrial Motherboard

System Hardware
Dimension140*102mm, 6layer
ProcessorOnboard Intel Celeron J1900 processor
ChipsetIntegrated on CPU
Memory1*SO-DIMM DDR3L, Up to 4G
DisplayIntel HD Graphics
AudioRealtek HD ALC282
LAN2*Intel I211AT GbE LAN
Storage1*mSATA, 2*SATAII
Expansion1*Mini-PCI-E, support 3G/WIFI/BT
OS
OSWindows 7/8.X/ 10, Linux
I/O Ports
USB3*USB 2.0 + 1*USB3.0
LAN2* RJ45
Video1*HDMI
Audio1*Line-out, 1*Mic-in
1*DC-IN
Inside Pin
Serial port1*F_Pannel
1*F_Audio
6*RS232 pin
2*USB2.0 pin
1*VGA pin
1*two-path 24bit LVDS pin
1*SPK pin
1*2Pin ATX terminal
1*8 in/out GPIO pin
1*Clear CMOS
1*SYS_FAN
1*SIM slot
Power
Power Input9~24V DC Input
Power Consumption/
Environment
Operating Temp.-20℃~70℃, with airflow
Storage Temp.-20℃~60℃
Humidity85% @40℃, non-condensing

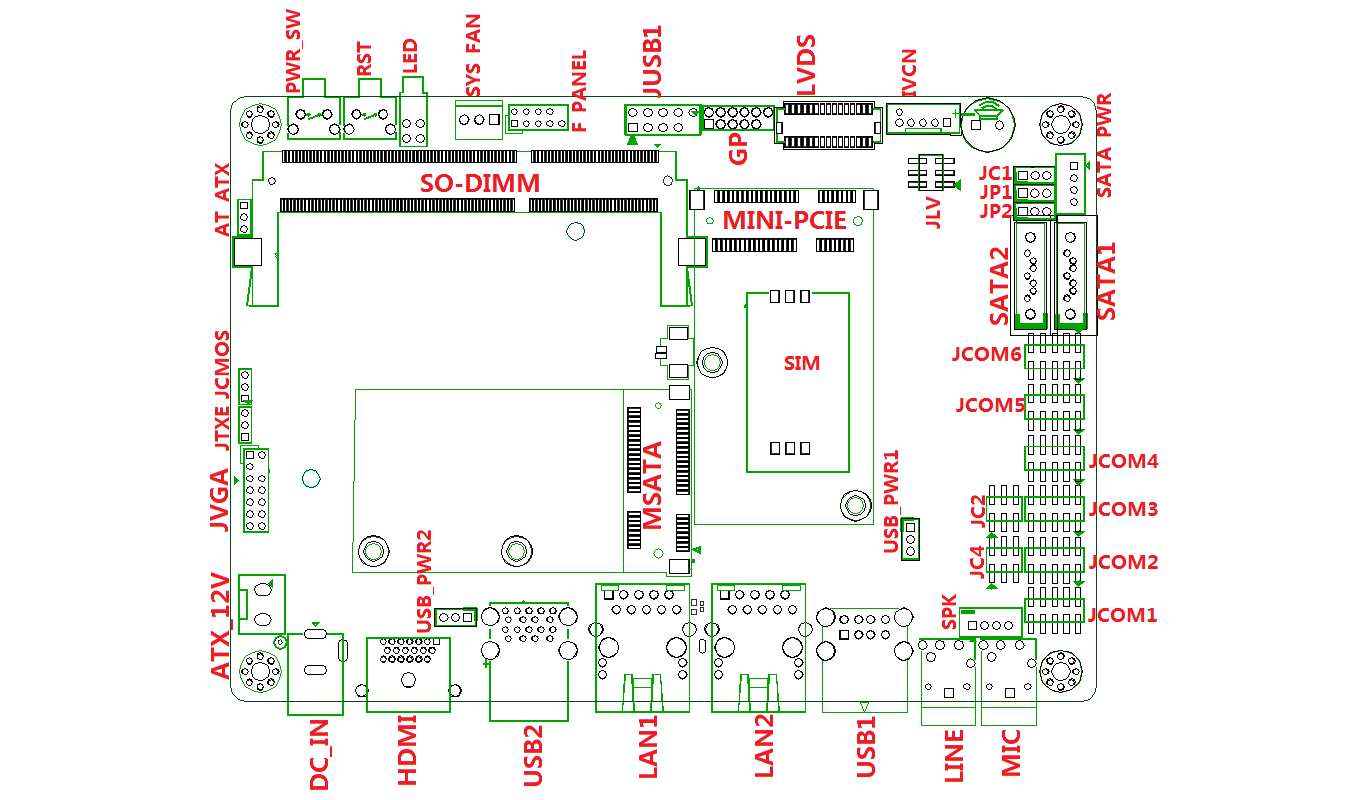

Dimension of EC3 J1900 Industrial Motherboard

Dimension of EC3 J1900 Industrial Motherboard
