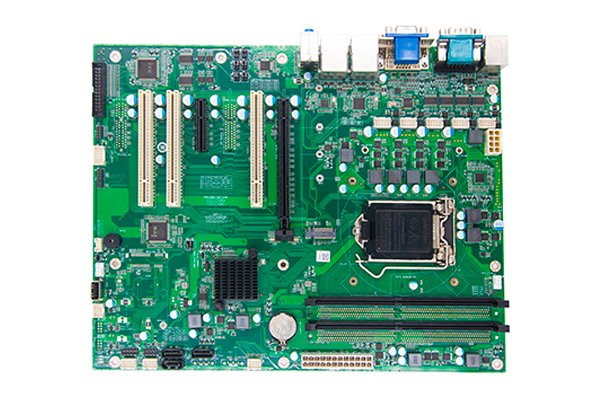

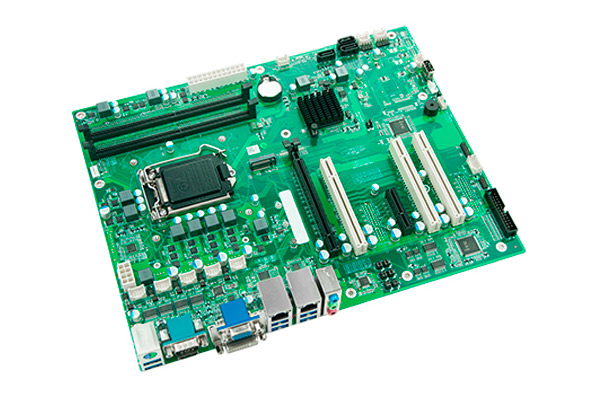

Industrial ATX motherboard based on Intel® H310C Supporting Intel® LGA1151 Gen6/7/8/9th i3/i5/i7 CPU, support Pentium®/Celeron® CPU with1×DVI, 1×VGA, 1×HD, 1×internal display expansion interface (optional), DDR4 2133/2400MHz/2666MHz DIMM, dual Gigabit ethernet, and LPT, USB and COM ports.
Intel® H310C support Intel® LGA1151 Gen6/7/8/9th i3/i5/i7 CPU, support Pentium®/Celeron® CPU
2× 288PIN DDR4 2133/2400MHz/2666MHz DIMM memory slots, single 16GB, maximum support 32GB
4 × SATA interface+1*M.2
Adopt high-density PCB laminate structure to fully ensure signal shielding and improve system stability
Snap-on interface design improves interface connection reliability and facilitates system maintenance
Provide on-board encryption scheme (optional), which can realize software and hardware binding or key data storage and encryption
Using Intel network chip to ensure high-speed and stable data transmission
| System Hardware | |
| CPU | Support Intel® LGA1151 Gen6/7/8/9th i3/i5/i7 CPU, support Pentium®/Celeron® CPU |
| Memory | Provide 2× 288PIN DDR4 2133/2400MHz/2666MHz DIMM memory slots, single 16GB, maximum support 32GB, 2400MHz requires intel 7th generation kabylake CPU support, 2666MHz requires 8th/9th generation coffeelake CPU support |
| Storage | Provide 4 × SATA interface (support SATA3.0 standard, default support 3, maximum transfer rate 6Gb/s), 1 × M.2 (SATA3.0) interface (can support M-key 22110, 2280, 2260, 2242) |
| Chipset | Intel® H310C |
| Watchdog | 255 levels, programmable sec/min, support timeout interrupt or system reset |
| Power Supply | Adopt ATX power supply, support S0, S1, S4, S5 |
| OS | |
| OS | Ubuntu15.1, Red Hat® Enterprise Linux® 32, 64, Win7 SP1, 8.1, 10, WES 7 |
| I/O Interface | |
| Display Interface | 1×DVI, 1×VGA, 1×HD, support independent dual display output; VGA supports maximum resolution 1920×1200@60HZ, 32bit color depth |
| Expansion Bus | Provide 1×PCIe x16 slot, support PCIe3.0 specification; 1×PCIe x4 slot (PCIe x4 signal), support PCIe2.0 specification; 3×32-bit PCI slot, support PCI Rev2.3 standard |
| USB | 6×USB2.0 ports, 4×USB3.0 ports are provided on the rear panel |
| COM | 6×COM, expandable to 10 RS232, among which COM1/COM2 supports RS-232/RS422/RS485 mode selection |
| PS/2 | 1×PS/2 keyboard/mouse interface |
| GPIO | 1×8 digital I/O interface |
| LPT | 1×LPT interface |
| Ethernet | Provide 2×10/100/1000Mbps network interface |
| Audio | Adopt HDA standard, support rear panel Mic-in, Line-in, Line-out |
| Environment | |
| Operating Temp. | -10℃～60℃; 5%～95% (non-condensing state) |
| Storage Temp. | -20℃～80℃, 5%～95% (non-condensing state) |
| Mechanical | |

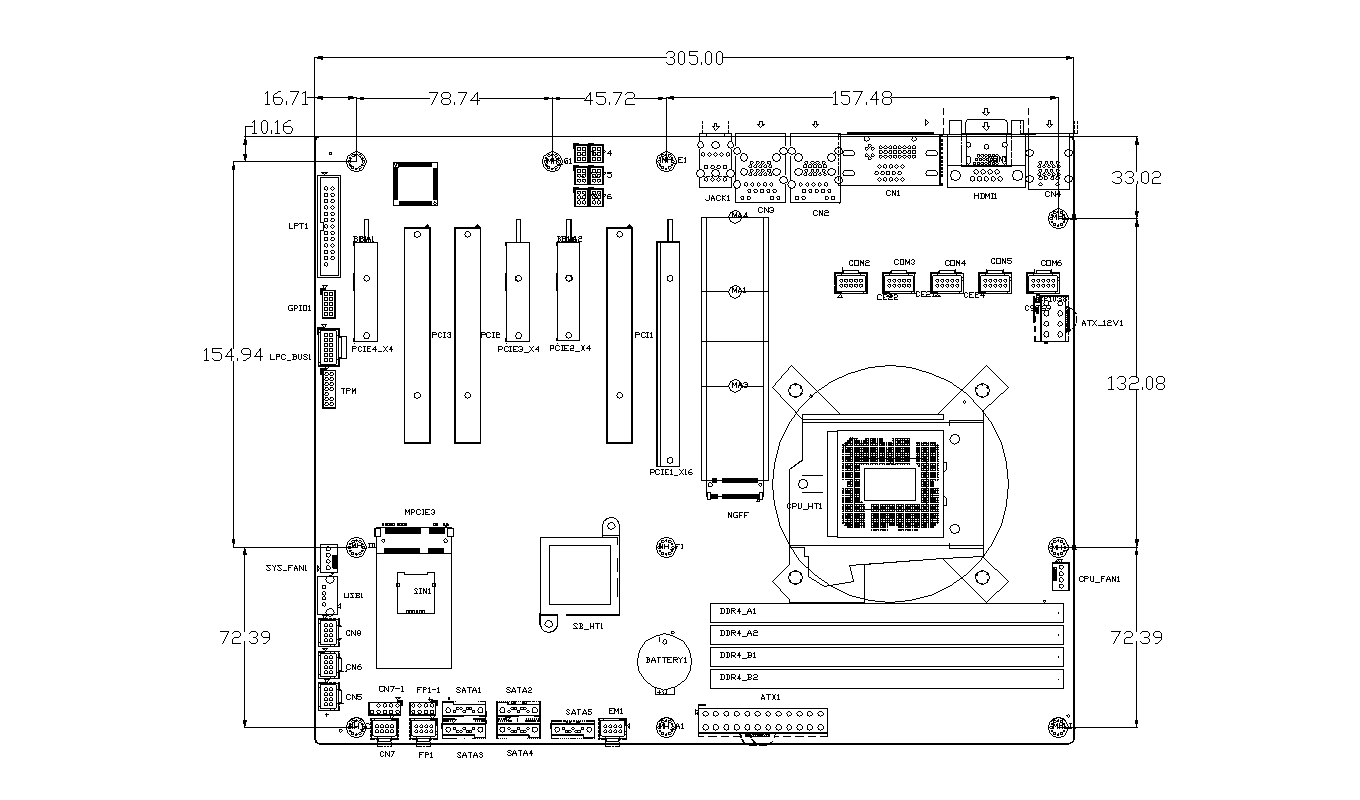

| Dimension (L x W) | 305mm*244mm |
| Ordering Information | |
| ATX-GSH310CK | ATX structure single board/Intel® H310C chipset/support Gen6/7/8/9th i3/i5/i7 CPU, support Pentium® /Celeron® /2×DDR4 DIMM memory slot, total support 32GB memory/VGA/HD/DVI /3×SATA/1×M.2/2×Gigabit LAN/6×USB2.0,4×USB3.0/6×COM/1×Parallel/2×PS/2/HD Audio/1×8 bit GPIO/3×standard PCI slot/1×PCIe x4/1×PCIe x16/standard ATX power supply |
