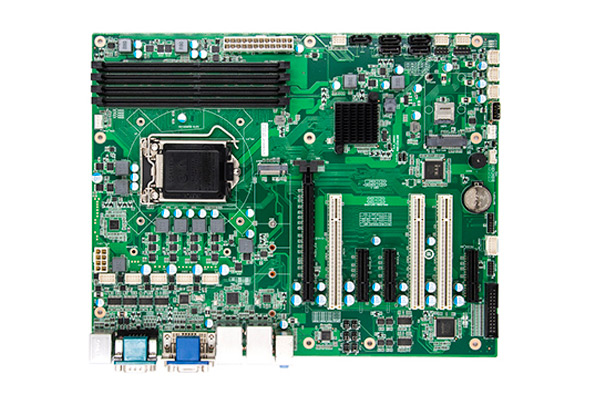

Industrial ATX motherboard based on Intel® B365 Supporting Intel® LGA1151 Gen6/7/8/9th i3/i5/i7 CPU.
Support Pentium®/Celeron® CPU with1*DVI, 1*VGA, 1*HD.
Support independent dual display output, DDR4 2133/2400MHz/2666MHz DIMM, dual Gigabit ethernet, and LPT, USB and COM ports.
Intel® B365 support Intel® LGA1151 Gen6/7/8/9th i3/i5/i7 CPU, Pentium®/Celeron® CPU
4*288PIN DDR4 2133/2400MHz/2666MHz DIMM memory slot, single 16GB, maximum support 64GB
6*SATA interface+1*M.2
Adopt high-density PCB laminate structure to fully ensure signal shielding and improve system stability
Snap-on interface design improves interface connection reliability and facilitates system maintenance
Provide on-board encryption scheme (optional), which can realize software and hardware binding or key data storage and encryption
Using Intel network chip to ensure high-speed and stable data transmission

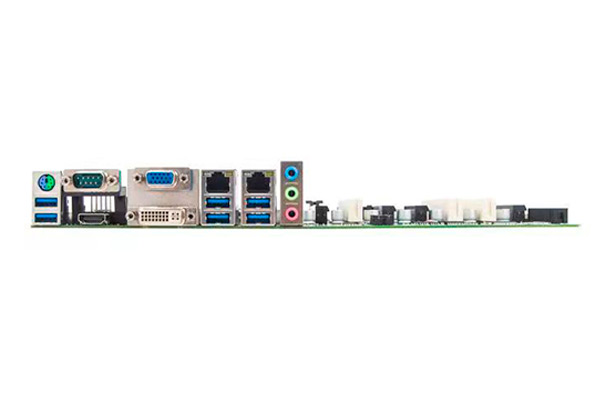

| System Hardware | |
| CPU | Support Intel® LGA1151 Gen6/7/8/9th i3/i5/i7 CPU, support Pentium®/Celeron® CPU |
| Memory | Can provide 4*288PIN DDR4 2133/2400MHz/2666MHz DIMM memory slot, single 16GB, maximum support 64GB, 2400MHz requires intel 7th generation kabylake CPU support, 2666MHz requires 8th/9th generation coffelake CPU support |
| Storage | Provide 6*SATA interface (support SATA3.0 standard, support 5 by default, maximum transfer rate 6Gb/s, support RAID 0, 1, 5, 10), 1*M.2 (PCIEx4 nVME) interface (supports M-key 22110, 2280, 2260, 2242) and PCIe2 x4 with a common channel: M.2 and PCIe2 each occupy 2 channels by default, and can be adjusted by jumping caps SEL1 and SEL2 Number of channels occupied |
| Chipset | Intel® B365 |
| Watchdog | 255 levels, programmable sec/min, support timeout interrupt or system reset |
| Power Supply | Adopt ATX power supply, support S0, S1, S4, S5 |
| OS | |
| OS | Ubuntu15.1, Red Hat® Enterprise Linux® 32, 64, Win7 SP1, 8.1, 10, WES 7 |
| I/O Interface | |
| Display Interface | 1*DVI, 1*VGA, 1*HD, support independent dual display output; VGA supports maximum resolution 1920×1200@60HZ, 32bit color depth |
| Expansion Bus | Provide 1*PCIe x16 slot, support PCIe3.0 specification;3*PCIe x4 slot (PCIe x4 signal), support PCIe3.0 specification; 3*32-bit PCI slots, support PCI Rev2.3 standard (the slot PCIe2 x4 and M.2 share the same channel;) |
| USB | 8*USB2.0 ports, 6*USB3.0 ports are provided on the rear panel |
| COM | 6*COM, expandable to 10 RS232, among which COM1/COM2 supports RS-232/RS422/RS485 mode selection |
| PS/2 | 1×PS/2 keyboard/mouse interface |
| GPIO | 1×8 digital I/O interface |
| LPT & Mini PCIe and SIM card slot | 1×LPT interface; Mini PCIe + Micro SIM card Slot |
| Ethernet | Provide 2×10/100/1000Mbps network interface |
| Audio | Adopt HDA standard, support rear panel Mic-in, Line-in, Line-out |
| Environment | |
| Operating Temp. | -10℃～60℃; 5%～95% (non-condensing state) |
| Storage Temp. | -20℃～80℃, 5%～95% (non-condensing state) |
| Mechanical | |

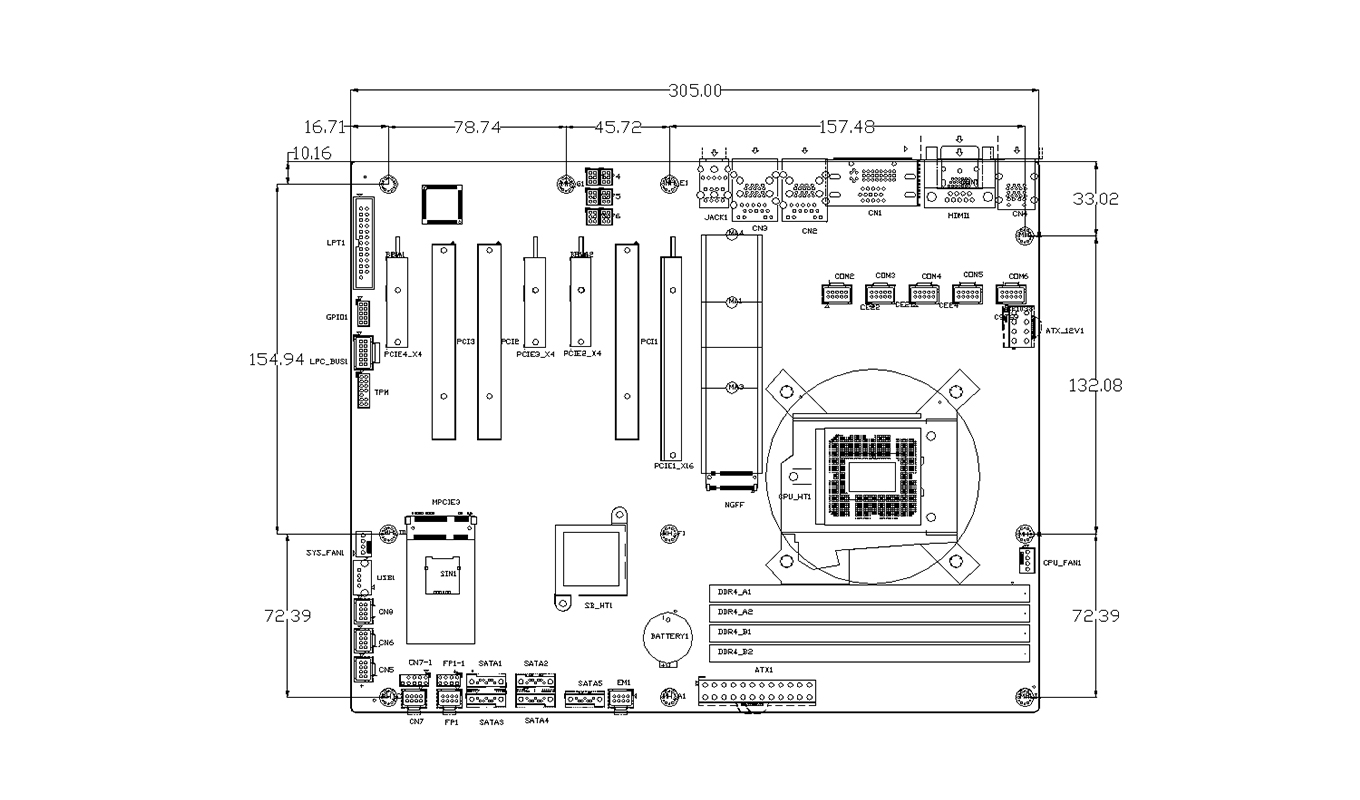

| Dimension (L x W) | 305mm*244mm |
| Ordering Information | |
| ATX-GSB365K | ATX structure single board/Intel® B365 chipset/support Gen6/7/8/9th i3/i5/i7 CPU, support Pentium® /Celeron® /4×DDR4 DIMM memory slot, total support 64GB memory/VGA/HD/DVI /5×SATA/1×M.2/2×Gigabit LAN/8×USB2.0,6×USB3.0/6×COM port/1×parallel port/2×PS/2/HD Audio/1×8 bit GPIO/3×standard PCI slots/3×PCIe x4/1×PCIe x16/standard ATX power supply |
