17 Industrial Monitor
Industrial PC Touch Screen Monitor
17 Industrial Monitor
Industrial PC Touch Screen Monitor

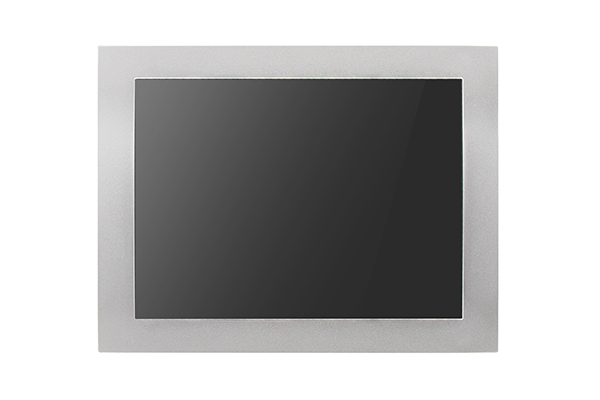

17 Inch Industrial Monitor

PDS-GS1701T

17" industrial-grade display, resistive touch screen;

High-strength aluminum alloy panel, sealed, fanless, and dust-proof design;

1*VGA, 1*HDMI, 1*DVI, 1*USB2.0;

Panel color: silver/black optional.

Get A Quote
Benefits
Specification
Dimension

Benefits of 17 Inch Industrial Monitor

  • 17" TFT LED

  • 1280*1024

  • 250 cd/m2

  • 1000:1

  • Resistive touch screen

  • 1*USB 2.0 Touch interface

  • 1*VGA, 1*HDMI,1*DVI

  • 100~240V AC/50~60Hz (with adapter)/12V DC power input

  • 8W (standby state)

Specification of 17 Inch Industrial Monitor

Display
LCD Type17" TFT LED
Max. Resolution1280*1024
Luminance250 cd/m2
Contrast Ratio1000:1
Touchscreen TypeResistive touch screen
USB1*USB 2.0 Touch interface
Video1*VGA, 1*HDMI, 1*DVI
Power Input100~240V AC/50~60Hz (with adapter)/12V DC power input
Power Consumption8W (standby state)
Environment
Operating Temp.-10℃~50℃ @ 5 ~ 85% RH. with airflow
Storage Temp.-20℃ ~60℃
Humidity95% @40℃, non-condensation
IP RatingFront panel IP65 (optional)
Shock Protectionacceleration 10G/11ms
ReliabilityMTBF≥50000h; MTTR≤0.5h
Vibration Protection5-19Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration
Mechanical
Dimension (W x H x D)400*320*41mm
Weight1.3 kg/2.5 kg
Colorsilver/black optional
MaterialAluminum alloy panel fanless design
Dimensions

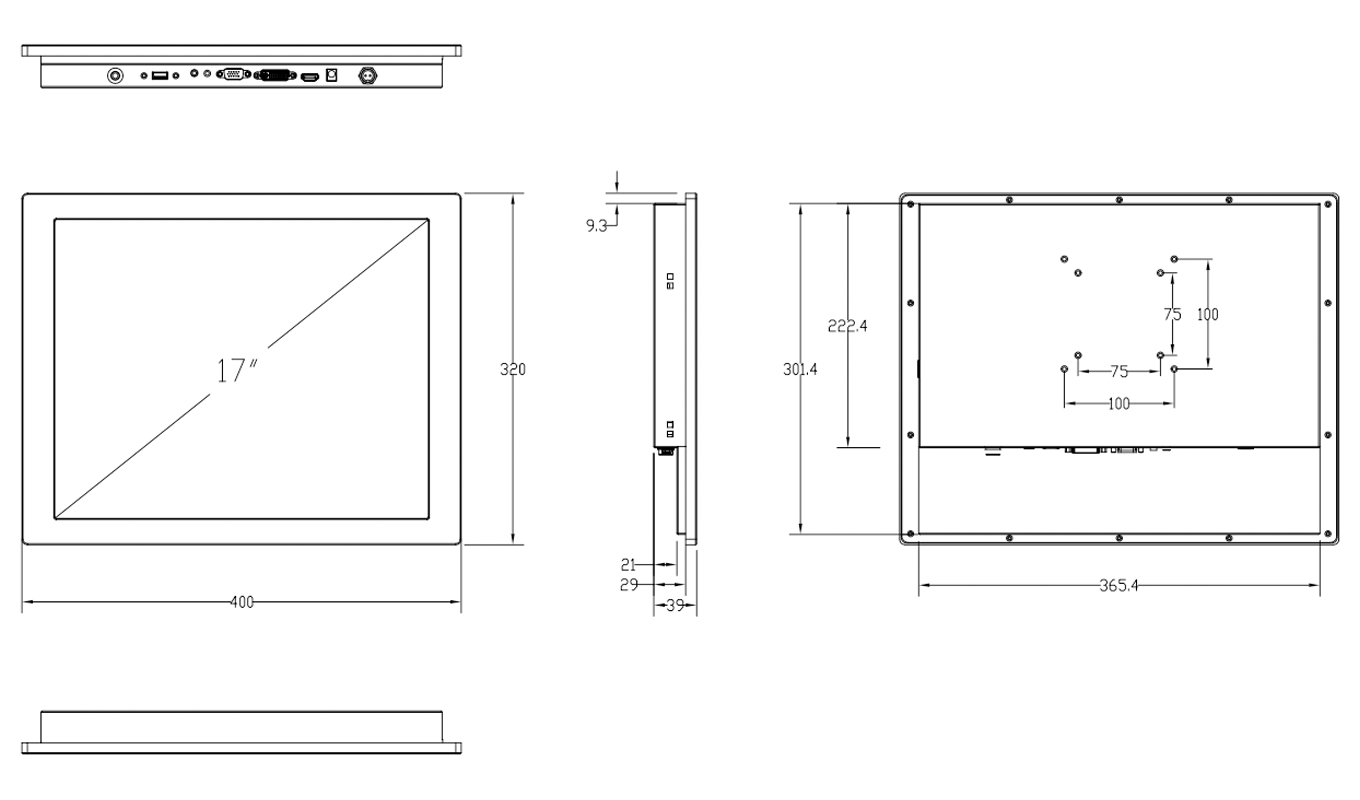

Dimension of 17 Inch Industrial Monitor

Deminsion of 17 Inch Industrial Monitor
