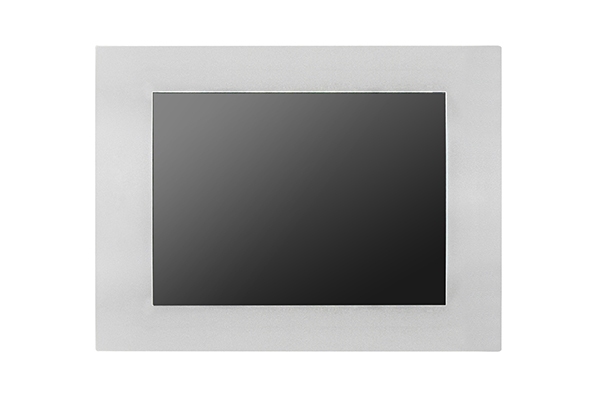

Industrial Panel Mount Monitor

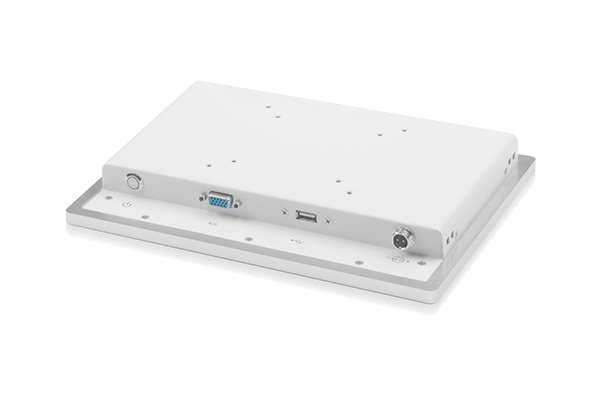

Industrial PC Monitor
Industrial Panel Mount Monitor
Industrial PC Monitor

13 Inch Industrial Monitor

PDS-GS1301T

13.3 inch, industrial monitor, Capacitive touch screen;

High-strength and elegant Al-alloy panel;

1*HDMI, 1*DC-IN, 1*USB2.0;

Color: Black.

Get A Quote
Benefits
Specification
Dimension

Benefits of 13 Inch Industrial Monitor

  • 13.3" TFT LED

  • 1920*1080

  • 300 cd/m2

  • 1000:1

  • Capacitive touch screen

  • 1*USB2.0

  • 1*HDMI

  • 12V DC

  • 8W(standby)

Specification of 13 Inch Industrial Monitor

Display
LCD Type13.3" TFT LED
Max. Resolution1920*1080
Luminance300 cd/m2
Contrast Ratio1000:1
Touchscreen TypeCapacitive touch screen
USB1*USB2.0
Video1*HDMI
Power Input12V DC
Power Consumption8W (standby)
Environment
Operating Temp.-10℃~60℃
Storage Temp.-20℃ ~70℃
Humidity95% @40℃, non-condensing
IP RatingFront panel IP65
Shock Protection10g acceleration, 11ms duration
ReliabilityMTBF≥50000h; MTTR≤0.5h
Vibration Protection5-19Hz/1.0mm amplitude; 19-200Hz/1.0g
Mechanical
Dimension (W x H x D)/
Weight/
ColorBlack
MaterialHigh-strength and elegant Al-alloy panel
Dimensions

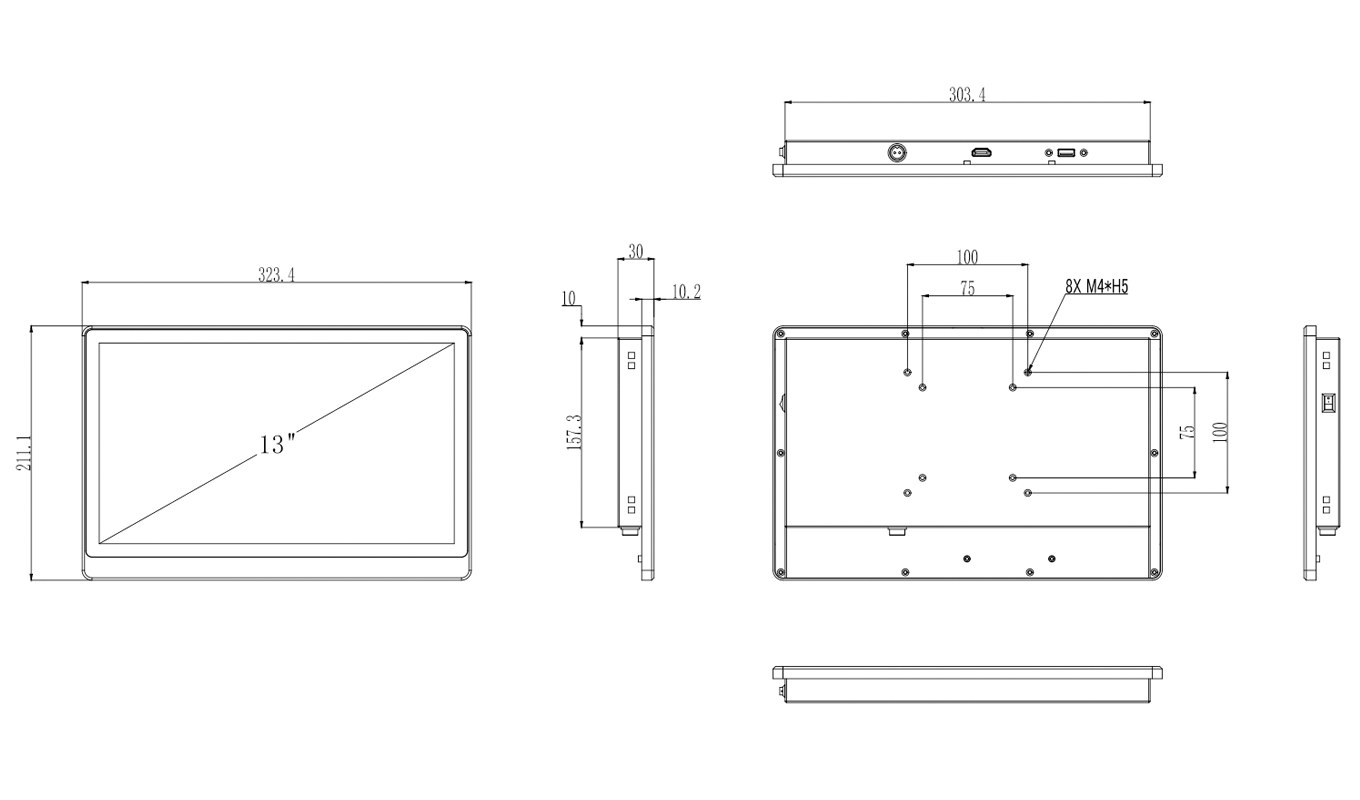

Dimension of 13 Inch Industrial Monitor

Deminsion of 13 Inch Industrial Monitor
