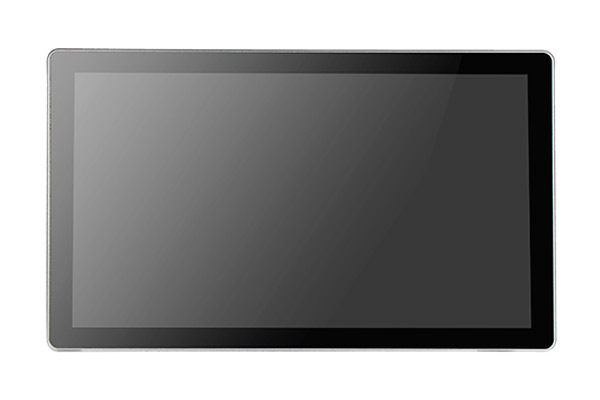

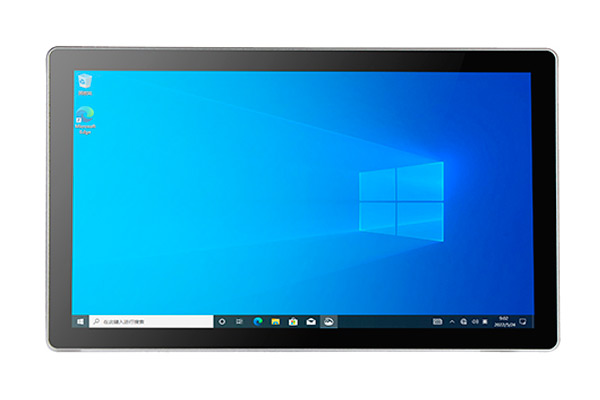

21.5" LED LCD screen.
Integrated capacitive touchscreen.
Rugged all-aluminum construction for a wide range of applications.
Long life and high reliability.
Fast response time, no smear, no jitter.
Ultra-wide viewing angle for clear picture quality at large angles.
Display | |
LCD Type | 21.5" TFT LED |
Resolution | 1920*1080 |
Luminance | 250 cd/m2 |
Contrast Ratio | 1000: 1 |
Touchscreen Type | capacitive touch screen |
Display Input | VGA HD DVI |
Power | |
Power Input | 100-240VAC/50-60HZ (with adapter)/12V DC input |
l/O Ports | |
USB | Touch screen interface |
Environment | |
Shock Protection | 5-19hz/1.0mm amplitude; 19-200hz/1.0g acceleration |
Vibration Protection | 10g acceleration, 11ms period |
Reliability | MTBF≥50000; H:MTTR≤0.5h |
Operating Temp. | -10℃ ~ 60℃ |
Storage Temp. | -20℃ ~ 70℃ |
Humidity | 95 % @40℃, no condensation |
IP Rating | Front panel IP65 (optional) |
Mechanical | |

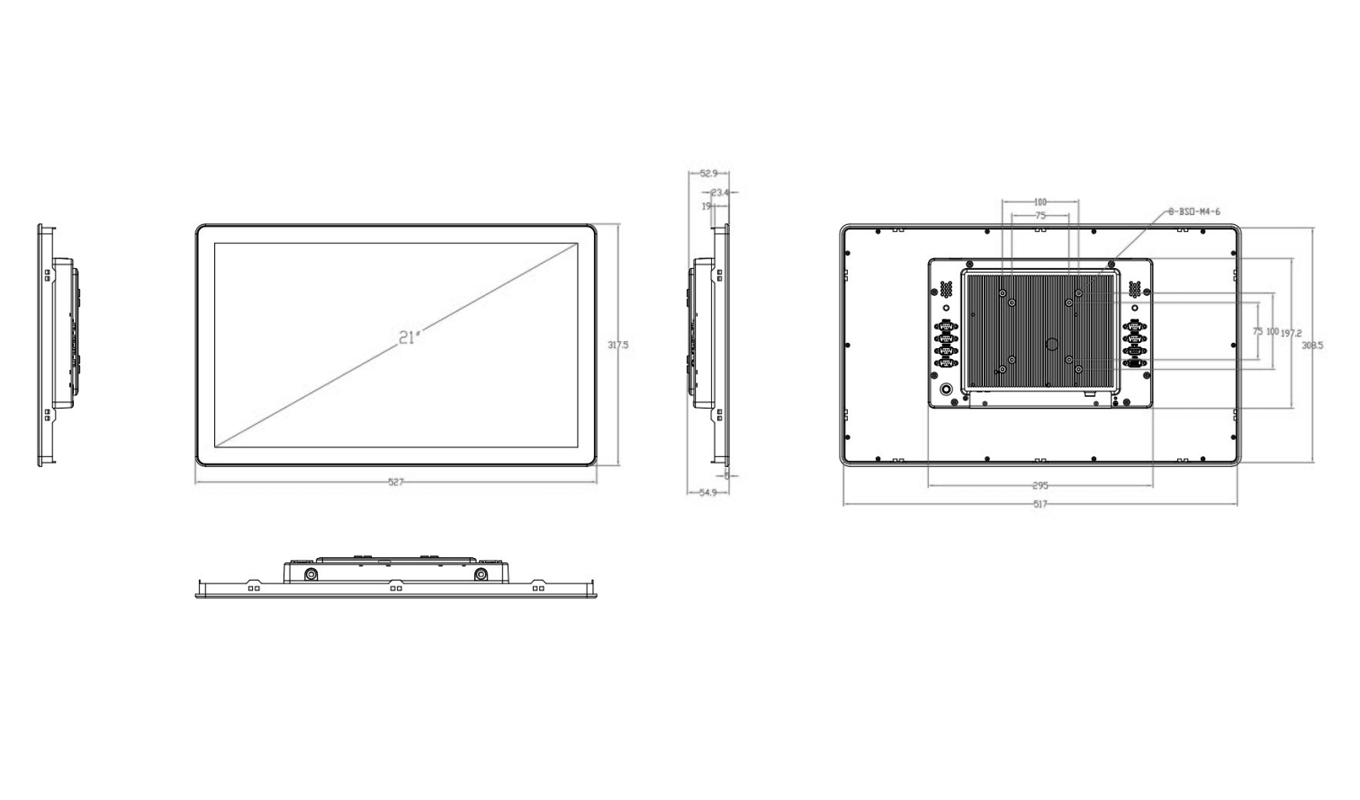

Dimension (WXHXD) | 527*317.5*54.9mm |
Weight | 2.1kg/2.9kg ( N.W./G.W.) |
Mounting | Aluminum alloy panel fanless design |
Color | black |
