8 Inch Industrial Monitor
Industrial Touch Display
8 Inch Industrial Monitor
Industrial Touch Display

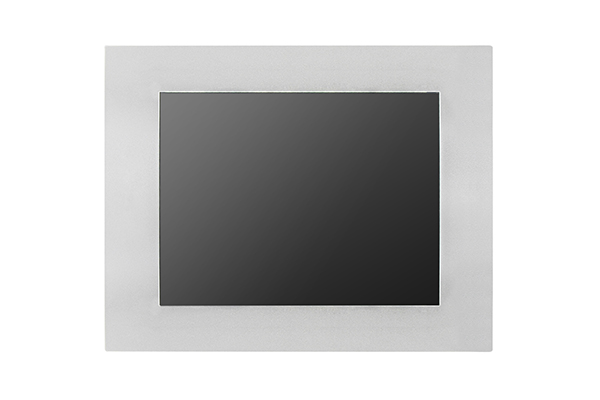

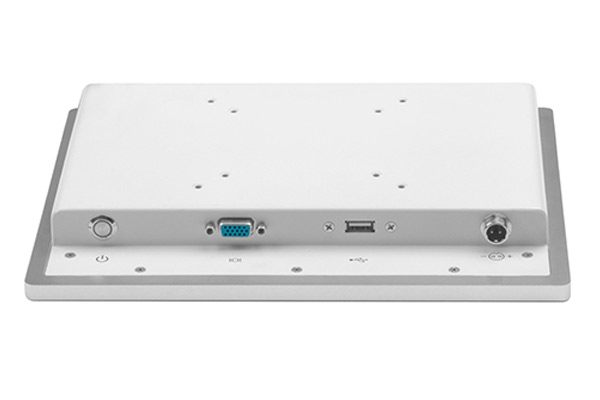

8 Inch Industrial Monitor

PDS-GS0801T

8" industrial-grade display, resistive touch screen;

High-strength aluminum alloy panel, sealed, fanless, and dust-proof design;

VGA display interface, 1*USB;

Panel color: silver/black optional.

Get A Quote
Benefits
Specification
Dimension

Benefits of 8 Inch Industrial Monitor

  • 10" TFT LED

  • 1024*768

  • 350 cd/m2

  • 400:1

  • Resistive touch screen

  • 1*USB 2.0 Touch interface

  • 1*VGA

  • 100~240V AC/50~60Hz (with adapter)/12V DC power input

  • 5W (standby state)


Specification of 8 Inch Industrial Monitor

Display
LCD Type8" TFT LED
Max. Resolution800*600
Luminance300 cd/m2
Contrast Ratio400:1
Touchscreen TypeResistive touch screen
USB1*USB 2.0 Touch interface
Video1*VGA
Power Input100~240V AC/50~60Hz (with adapter)/12V DC power input
Power Consumption5W (standby state)
Environment
Operating Temp.-10℃~50℃ @ 5 ~ 85% RH. with airflow
Storage Temp.-20℃ ~60℃
Humidity95% @40℃, non-condensation
IP RatingFront panel IP65(optional)
Shock Protectionacceleration 10G/11ms
ReliabilityMTBF≥50000h; MTTR≤0.5h
Vibration Protection5-19Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration
Mechanical
Dimension (W x H x D)228*178*30 mm
Weight0.8 kg/1.6 kg
Colorsilver/black optional
MaterialAluminum alloy panel fanless design
Dimensions

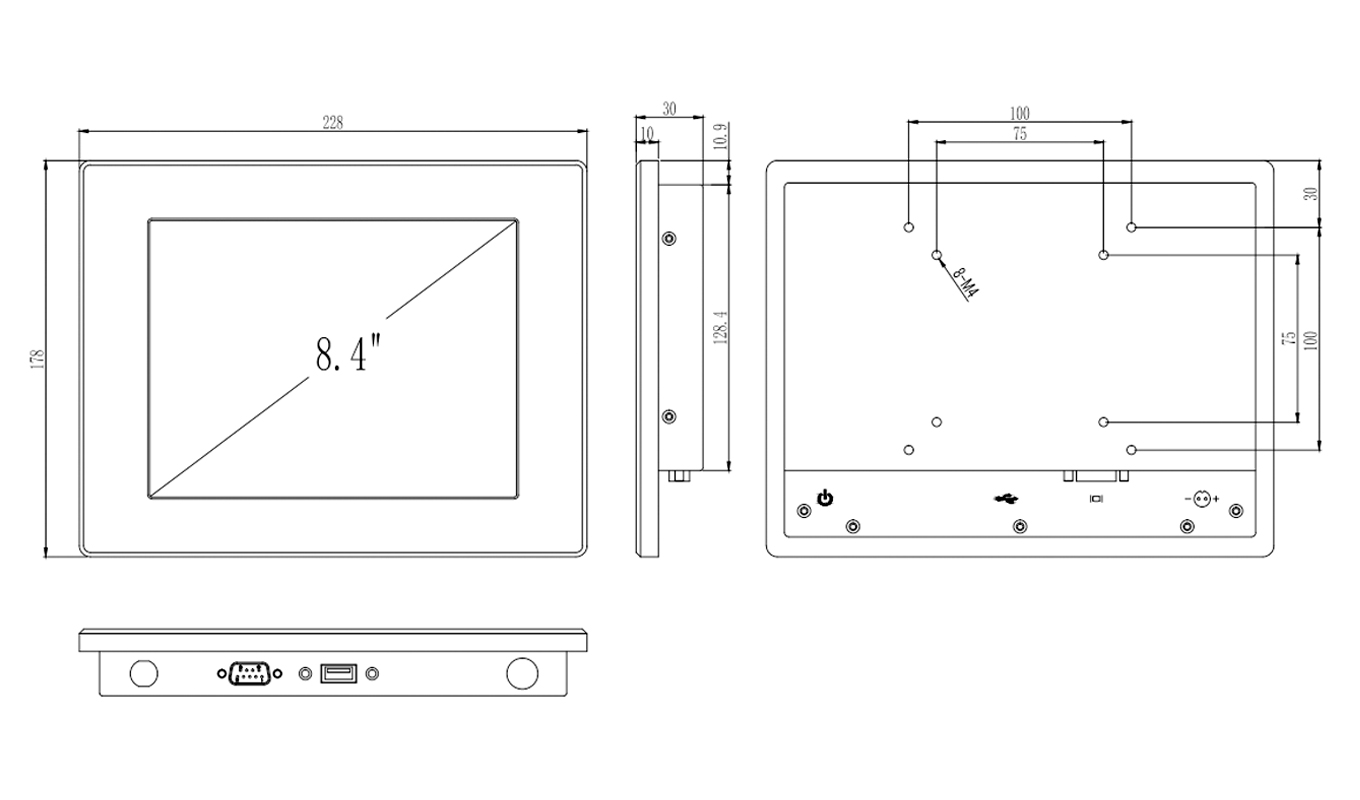

Dimension of 8 Inch Industrial Monitor

Deminsion of 8 Inch Industrial Monitor
