Industrial display screen, five wire resistive touch screen
DDR4 16GB

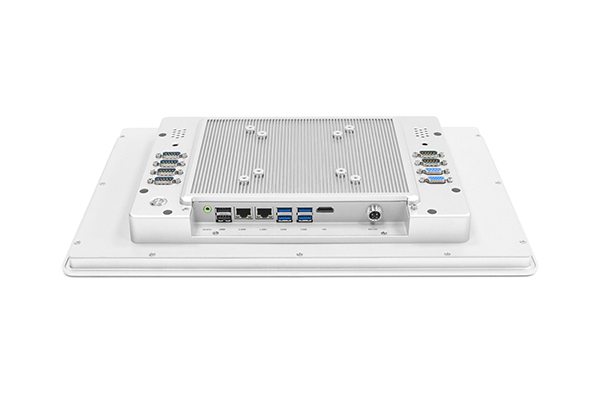

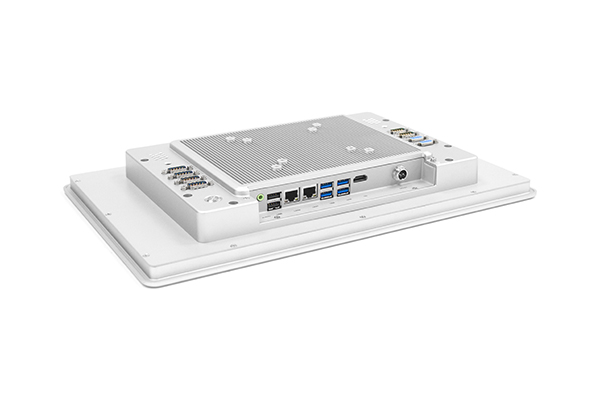

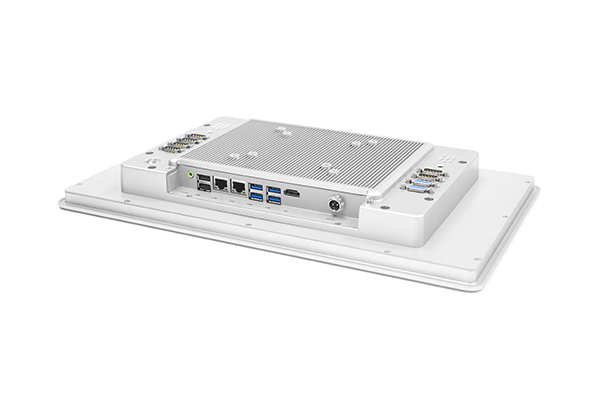

USB2.0*2/USB3.0*4/RS232*6/GPIO*4
HD*1/VGA*1/Gigabit LAN*2/Audio*1
One of the resistive pc solution with fanless design

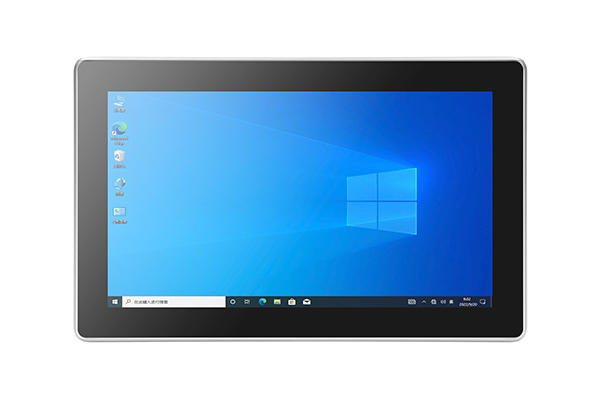

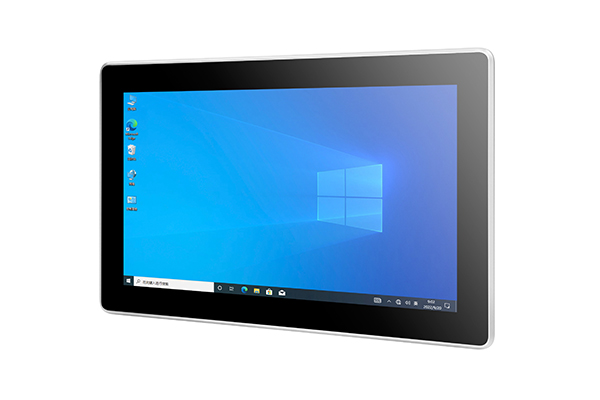

15 inch LCD screen with LED backlight, customized size is available.
IP65 waterproof and dustproof front panel.
Fanless design with low power consumption.
VESA installation: 100*100mm/75*75mm; Embedded installation: 393.93mm*243.23mm.
Support 9V- 36V wide voltage.
| System Hardware | |||
| CPU | Intel® Skylake Core ™ i5 6200U processor (optional i3/i7) | Memory | 16GB (optional 4GB/8GB) |
| Watchdog | 0-255 seconds/classification is realized by system software | Storage | 128GB EMMC (optional 256GB/512GB) |
| Display | |||
| LCD Type | 15.6″ LCD | Luminance | 450 cd/m2 |
| Touchscreen Type | 15.6" five-wire resistive touch screen | Contrast Ratio | 800:1 |
| Max. Resolution | 1920*1080 | Backlight Life-Time | 50000 |
| OS | |||
| OS | Win 10, Linux | ||
| I/O Ports | |||
| USB | 2*USB2.0, 4*usb3.0 | Expand | Optional dual band WIFI+BT |
| Serial port | 6*RS232 | Video | 1*HD, 1*VGA |
| LAN | 2*1000M network interface | SIM Card | N/a |
| Audio | 1*Audio | GPIO | 4*in/out |
| Power | |||
| Power Supply | Optional 9~36V wide voltage input, standard 12V/5A power adapter | ||
| Environment | |||
| Vibration Protection | 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration | Operating Temp. | -10 ℃ ～ 60 ℃ Surface air flow |
| Reliability | MTBF ≥ 30000h; MTTR ≤ 0.5h | IP Rating | Front panel IP65 |
| Shock Protection | 10g acceleration, 11ms cycle | Storage Temp. | -20 ℃ ～ 70 ℃ |
| Humidity | 95% @40 ℃, no condensation | ||
| Mechanical | |||

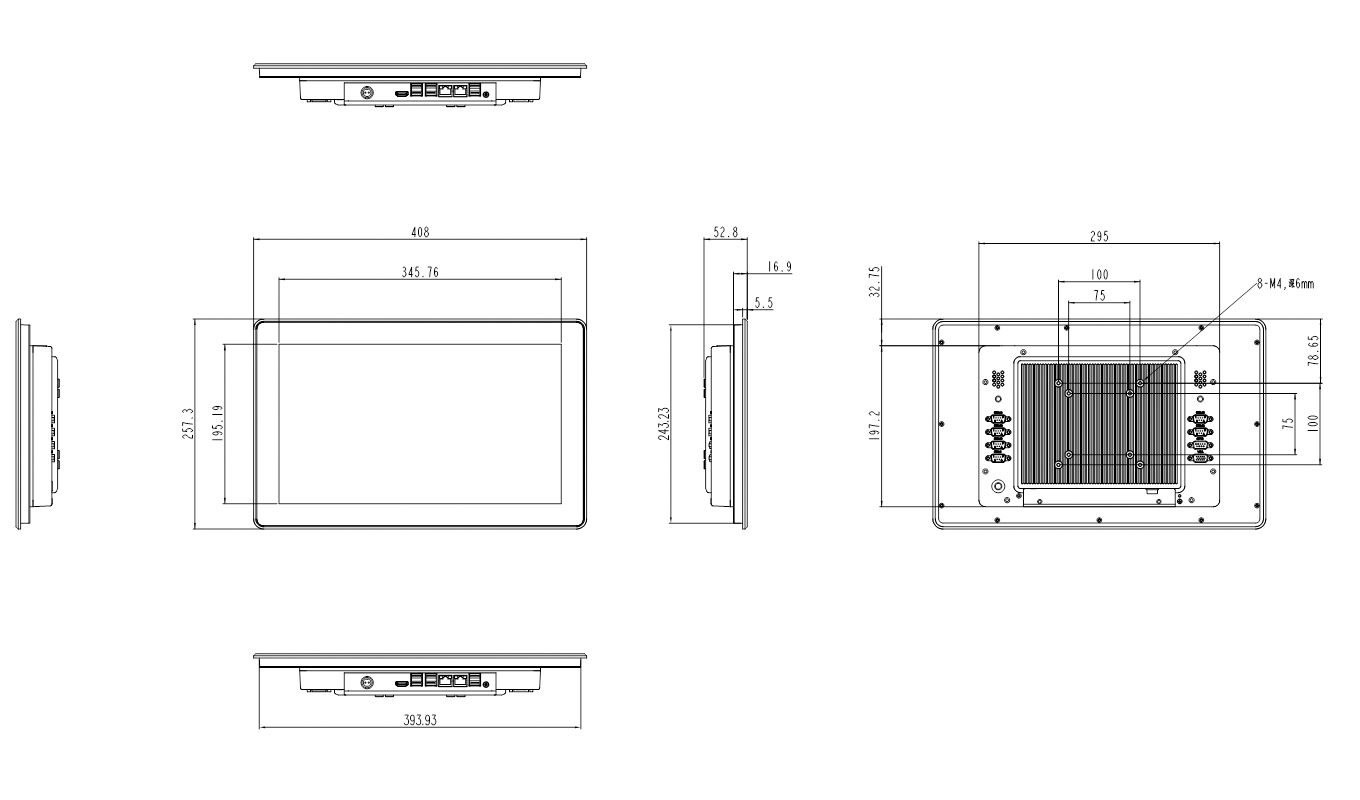

| Dimension (WxHxD) | 408mm*257.3mm*52.8mm | Material | All metal fanless design |
| Weight | 3.5kg/4.1kg(N.W./G.W.) | Mounting | VESA installation: 100*100mm/75*75mm/ Embedded installation: 393.93mm*243.23mm |
| Color | black/ silver | ||
