Support 1*1000M LAN port;

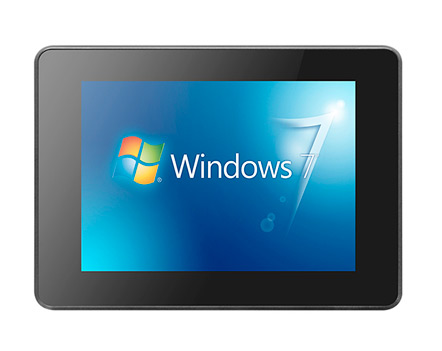

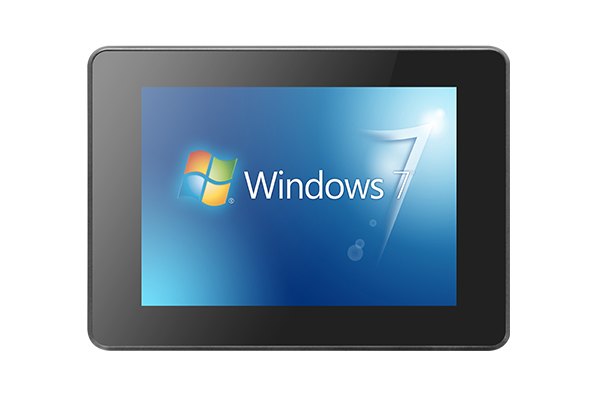

8 inch color TFT screen;

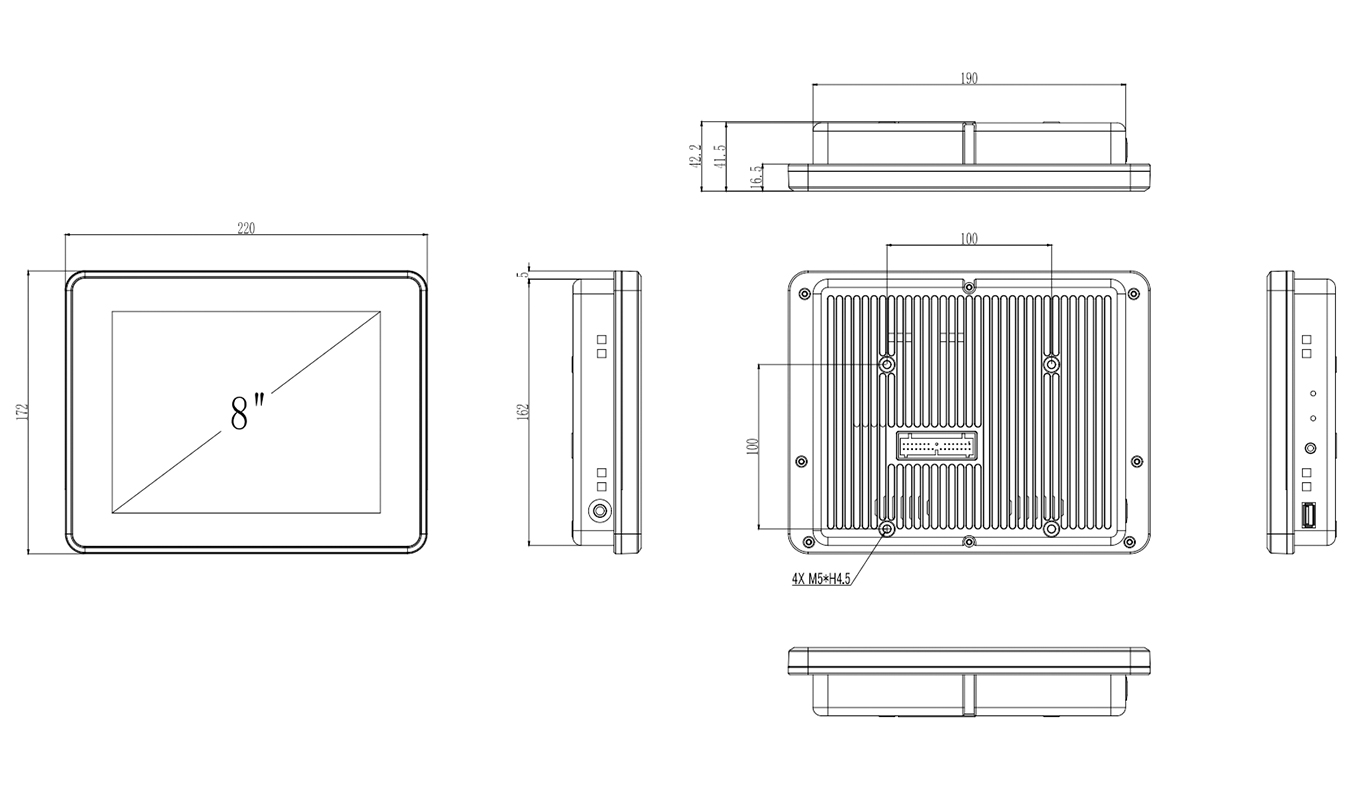

Mounting size: VESA mounting: 75*75mm;
O/S: Android 5.1.1 / Android 7.0.
Intel® Atom® Processor E3845
3*USB2.0/3*RS232/1*1000M LAN
1*LINE-OUT/1*RESET/1*RESTORE
| Model | PPC-GS085X-JK4 | |
| Features | Industrial grade 8" LED 5-wire resistive touch screen; capacitive touch screen optional Intel® Atom® Processor E3845 Onboard 2GB DDR3L 3*USB2.0/3*RS232/1*1000M LAN 1*LINE-OUT/1*RESET/1*RESTORE Fanless design and Al-alloyed backplate for heat radiation | |
| Specifications | ||
| Display features | LCD | 8" TFT LED |
| Resolution | 800*600, 1024*768 optional | |
| Brightness | 300 cd/㎡ | |
| Contrast | 500:01:00 | |
| Touch screen | 5-wire resistive touch screen | |
| Performance | Chipset | Intel® ATOM E3845 |
| Memory | Onboard 2GB DDR III RAM | |
| Watchdog timer | 0 to 256 sec by software | |
| Storage | 1*MSATA 32G SSD | |

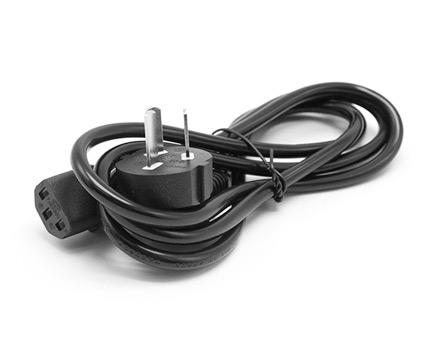

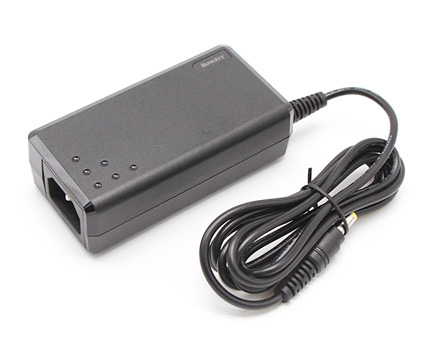

| Power supply | Input voltage/rate: 100~240VAC/50~60Hz (with power adaptor) | |
| Input voltage/current: 9-36VDC/5A (no power adaptor) | ||
| Operating System | OS | Windows 7/Windows 8/ Windows 10/Linux |

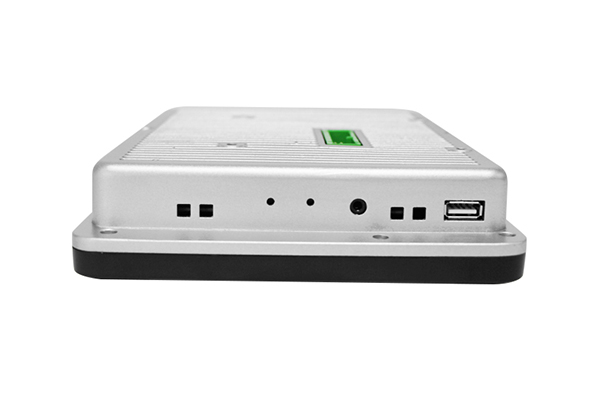

| I/O | USB | 3*USB2.0 (1*TypeA on the right+2*USB2.0 from the Pin of backside) |
| COM | 3*RS232 (from the Pin of backside) | |
| Ethernet | 1*1000M LAN (from the Pin of backside) | |
| Audio | 1*Line-out(from the Pin of backside) | |
| Environmental | Anti-vibration | 10 Hz ≤ f < 58 Hz, Uniform amplitude 0.075mm |
| 58 Hz ≤ f < 500 Hz, Uniform acceleration 1g | ||
| Anti-shock | 10g acceleration, 11ms duration | |
| Reliability | MTBF≥50000h; MTTR≤0.5h | |
| Operating Temperature | -10℃～60℃ with airflow | |
| Storage Temperature | -40℃ ～80℃ | |
| Operating Humidity | 93% @40℃,non-condensing | |
| Mechanical | Material | Fanless design with Al-alloyed casing |
| Color | Black | |
