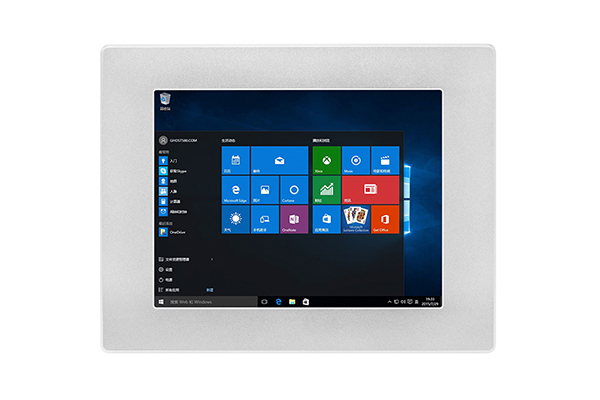

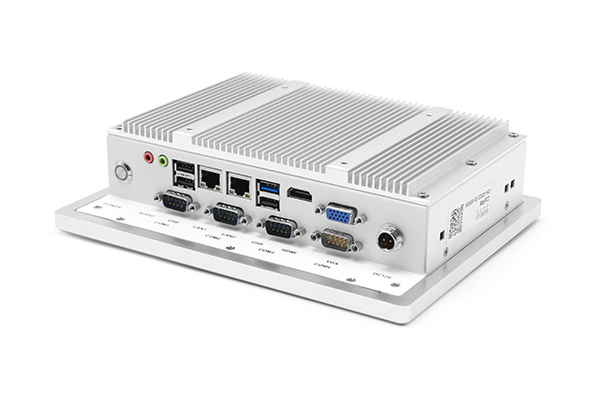

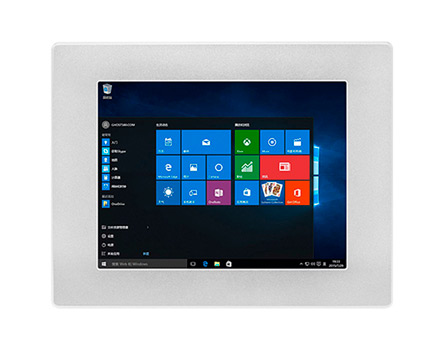

8 inch 800*600 resolusion industrial resistive touch screen panel PC;
Support Intel Celeron/Core I (6/7th Gen) series processor;
Support 4*USB+6*COM and industrial panel PC ODM.
| System Hardware | |
| CPU | Support intel J1900/J3855/3865/Core I (6/7 th Gen.) series processor |
| Chipset | / |
| Memory | Up to 8GB |
| Storage | Up to 512GB |
| Watchdog | 255 timer levels, setup by software |
| Display | |
| LCD Type | 8" TFT-LCD |
| Max. Resolution | 800*600 |
| Luminance | 300 cd/m2 |
| Viewing Angle | 170°(H)*170°(V) |
| Contrast Ratio | 400:1 |
| Backlight Life-Time | 30000 hr（min.） |
| Touchscreen | |
| Touchscreen Type | 5-wire resistive |
| Light Transmission | >78% |
| Hardness | 3H |
| OS | |
| OS | Windows 7, Windows 10, Linux |

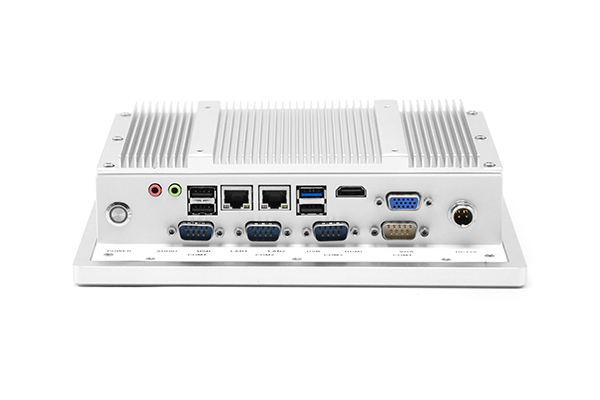

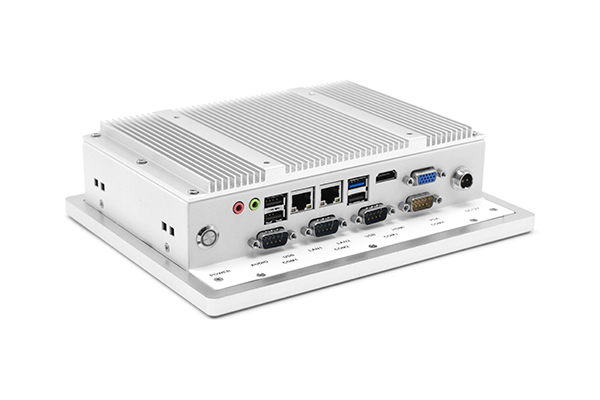

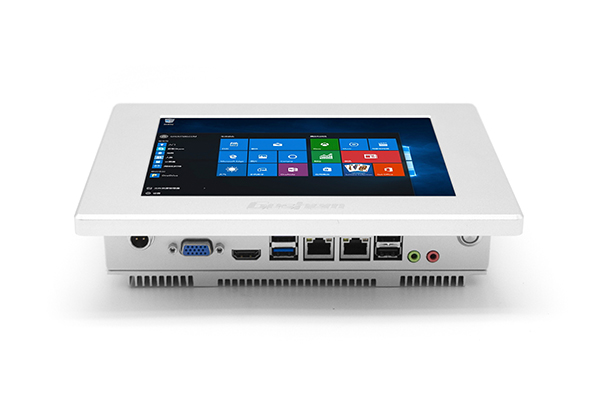

| I/O Ports | |
| USB | 3*USB 2.0 + 1*USB3.0 (Celeron J1900) 4*USB 3.0 (J3855U/3865U/Core i(6/7th Gen)) |
| Serial port | 4*RS232(1*RS422/RS485 optional ) |
| LAN | 2* RJ45 Gigabit Ethernet (Intel I211-AT) |
| Audio | 1*Line-out, 1*Mic-in |
| Video | 1*HDMI, 1*VGA |
| GPIO | 4In/4Out (Occupy 1*COM, optional) |
| Expansion Slot | 1*Mini PCIe (Wifi/BT/3G/4G optional) |
| Power | |

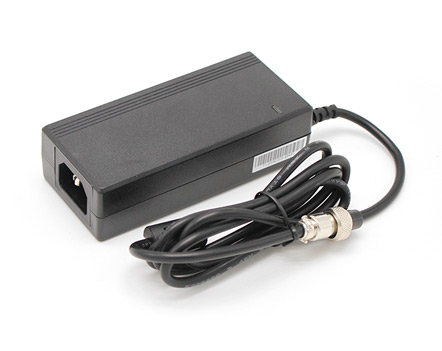

| Power Input | 9～24V DC Input (9～36V DC optional) 12V/5A power adapter |
| Power Consumption | / |
| Environment | |
| Operating Temp. | -10℃～50℃, with airflow |
| Storage Temp. | -20℃～60℃ |
| Humidity | 95% @40℃, non-condensing |
| IP Rating | Front panel IP65 (optional) |
| Shock Protection | acceleration 10G/11ms |
| Vibration Protection | 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration |
| Certificate | |
| Certificate | / |
| Mechanical | |
| Dimension (W x H x D) | 228*178*60.8mm |
| Weight | 2.0kg |
| Color | Silver |
| Mounting | VESA mounting: 100*100mm Panel mounting: 213*132mm |

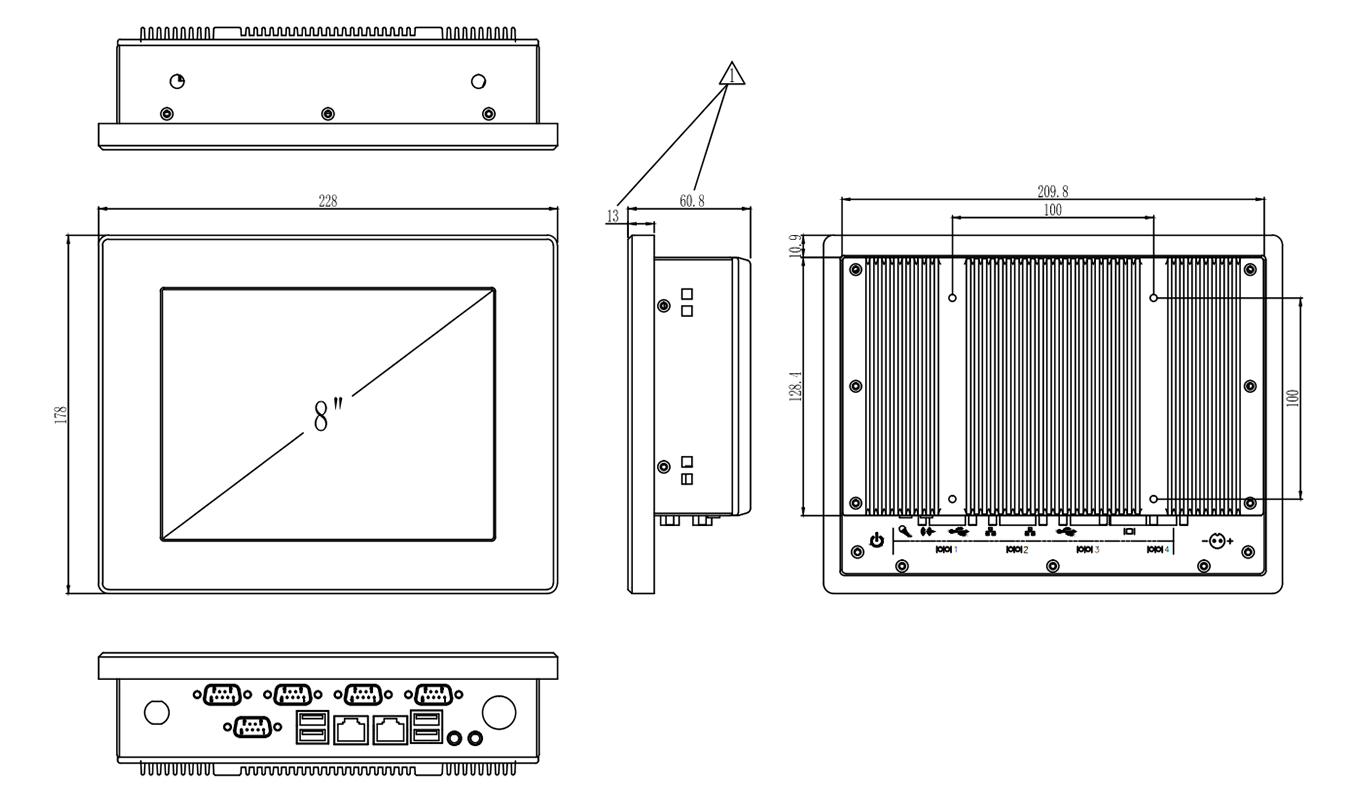

| Dimensions | |
