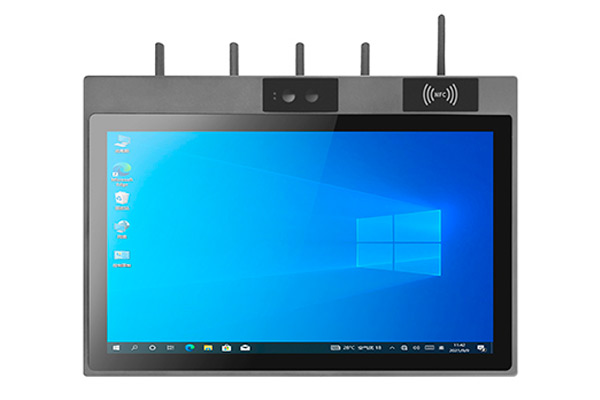

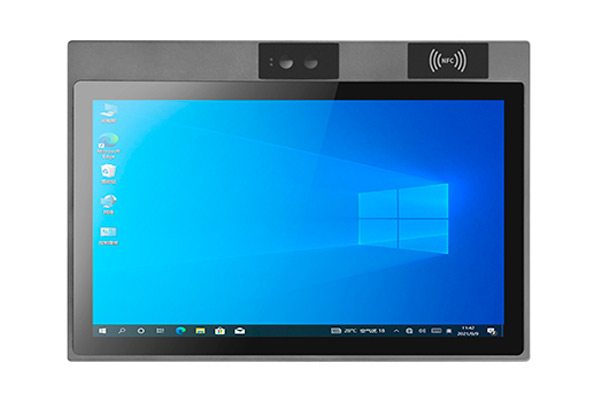

Geshem 18.5 Inch 5G All In One Economy Touch Panel PC

TY185-GS51C-5G

Intel® Bay Trail J1900 2.0GHz low power processor (optional Core™ i3/i5/i7).

Industrial display, capacitive touch screen.

4G DDR3L RAM, Up to 8GB/16GB.

6*USB, 2*RS232, optional 6 serial ports.

1*HD, 1*VGA.

Get A Quote
Spec Download
Benefits
Specification
Dimension

Benefits of 18.5 Inch 5G All In One Economy Touch Panel PC

  • Support 5G communication.

  • 1*Gigabit LAN, support Wake-on-LAN/PXE.

  • Fanless ultra-slim design, IP65-rated front panel.

Specification of 18.5 Inch 5G All In One Economy Touch Panel PC

System Hardware
CPUIntel® Bay Trail J1900 Quad-Core-Quad-Thread-Processor ( optional Core™ I3/I5/I7)
Memory4G DDR3L, Up to 8GB/16GB
Storage4GB/8GB, Core™ supports up to 16GB
Watchdog64GB SSD (optional 128GB~512GB)
Display
LCD Type18.5″ TFT-LCD
Touchscreen TypeMulti-touch capacitive touch screen
Max. Resolution1366*768
Luminance250 cd/m2
Contrast Ratio1000: 1
OS
OSWindows 7/10, Linux

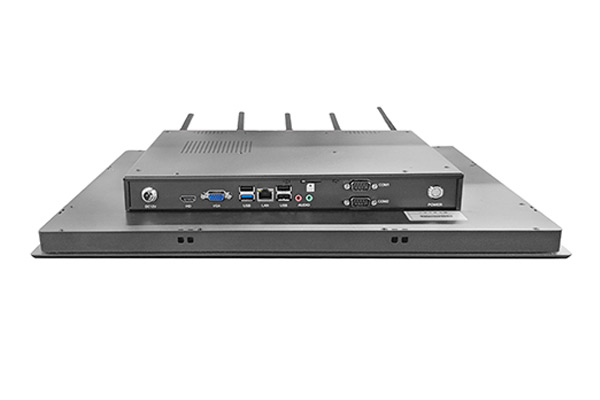

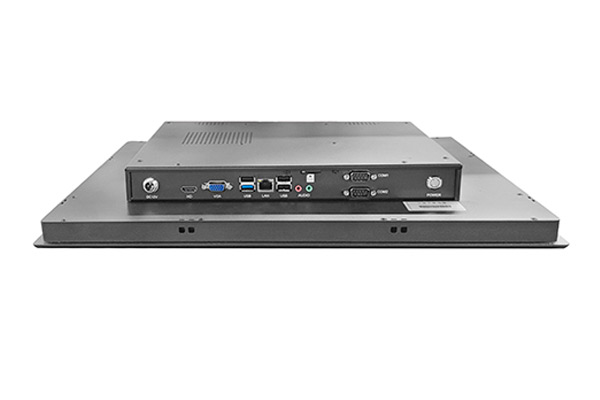

I/O Ports
USB5*USB2.0 +1*USB3.0
Serial port2*RS232(1~2*RS485 optional)
LAN1* GbE Lan
Audio1*Line-out, 1*Mic-in
Video1*HD, 1*VGA
GPIO1*GPIO (2in/2out) (occupies a DB9)
Expansion Slot1*Mini PCIe(WiFi/BT/3G/4G/5G Optional)
SIM Card1*SIM card holder
Extended Functions
NFCSupport
Facial RecognitionOptional binocular facial recognition function
Power
Power Supply12V DC input (12/5A power adapter; 9-36V DC IN optional)

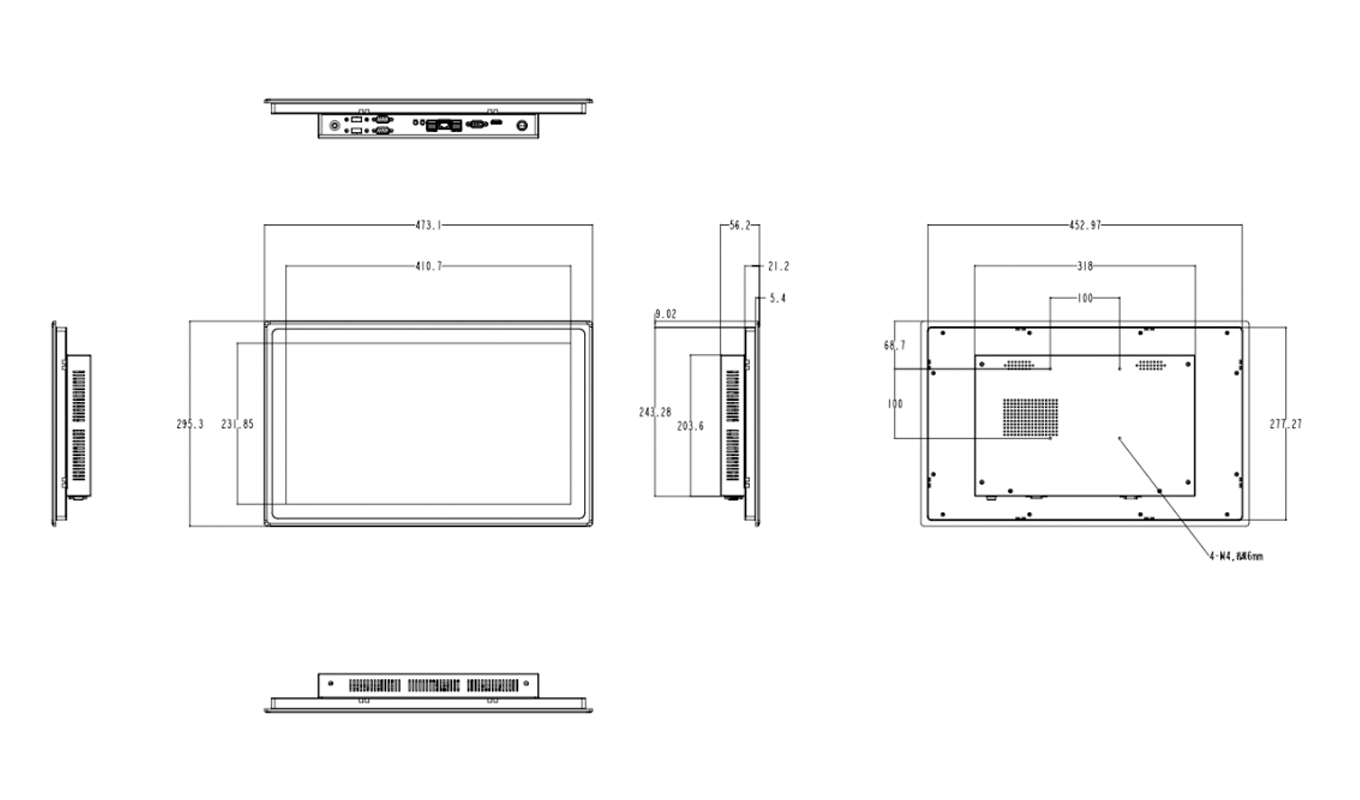

Dimension of 18.5 Inch 5G All In One Economy Touch Panel PC

Dimension of 18.5 Inch 5G All In One Economy Touch Panel PC
