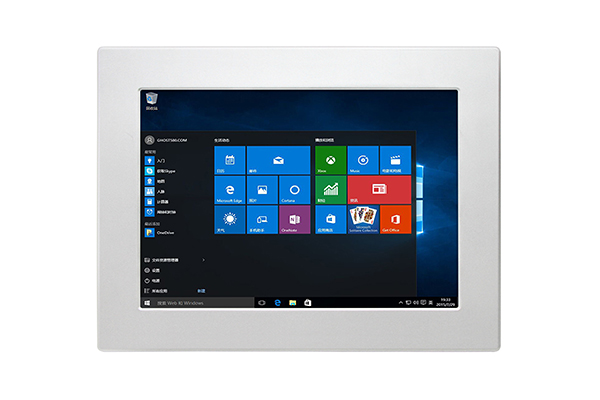

Panel PC Resistive Touchscreen
Resistive Touchscreen PC
Panel PC Resistive Touchscreen
Resistive Touchscreen PC

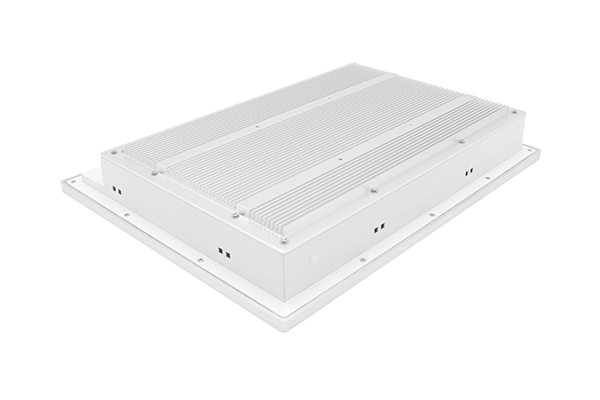

15 Inch J1900 Core I3/I5/I7 Resistive Panel PC

PPC-GS15XXT

15 inch 1024*768 resolusion resistive panel PC with IP65 front panel optional;

RAM can Up to 16GB; ROM can up to 1TB;

1*Mini PCIe(Wifi/BT/3G/4G optional).


Get A Quote
Video Spec Download
Specification
Dimension
Accessories

Specification of 15 inch J1900 Core I3/I5/I7 Resistive Touch Panel PC

System Hardware
CPUSupport intel J1900/J3855/3865/Core I (6/7 th Gen.) series processor
Chipset/
MemoryUp to 8GB
StorageUp to 512GB
Watchdog255 timer levels, setup by software
Display
LCD Type15″ TFT-LCD
Max. Resolution1024*768
Luminance300 cd/m2
Viewing Angle160°(H)*145°(V)
Contrast Ratio1500:1
Backlight Life-Time30000 hr (min.)
Touchscreen
Touchscreen Type5-wire resistive
Light Transmission>78%
Hardness3H
OS
OSWindows 7, Windows 10, Linux

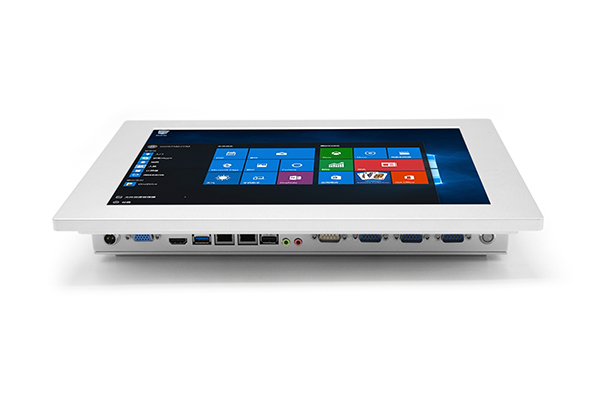

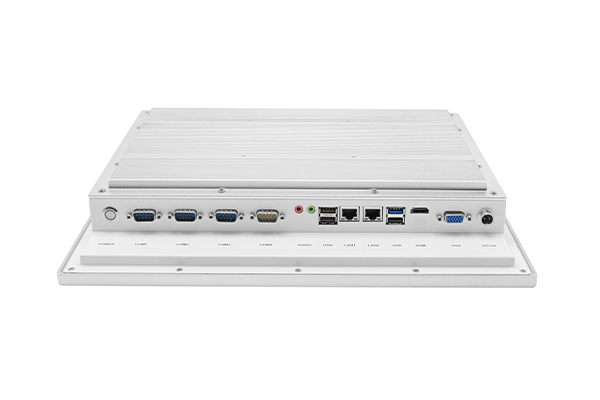

I/O Ports
USB3*USB 2.0 + 1*USB3.0 (Celeron J1900)
4*USB 3.0 (J3855U/3865U/Core i(6/7th Gen))
Serial port4*RS232 (1*RS422/RS485 optional )
LAN2* RJ45 Gigabit Ethernet (Intel I211-AT)
Audio1*Line-out, 1*Mic-in
Video1*HDMI, 1*VGA
GPIO4In/4Out (Occupy 1*COM, optional)
Expansion Slot1*Mini PCIe (Wifi/BT/3G/4G optional)
Power
Power Input9~24V DC Input (9~36V DC optional), 12V/5A power adapter
Power Consumption/
Environment
Operating Temp.-10℃~50℃, with airflow
Storage Temp.-20℃~60℃
Humidity95% @40℃, non-condensing
IP RatingFront panel IP65 (optional)
Shock Protectionacceleration 10G/11ms
Vibration Protection5-19Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration
Certificate
Certificate/
Mechanical
Dimension (W x H x D)380*300*59mm
Weight5.2kg
ColorSilver
MountingVESA mounting: 100*100mm
Panel mounting: 352*232mm
Dimensions

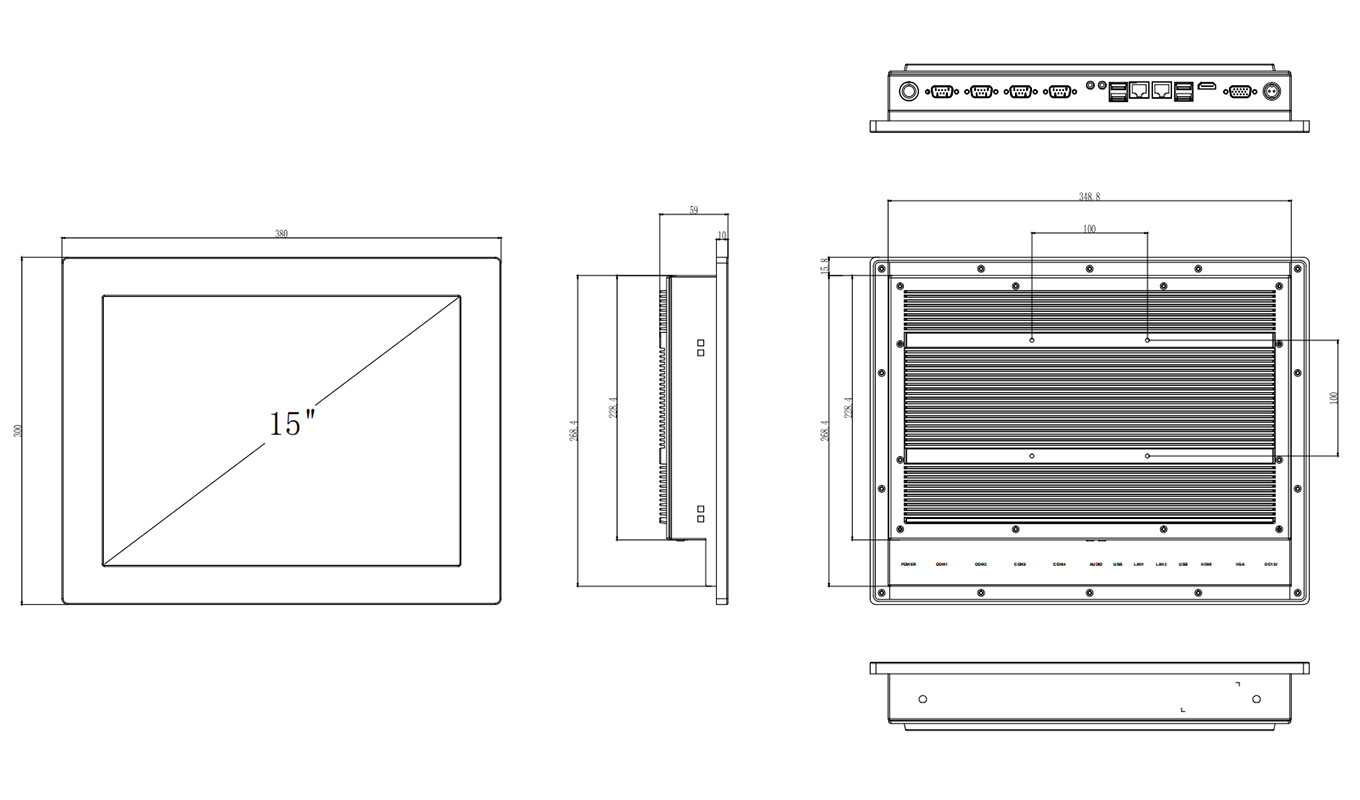

Dimension of 15 inch J1900 Core I3/I5/I7 Resistive Touch Panel PC

Deminsion of 15 inch J1900 Core I3/I5/I7 Resistive Touch Panel PC

Accessories of 15 inch J1900 Core I3/I5/I7 Resistive Touch Panel PC

Packing List

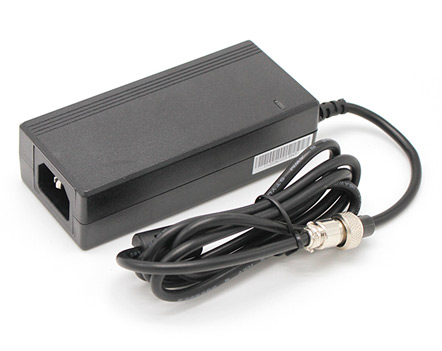

Power Adapter of Resistive Touchscreen PC
Power Adapter of Resistive Touchscreen PC

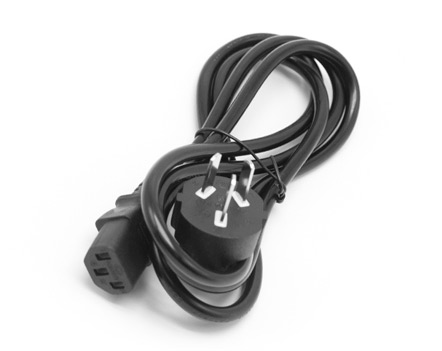

Power Supply of lndustrial Resistive Touch Screen PC
Power Supply of lndustrial Resistive Touch Screen PC

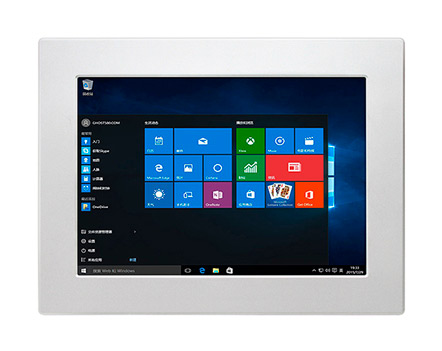

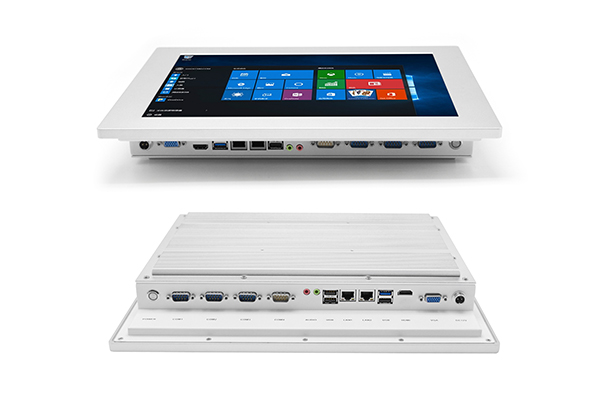

Device of Panel PC Resistive Touchscreen
Device of Panel PC Resistive Touchscreen
