Intel® Bay Trail J1900 2.0GHz Processor.
Industrial display, capacitive touch screen from panel pc manufacturer.
4GB DDR3L memory, up to 8GB.
4*USB, 2*RS232, 2*RS485, 1*CAN.
1*HD, 1*VGA.
Support binocular face recognition camera, fingerprint module.
1* Realtek RTL8111H Gigabit LAN, support Wake-on-LAN/PXE.
Fanless ultra-thin design.
The protection level of the whole panel can reach IP65.
For more industrial computer products, inquiry now
| System Hardware | |
| CPU | Intel® Bay Trail J1900 Quad-core, Quad-thread Processor |
| Memory | 4GB DDR3L memory, up to 8GB |
| Storage | MSATA: 64GB, up to 512GB |
| Watchdog | Support hardware reset function (256 levels, 0~255 seconds) |
| Display | |
| LCD Type | 15" TFT-LCD |
| Touchscreen | 15" capacitive touch screen |
| Contrast Ratio | 1000: 1 |
| Luminance | 350 cd/m2 |
| Max. Resoltuion | 1024*768 |
| OS | |
| OS | Windows 7/10, Linux, Ubuntu |

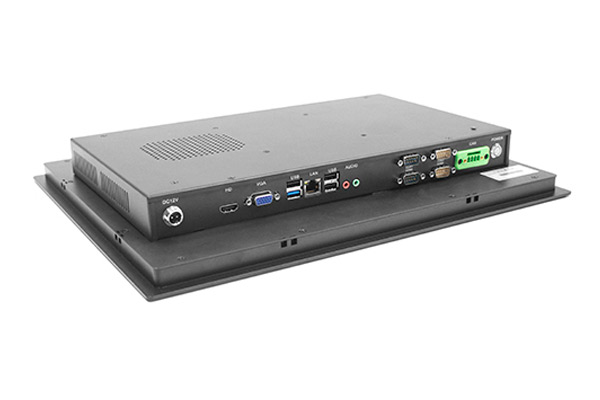

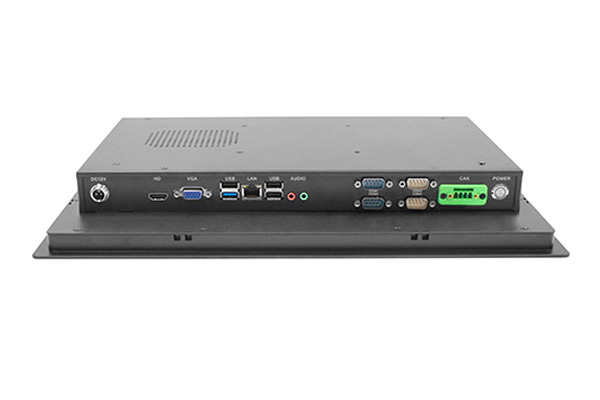

| I/O Interface | |
| USB | 3*USB2.0 +1*USB3.0 |
| Serial port | 2*RS232, 2*RS485, 1*CAN |
| LAN | 1* Realtek RTL8111H RJ45 Gigabit network interface |
| Aviation Plug | Expansion 1*CAN |
| Video | 1*HD+1*VGA |
| GPIO | 1*GPIO (2in/2out optional) |
| Expansion Slot | 1*Mini PCIe (Wifi/BT/3G/4G optional) |
| SIM Card | 1* Built-in SIM card holder |
| GNSS | U-blox GPS+GLonass |
| Extended Functions | |
| Camera | 2MP binocular face recognition camera |
| Fingerprint Recognition | support |
| Power | |
| Power Input | 12V DC input (9~36V wide voltage module optional, standard 12/5A power adapter) |
| Environment | |
| Operating Temp. | -10℃～50℃ |
| Storage Temp. | -30℃～70℃ |
| Humidity | 95% @40℃, non-condensing |
| IP Rating | Front panel IP65 |
| Vibration Protection | 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration |
| Shock Protection | 10g acceleration, 11ms period |
| Reliability | MTBF≥30000h; MTTR≤0.5h |
| Mechanical | |

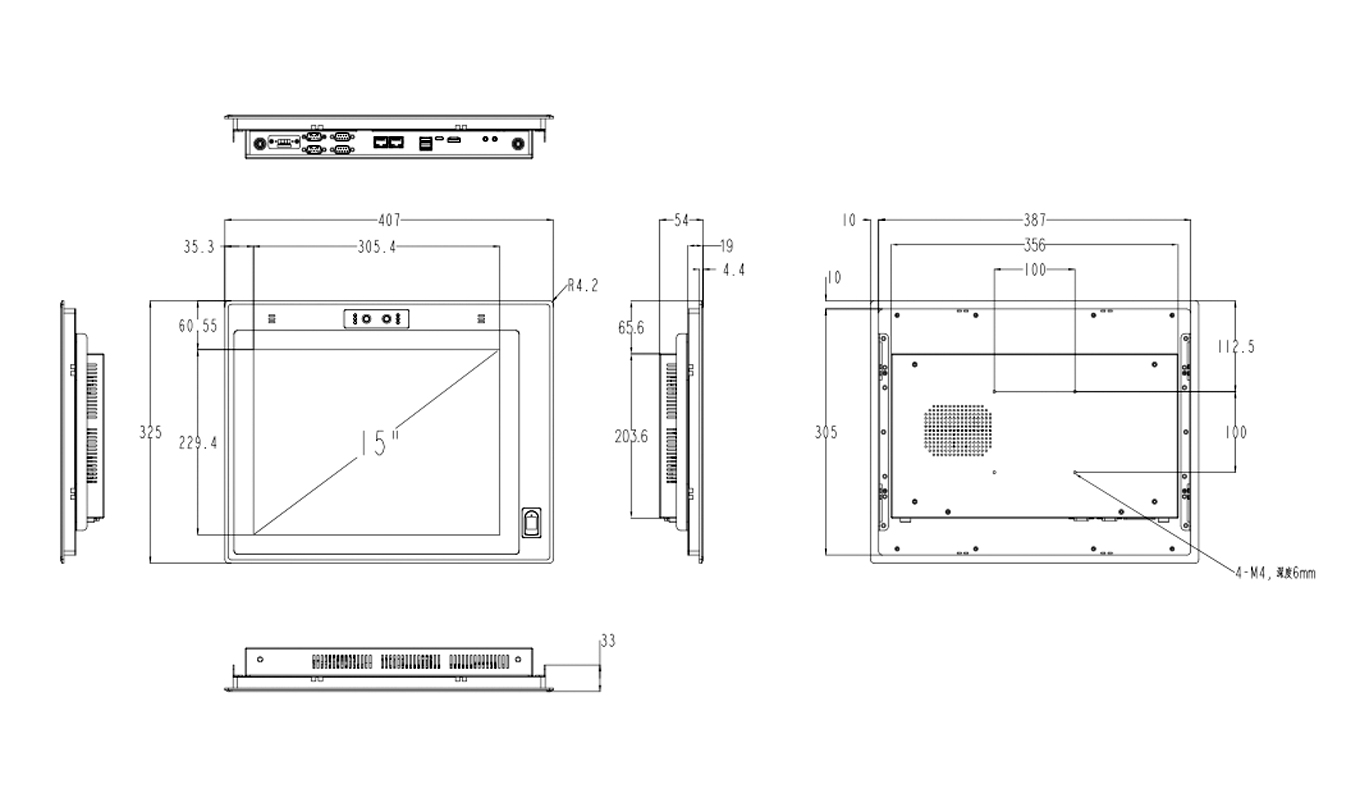

| Dimension (W x H x D) | 407*325*54mm |
| Weight | 4.1kg/6.9kg(N.W./G.W.) |
| Color | Black |
| Material | Aluminum alloy panel all metal fanless design |
| Mounting | VESA mounting: 100*100m Embedded installation: 387*305mm |
