15" TFT LED LCD screen integrated resistive touch screen;
Rugged all-aluminum structure with a wide range of applications;
Long life and high reliability. Fast response time, no tailing, no jitter;
Ultra-wide viewing angle, clear picture quality can be viewed from a large angle.
15" TFT LED
1024*768
300 cd/m2
1500:1
Resistive touch screen
1*USB 2.0 Touch interface
VGA
100~240V AC/50~60Hz (with adapter)/12V DC power input
8W (standby state)
| Display | |
| LCD Type | 15" TFT LED |
| Max. Resolution | 1024*768 |
| Luminance | 300 cd/m2 |
| Contrast Ratio | 1500:1 |
| Touchscreen Type | Resistive touch screen |
| USB | 1*USB 2.0 Touch interface |
| Video | VGA |
| Power Input | 100~240V AC/50~60Hz (with adapter)/12V DC power input |
| Power Consumption | 8W (standby state) |
| Environment | |
| Operating Temp. | -10℃～50℃ @ 5 ~ 85% RH. with airflow |
| Storage Temp. | -20℃ ～60℃ |
| Humidity | 95% @40℃, non-condensation |
| IP Rating | Front panel IP65（optional） |
| Shock Protection | acceleration 10G/11ms |
| Reliability | MTBF≥50000h; MTTR≤0.5h |
| Vibration Protection | 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration |
| Mechanical | |
| Dimension (W x H x D) | 380*300*40mm |
| Weight | 1.0 kg/2.1kg |
| Color | silver |
| Material | Aluminum alloy panel fanless design |

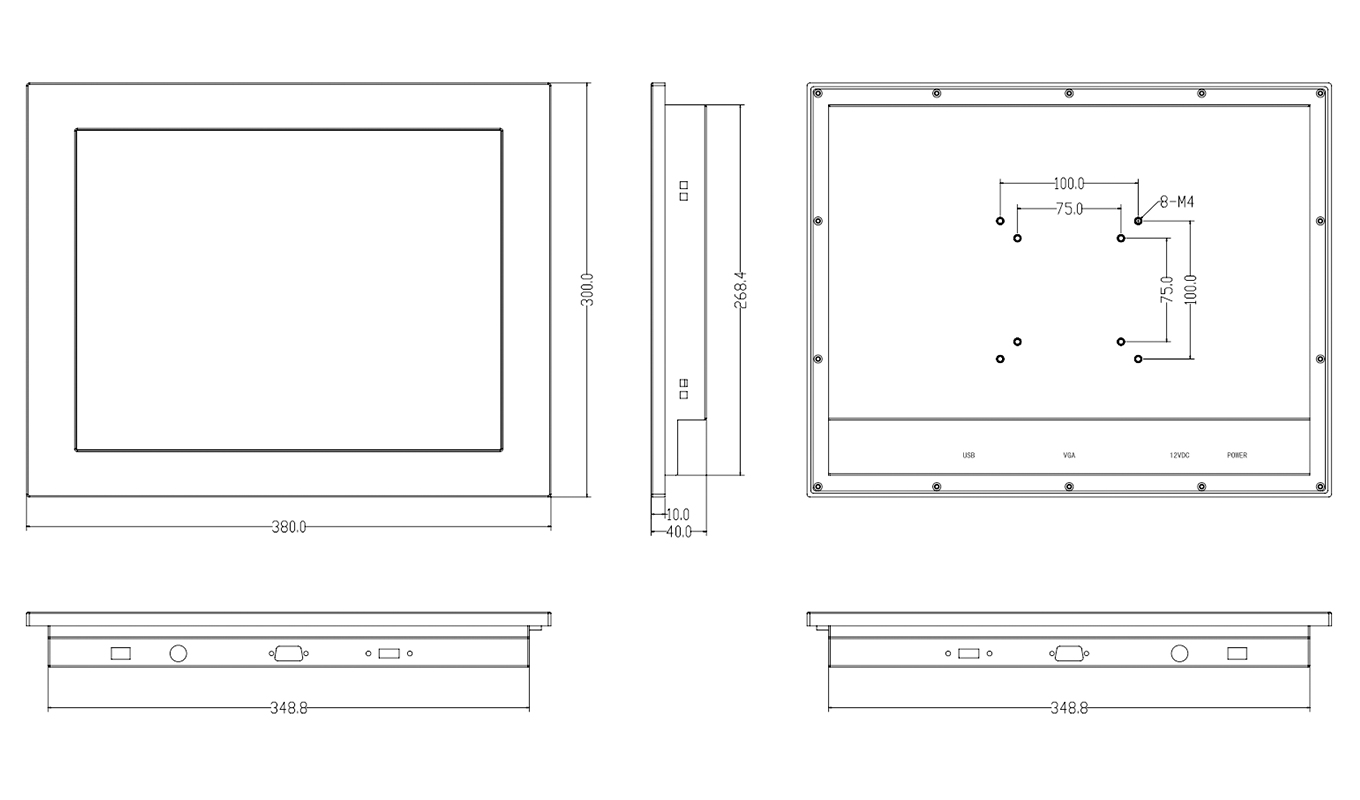

| Dimensions | |
