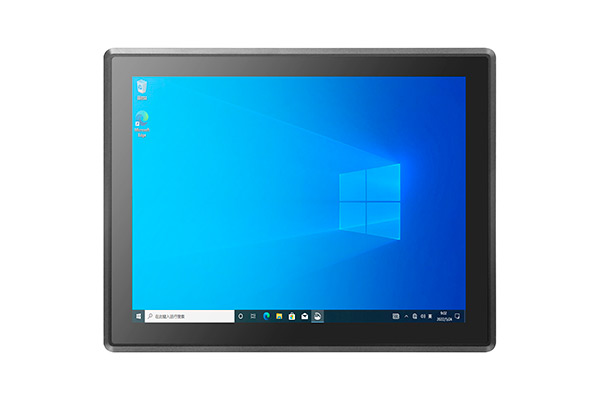

12.1" capacitive touch LCD display.
Resolution 1024*768.
1*VGA, 1*HD, 1*DVa.
1*Menu control button.
Display | |
LCD Type | 12.1" LCD screen |
Max. Resolution | 1024*768 |
Luminance | 350 cd/m2 |
Contrast Ratio | 1000:1 |
Display Ratio | 4:3 |
Touch Screen | |
Touchscreen Type | capacitive touch screen |
Light Transmission | ≥85% |
Hardness | ≥6H |

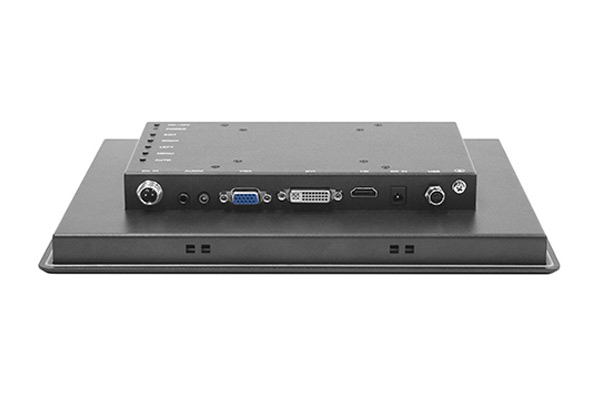

l/O Ports | |
VGA | 1*VGA |
HD | 1*HD |
DVI | 1*DVI |
Power Socket | DC power input (optional aviation plug) |
Headphone Jack | 1*line-out + 1mic-in |
Speaker | optional |
OSD Language | |
Menu Lanquaqe | Chinese, English, German, French, Italian, Korean, Portuguese |
Power | |
Power Input | 12V DC input (9-36V wide voltage module optional, standard 12/5A power adapter) |
Environment | |
Shock Protection | 5-19hz/1.0mm amplitude; 19-200hz/1.0g acceleration |
Vibration Protection | 10g acceleration, 11ms period |
Reliability | MTBF≥30000; H:MTTR≤0.5h |
Operating Temp. | -10℃ ~ 60℃ Surface air flow |
Storage Temp. | -20℃ ~ 70℃ |
Humidity | 95 % @40℃, no condensation |
IP Rating | Front panel IP65 |
Mechanical | |

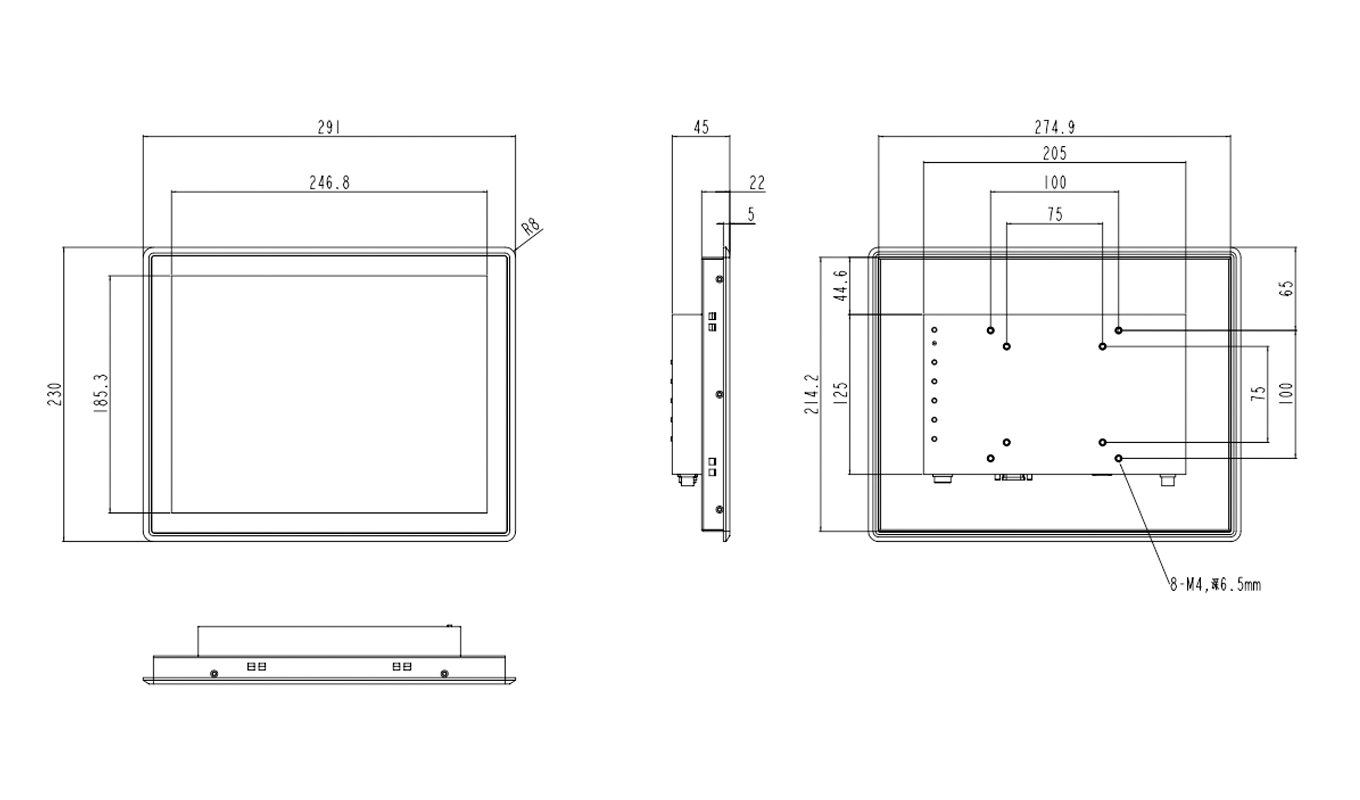

Dimension (WXHXD) | 291*230*45mm |
Weight | 2.11kg/3.4kg ( N.W./G.W.) |
Color | black |
Material | Aluminum alloy panel all metal design |
Dimensions | VESA installation: 100*100mm, 75*75mm Embedded installation: 274.9*214.2mm |
