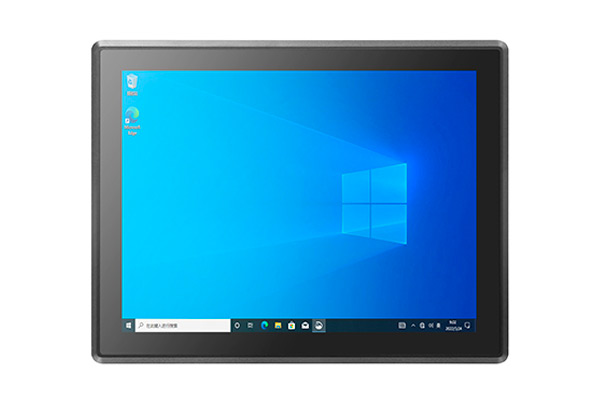

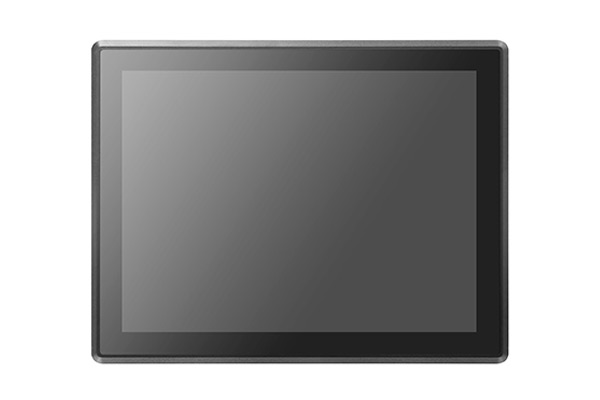

15 inch Capacitive Touch Industrial Monitor
15 inch Capacitive Touch Industrial Monitor
15 inch Capacitive Touch Industrial Monitor
15 inch Capacitive Touch Industrial Monitor

15 inch Capacitive Touch Industrial Monitor

PDS-GS1501T-SF

15" TFT LED LCD screen

Integrated capacitive touchscreen

Rugged all-aluminum construction for a wide range of applications

Long life and high reliability

Fast response time, no smear, no jitter

Ultra-wide viewing angle for clear picture quality at large angles

Get A Quote
Spec Download
Specification
Dimension

Specification of 15 inch Capacitive Touch Industrial Monitor

Display
LCD Type15" TFT LED
Resolution1024*768
Luminance350 cd/m2
Contrast Ratio1000: 1
Touchscreen Typecapacitive touch screen
Display InputVGA HD DVI
Power
Power Input100-240VAC/50-60HZ (with adapter)/12V DC input
l/O Ports
USBTouch screen interface
Environment
Shock Protection5-19hz/1.0mm amplitude; 19-200hz/1.0g acceleration
Vibration Protection10g acceleration, 11ms period
ReliabilityMTBF≥50000; H:MTTR≤0.5h
Operating Temp.-10℃ ~ 60℃
Storage Temp.-20℃ ~ 70℃
Humidity95 % @40℃, no condensation
IP RatingFront panel IP65 (optional)
Mechanical
Dimension (WXHXD)376*299.5*39mm
Weight1.0kg/2.1kg ( N.W./G.W.)
MountingAluminum alloy panel fanless design
Colorblack

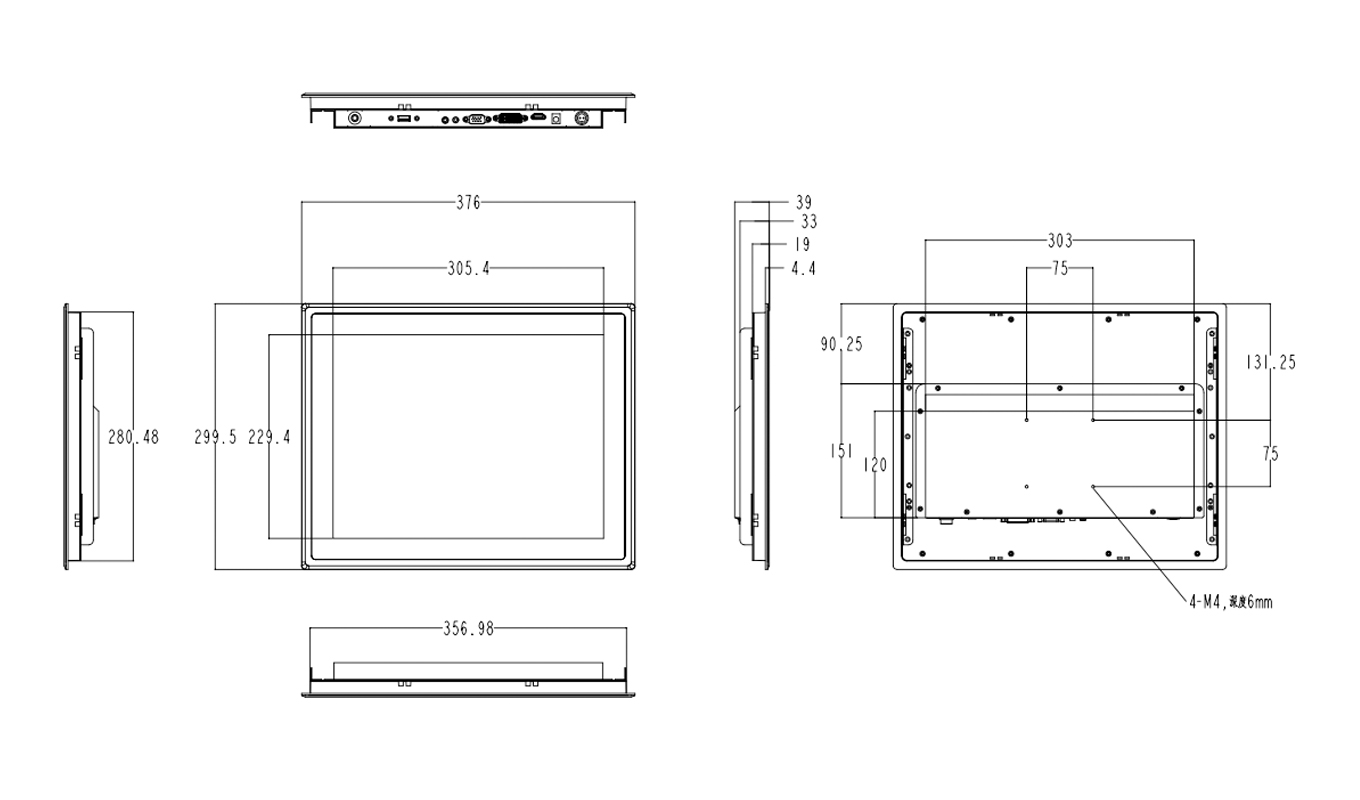

Dimension of 15 inch Capacitive Touch Industrial Monitor

Dimension of 15 inch Capacitive Touch Industrial Monitor
