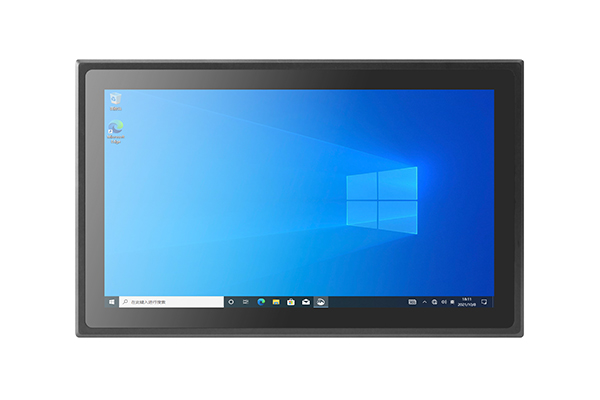

Geshem 18.5 Inch All In One Economy Touch Panel PC Overview

TY185

IP65 front panel optional;

Capacitive touch screen;

4G DDR3L RAM, Up to 8GB;

Rugged Industrial Design;

Extended Operating Temperature Range Available.


Get A Quote
Spec Download
Specification
Dimension
Accessories

Specification of 18.5 inch all in one Economy Touch Panel PC

System Hardware
CPUSupport intel J1900 processor
Chipset/
MemoryUp to 8GB
StorageUp to 512GB
Watchdog255 timer levels, setup by software
Display
LCD Type18.5" TFT-LCD
Max. Resolution1366*768
Luminance250 cd/m2
Viewing Angle170°(H)*160°(V)
Contrast Ratio1000:1
Backlight Life-Time30000 hr (min.)
Touchscreen
Touchscreen TypePCAP multi-touch
Light Transmission>78%
Hardness3H
OS
OSWindows 7, Windows 10, Linux
I/O Ports
USB5*USB 2.0 + 1*USB3.0 (Celeron J1900)
Serial port2*RS232 (1*RS422/RS485 optional)
LAN1* RJ45 Gigabit Ethernet (Intel I211-AT)
Audio1*Line-out, 1*Mic-in
Video1*HDMI, 1*VGA
GPIO4In/4Out (Occupy 1*COM, optional)
Expansion Slot1*Mini PCIe (Wifi/BT/3G/4G optional)
Power
Power Input9~24V DC Input (9~36V DC optional), 12V/5A power adapter
Power Consumption/
Environment
Operating Temp.-10℃~50℃, with airflow
Storage Temp.-20℃~60℃
Humidity95% @40℃, non-condensing
IP RatingFront panel IP65 (optional)
Shock Protectionacceleration 10G/11ms
Vibration Protection5-19Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration
Certificate
Certificate/
Mechanical
Dimension (W x H x D)473.1*295.3*56.2mm
Weight6.25kg
ColorBlack/Silver
MountingVESA mounting: 100*100mm
Panel mounting: 452.97*277.27mm
Dimensions

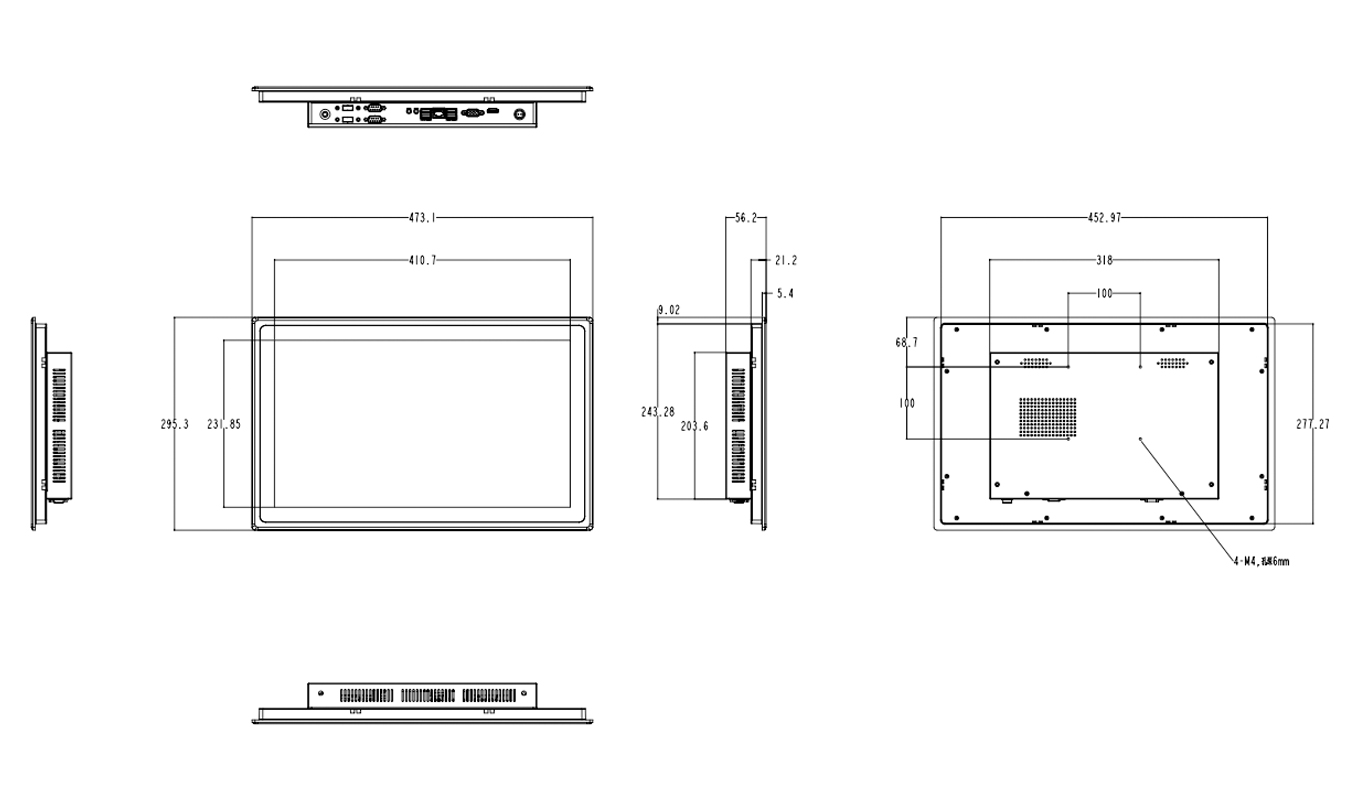

Dimension of 18.5 Inch All In One Economy Touch Panel PC

Dimension of 18.5 Inch All In One Economy Touch Panel PC

Accessories of 18.5 Inch All In One Economy Touch Panel PC

Packing List

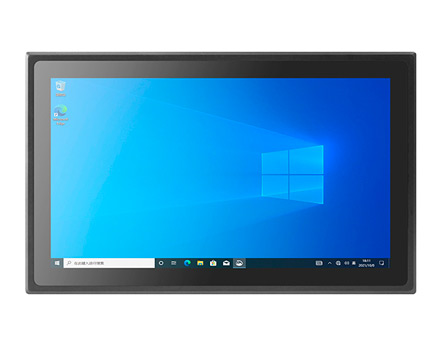

device of fanless industrial pc
device of fanless industrial pc

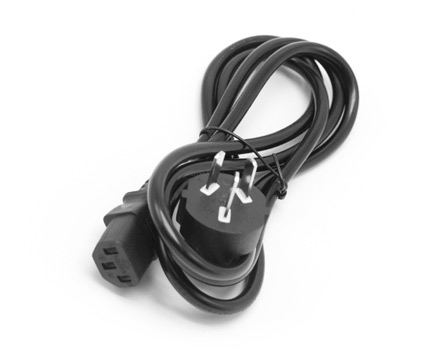

power supply of industrial embedded pc
power supply of industrial embedded pc

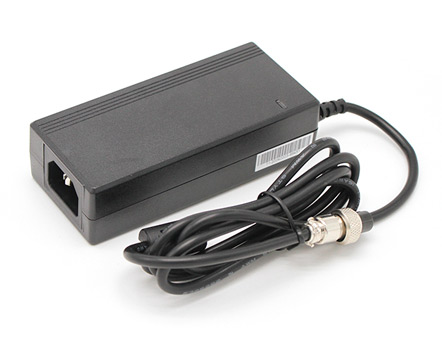

power adapter of industrial embedded computer
power adapter of industrial embedded computer
