10 Inch Core Windows Vehicle Mount Computer
10 Inch Core Windows Vehicle Mount Computer
10 Inch Core Windows Vehicle Mount Computer
10 Inch Core Windows Vehicle Mount Computer
10 Inch Core Windows Vehicle Mount Computer
10 Inch Core Windows Vehicle Mount Computer
10 Inch Core Windows Vehicle Mount Computer
10 Inch Core Windows Vehicle Mount Computer

10 Inch Core Windows Vehicle Mount Computer

PPC-GS1051TZ

Intel® Core™ 6th I5 low-power high-performance processor.

10.1 inch industrial grade display.

Five-wire resistive touch screen.

4GB DDR4 memory (8GB/16GB optional).

64G SSD (optional 128GB/256GB/512GB).

All aviation plug design interface.

2*USB2.0/2*RS232/1*LAN/1*DC in.

Sealed fanless dustproof design, front panel IP65.

Get A Quote
Spec Download
Benefits
Specification
Dimension

Benefits of 10 Inch Core Windows Vehicle Mount Computer

  • Vehicle Mount Computer

  • 2*RS232 interface, 1*7pin aviation plug

  • 2*USB2.0 interface, 1*8pin aviation plug

  • Support 100M LAN, 1*6pin aviation plug (optional gigabit LAN)

  • Optional 4G, WIFI/BT, GNSS, NFC/RFID/2D

  • Windows 7/8.1/10, Linux

Specification of 10 Inch Core Windows Vehicle Mount Computer

System Hardware
CPUIntel® Bay Trail J1900 Quad Core Processor
Memory4GB LPDDR3 (8GB optional)
Storage32G SSD (optional 64GB/128GB/256GB/512GB)
ButtonPanel with 1 switch button, 2 custom buttons (optional 6 custom buttons F1-F6)
Audio2*4Ω, 3w speaker
Display
LCD Type10.1 inch industrial grade display
TouchscreenFive-wire resistive touch screen
Max. Resoltuion1280*800
Luminance400 cd/m2
OS
OSWindows 7/8.1/10, Linux
I/O Interface
Serial port2*RS232 interface, 1 7pin aviation plug
SwitchSquare switch (on and off function of the whole machine)
USB2*USB2.0 interface, 1 8pin aviation plug
4Goptional
LANSupport 100M LAN, 1 6pin aviation plug
Communication
WIFI/BTDual-band WIFI, external antenna
GNSSoptional
Extended Functions
NFC/RFIDOptional NFC/HF-RFID/UHF-RFID, 3 choose 1
Barcode ScannerOptional 1D/2D barcode scanner, 2 choose 1
Power
Power Input9-36V DC input 1 3pin aviation plug
(with ITPS function, support ACC delay switch, the whole machine with 5A insert fuse)
Environment
IP RatingFront panel IP65
Operating Temp.-10℃~60℃ Surface air flow
Storage Temp.-20℃~70℃
Vibration Protection5-19Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration
Shock Protectionacceleration 10G/11ms
ReliabilityMTBF≥30000h; MTTR≤0.5h
Certificate
CertificateCE, RHOS
Mechanical
MaterialAll-metal aluminum alloy fanless design
Dimension (W x H x D)280*200*48mm
Weight2.6kg/3.1kg(N.W./G.W.)
ColorBlack
Optional Accessory
MountingVESA installation: 75*75mm, 100*100mm

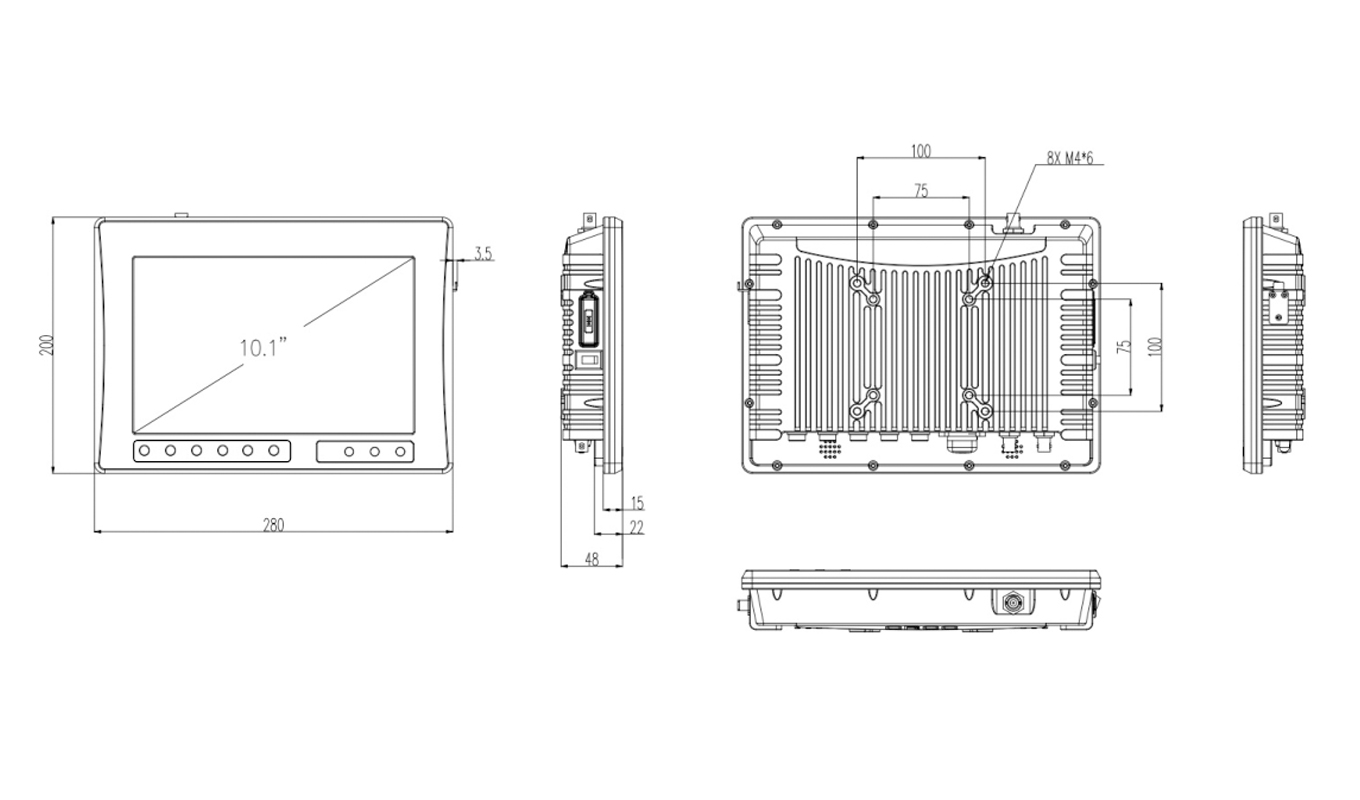

Dimension of 10 Inch Core Windows Vehicle Mount Computer

Dimension of 10 Inch Core Windows Vehicle Mount Computer
