10" Multi-Point capacitive touch screen;
12V DC Input, 12V power adapter;
Color: Black.
| System Hardware | |||
| CPU | RK3288/RK3399 SoC Cortex-A17 Quad Core @ 1.8GHz Max. | Memory | 2GB EMMC (4GB EMMC optional ) |
| Storage | 8GB NAND Flash | ||
| Display | |||
| LCD Type | 9.7" TFT-LCD | Viewing Angle | 170°(H)*170°(V) |
| Max. Resolution | 1280*800 | Contrast Ratio | 800: 1 |
| Luminance | 350 cd/m2 | Backlight Life-Time | 25000 hr (min.) |
| Touchscreen | |||
| Touchscreen Type | Multi-touch projected capacitive | Hardness | 6H |
| Light Transmission | ＞85% | ||
| OS | |||
| OS | Android 5.1.1 | ||

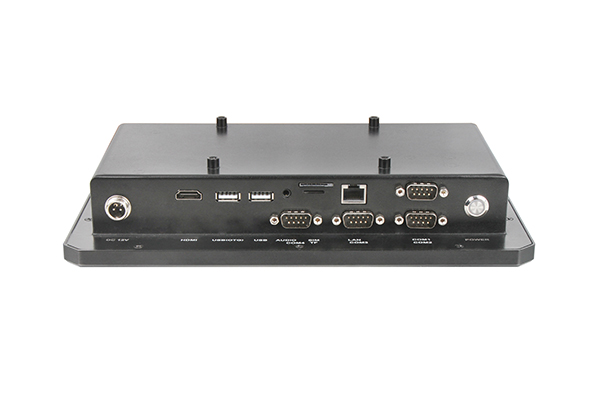

| I/O Ports | |||
| USB | 2*USB 2.0 | Video | 1*HD |
| Serial port | 2*RS232 (1*RS422/RS485 optional) | Expansion Slot | 1*Mini PCIe (3G/4G optional) |
| LAN | 1* RJ45 Gigabit Ethernet | 1*SIM card slot | |
| Audio | 1*Line-in/out | 1*TF card slot, up to 64GB | |
| Power | |||

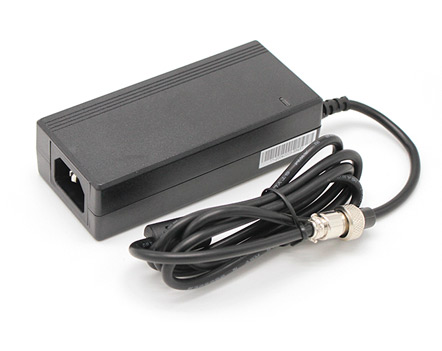

| Power Input | 12V DC Input, 12V power adapter | ||
| Environment | |||
| Operating Temp. | -10℃～50℃, with airflow | Shock Protection | acceleration 10G/11ms |
| Storage Temp. | -20℃～60℃ | Vibration Protection | 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration |
| Humidity | 95% @40℃, non-condensing | ||
| IP Rating | Front panel IP65 | ||
| Mechanical | |||

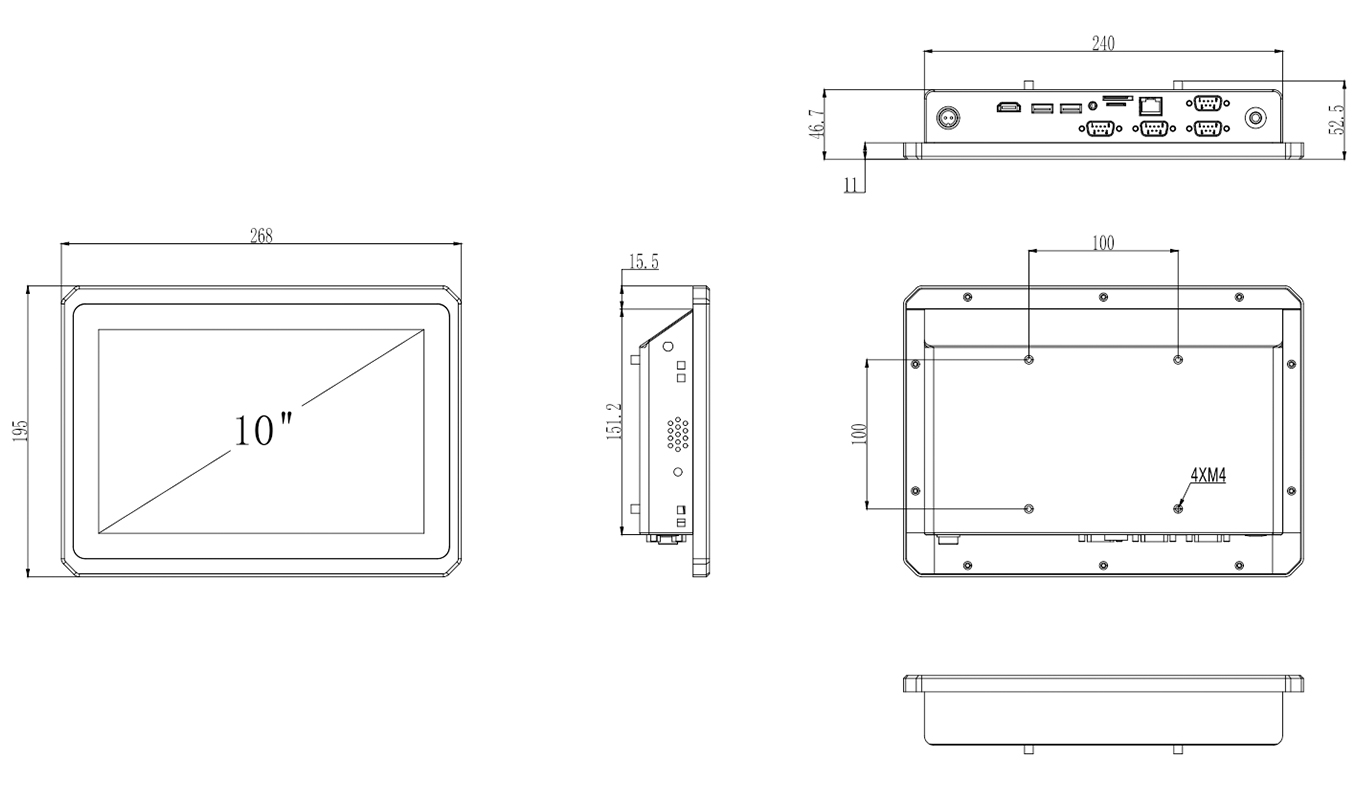

| Dimension (WxHxD) | 268*195*52.5mm | Mounting | VESA mounting: 100*100mm |
| Weight | 1.43kg | Panel mounting: 243*155mm | |
| Color | Black | ||
