Intel® Core™ 6th I3/I5/I7 processor.

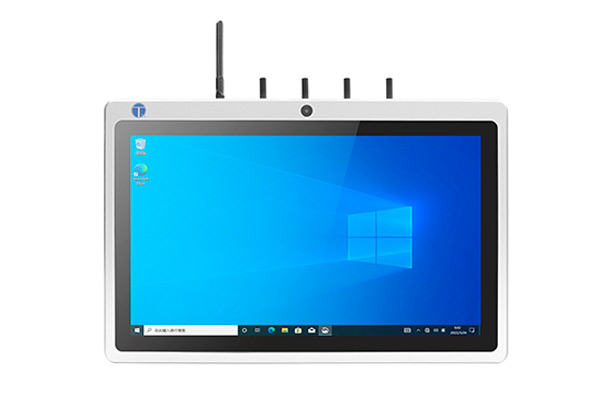

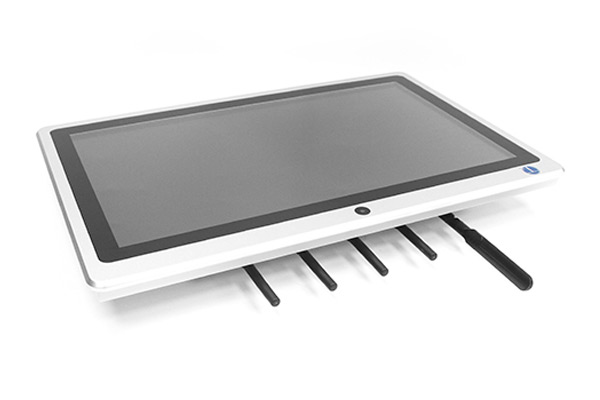

21.5" industrial-grade display, 10-point capacitive touch screen.
Standard 4GB DDR4 memory, maximum support 16GB.
4*USB, 4*COM, 1*HD, 1*VGA.
1* RJ45 Gigabit network interface.
Support front camera, NFC, 5G communication, dual-band WIFI.
Optional 9-36V DC wide voltage input.
Support netcom 5G communication, with SIM card
4*RS232 (optional 1~2*RS485)
2*USB3.0, 2*USB2.0
1* RJ45 Gigabit network interface
1*HD, 1*VGA,1*GPIO (4 channels) (optional), 1*Mini
PCIe (dual-band Wifi, with 1 external antenna)
Support front 200W camera
Optional 4G, WIFI/BT, GNSS, NFC/RFID/2D
Windows7/8.1/10, Linux, Ubuntu
System Hardware | |
CPU | Intel® Core™ 6th I3/I5/I7 processor |
Memory | 4GB DDR4 RAM, up to 16GB |
Storage | MSATA: 64GB, up to 512GB |
Display | |
Audio | 1*Line-out, 1*Mic-in |
LCD Type | 21.5″ LCD |
Touchscreen | capacitive touch screen |
Max. Resoltuion | 1920*1080 |
Luminance | 250 cd/m2 |
OS | |
OS | Windows7/8.1/10, Linux, Ubuntu |

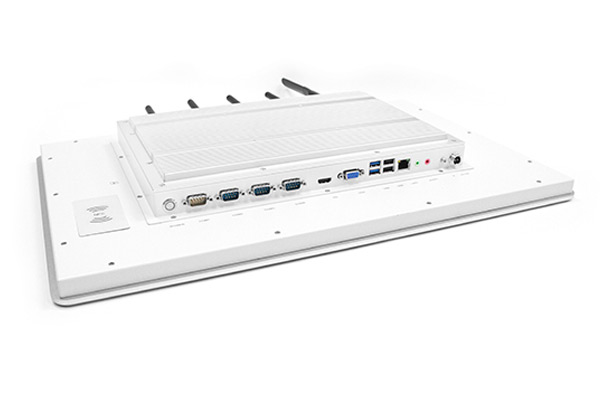

I/O Interface | |
USB | 2*USB3.0, 2*USB2.0 |
Serial port | 4*RS232 (optional 1~2*RS485) |
LAN | 1* RJ45 Gigabit network interface |
Audio | 1*Line-out+1*Mic-in |
Video | 1*HD, 1*VGA |
GPIO | 1*GPIO (4 channels) (optional) |
Expand | 1*Mini PCIe (dual-band Wifi, with 1 external antenna) |
Camera | Support front 200W camera |

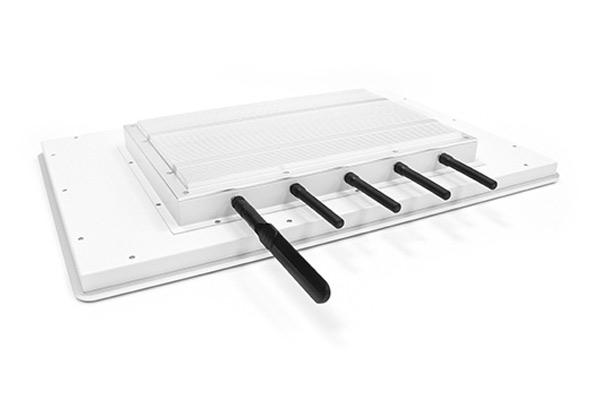

SIM Card | 1* External SIM card holder (support 5G communication, with 4 external antennas) |
Communication | |
WIFI/BT | 5G communication, dual-band WIFI |
GNSS | optional |
Extended Functions | |
NFC/RFID | Support |
Barcode Scanner | Optional 1D/2D barcode scanner, 2 choose 1 |
Power | |
Power Input | Optional 9~36V wide voltage input, standard 12V/5A power adapter |
Environment | |
Operating Temp. | -10℃~60℃, without air flow |
Storage Temp. | -20℃~70℃ |
Humidity | 95% @40℃, non-condensing |
IP Rating | Front panel IP65 |
Reliability | MTBF≥30000h; MTTR≤0.5h |
Shock Protection | 10G/11ms |
Vibration Protection | 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration |
Certificate | |
Certificate | CE, RHOS |
Mechanical | |
Material | Aluminum alloy panel all metal fanless design |

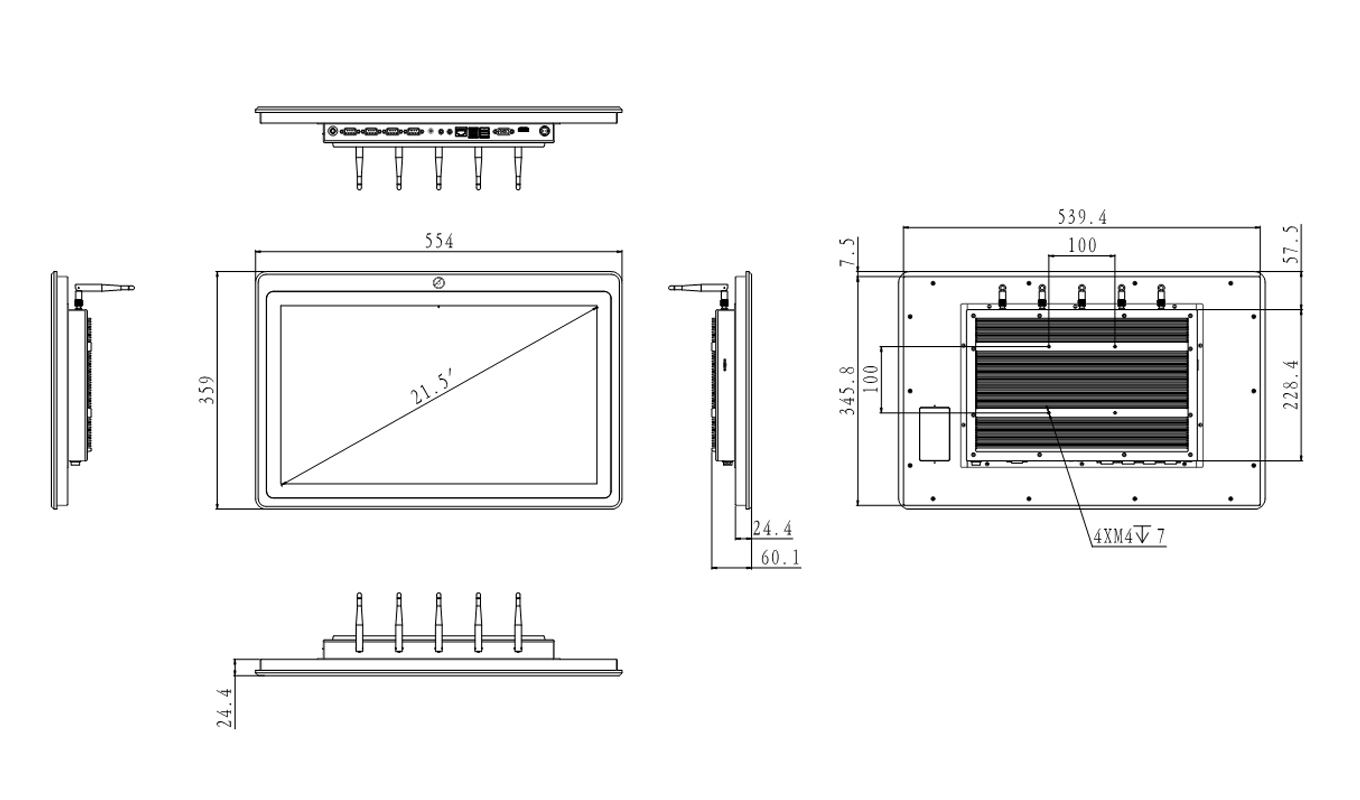

Dimension (W x H x D) | 554*359*60.1mm |
Weight | 7.2kg/8.0kg(N.W./G.W.) |
Color | Silver |
Optional Accessory | |
Mounting | VESA installation: 100*100 mm, M5 screw |
